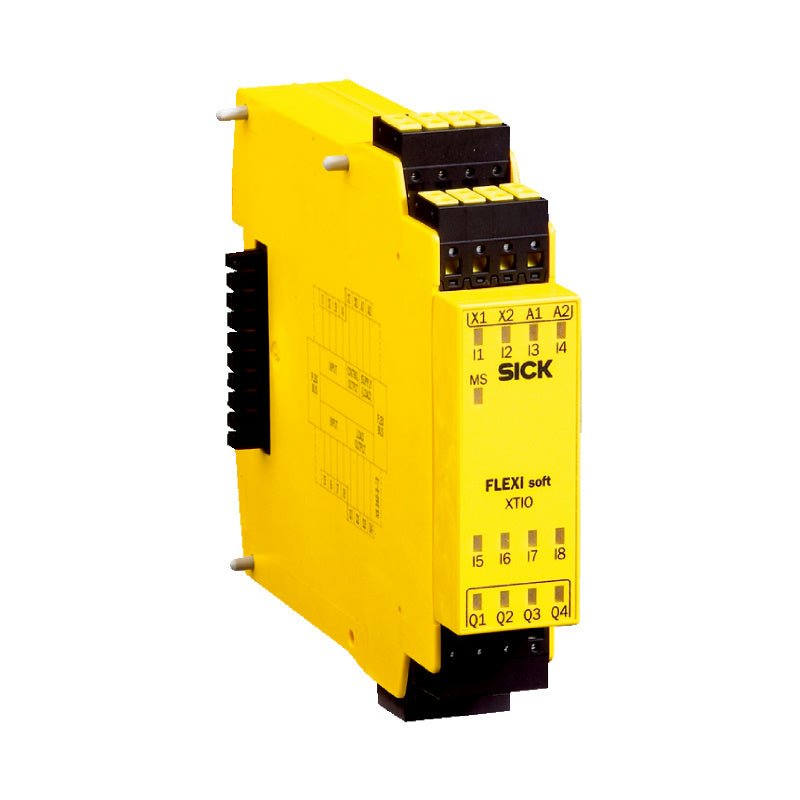

SICK FX3-XTIO84002 1044125 Flexi Soft Safety I/O Module 8IN/4OUT PL e

SICK FX3-XTIO84002 is an I/O extension module for the Flexi Soft modular safety controller system. It provides 8 safe inputs and 4 safe PNP semiconductor outputs with cross-circuit monitoring, short-circuit protection, and 2 test outputs. Configured via Flexi Soft Designer software, it expands the safety I/O capacity of a Flexi Soft system without additional programming or licensing overhead. Suitable for scalable safety applications in industrial automation and material handling.

Applications:

• Safety I/O expansion for Flexi Soft main modules in automated guided vehicles (AGVs) and autonomous mobile robots (AMRs)

• Emergency stop and guard door monitoring circuits

• Muting and light curtain integration in packaging and logistics machinery

• Safety function expansion in robotic cells and assembly lines

• Adaptive safety systems with software‑configurable I/O

Core Specifications:

• Module type: I/O expansion module for Flexi Soft system

• Safety inputs: 8

• Test outputs: 2

• Safety outputs: 4 (PNP semiconductors, short-circuit protected, cross-circuit monitored)

• Configuration software: Flexi Soft Designer / Safety Designer

• Supply voltage: 24 V DC (16.8 V … 30 V DC, PELV or SELV)

• Power consumption: ≤ 2.2 W via FLEXBUS+

• Supply current limiting: external current limited to max. 4 A

• PFHD: 4.8 × 10⁻⁹ (single‑channel), 0.9 × 10⁻⁹ (dual‑channel)

• Mission time (TM): 20 years

• Fast shut-off time: 8 ms or 9 ms (configuration‑dependent)

• Operating temperature: –25 °C … +55 °C

• Storage temperature: –25 °C … +70 °C

• Dimensions (W × H × D): 22.5 mm × 96.5 mm × 120.6 mm

• Weight: 164 g

• Connection type: plug‑in spring terminals

Advanced Specifications:
Electrical protection: reverse polarity, short‑circuit (outputs), cross‑circuit (outputs)
EMC: EN 61000‑6‑2, EN 55011, EN 61131‑2 (zone B)
Vibration resistance: 5 Hz … 500 Hz according to EN 61131‑2
Shock resistance: according to EN 60068‑2‑27
Enclosure rating: housing IP40 (EN 60529); terminals IP20 (EN 60529)
Air humidity: ≤ 95 %, non‑condensing
Voltage supply: via FLEXBUS+ internal bus
Input voltage HIGH: 13 V DC … 30 V DC
Input voltage LOW: –5 V DC … 5 V DC
Input current HIGH: 2.4 mA … 3.8 mA
Output current safety outputs: ≤ 2 A
Output voltage HIGH safety outputs: 16 V DC … 30 V DC
Test pulse output voltage HIGH: 15 V DC … 30 V DC
Test pulse output current: ≤ 120 mA (per module up to 8 testable safety series max 30 mA each)

Safety Ratings:

• Safety integrity level: SIL3 (IEC 61508), SILCL3 (IEC 62061)

• Performance level: PL e (EN ISO 13849‑1)

• Category: Category 4 (EN ISO 13849)

System Integration:

• This module is part of the SICK Flexi Soft safety controller platform.

• A Flexi Soft system requires a main module (e.g., FX3‑CPU000000, FX3‑CPU130002) and a system plug (FX3‑MPL000001) for configuration storage.

• Up to 12 expansion modules can be added to a single Flexi Soft station, increasing the system's I/O capacity.

• Configuration is performed offline using Flexi Soft Designer software.

• The module supports Flexi Loop technology, enabling safe series connection of sensors up to 2 A, with test pulses for diagnostics and easy maintenance.

• The I/O module communicates with the main CPU module via the internal FLEX BUS+, which distributes power, diagnostic data, and safety control signals.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• FX3‑CPU000000 – Flexi Soft main module (basic CPU)

• FX3‑CPU130002 – Flexi Soft main module with enhanced diagnostics and EFI ports

• FX3‑MPL000001 – System plug for configuration memory storage

• FX3‑FLB000001 – Flexi Loop termination module for safe sensor series connection

• FX3‑XTDI80002 – Input expansion module (8 safe inputs)

• FX3‑USB232001 – USB‑to‑RS232 programming cable for configuration
