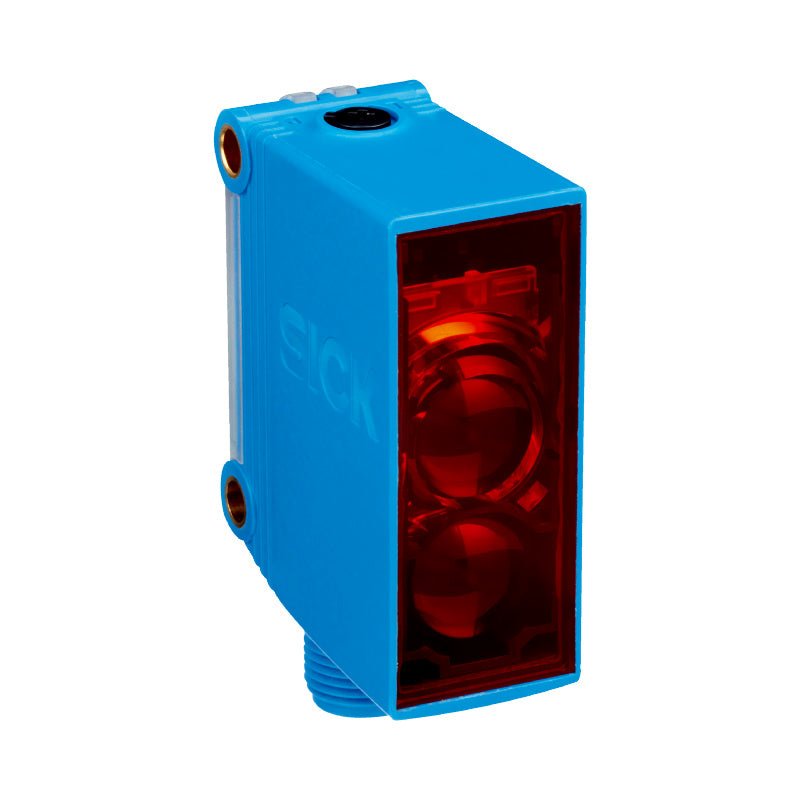

SICK GL10-P4112 1065879 G10 Retro-reflective Photoelectric Sensor PNP 15m

SICK GL10-P4112 is a compact retro-reflective photoelectric sensor from the G10 series. It uses a dual‑lens optical system with an integrated polarising filter for reliable detection of glossy, transparent and brightly coloured objects. The visible red PinPoint LED light source produces a bright and precise light spot (Ø 58 mm at 5 m), simplifying alignment and optimising detection performance. Maximum sensing range 15 m (reflector PL80A). PNP output with selectable light/dark switching. Rectangular IP67 housing, M12 4‑pin male connector. Supplied with mounting bracket BEF‑G10DC01 and reflector P250. Suitable for material handling, packaging machinery, logistics and factory automation.

Applications:

• Conveyor object presence and position detection in material handling and logistics

• Packaging machinery for container, bottle and transparent object monitoring

• High‑speed assembly line part counting and positioning

• Transparent film and glossy surface detection in automation systems

• General factory automation requiring reliable detection up to 15 m

Core Specifications:

• Functional principle: Photoelectric retro-reflective sensor, dual‑lens system with polarising filter

• Sensing range max.: 0.08 m … 15 m (with PL80A reflector), 0.08 m … 12 m (with P250 reflector)

• Sensing range: 0.15 m … 12 m (with PL80A reflector), 0.15 m … 10 m (with P250 reflector)

• Light source: PinPoint LED, visible red light, λ = 625 nm

• Light spot size: Ø 58 mm (at 5 m)

• Supply voltage: 10 V DC … 30 V DC

• No‑load current consumption: ≤ 20 mA

• Switching output: PNP

• Switching mode: Light/dark switching (selectable via L/D selector)

• Output current Imax.: ≤ 100 mA

• Response time: ≤ 500 µs

• Switching frequency: 1,000 Hz

• Connection type: M12 male connector, 4‑pin

• Adjustment: No adjustment (fixed sensitivity)

• Enclosure rating: IP67

• Dimensions (W × H × D): 20 mm × 50 mm × 39 mm

• Housing design: Rectangular

• Housing material: Plastic, ABS/PMMA

• Weight: 35 g

• Polarising filter: ✔

Advanced Specifications:

• Ambient operating temperature: –30 °C … +60 °C

• Storage temperature: –40 °C … +70 °C

• Circuit protection: A (VS reverse‑polarity), B (inputs/output reverse‑polarity), C (interference suppression), D (output overcurrent and short‑circuit protection)

• Protection class: III

• UL File No.: NRKH.E348498 & NRKH7.E348498

• Complies with UL325 standard when used with protective hood BEF‑G10WSG (2071960)

• MTTF D: 1,975 years

• Items supplied: Mounting bracket BEF‑G10DC01, Reflector P250

• RoHS compliant

System Integration:

• This sensor belongs to the SICK G10 series of compact photoelectric sensors.

• A separate reflector is required for operation; PL80A recommended for maximum sensing range of 15 m.

• Mount via through‑holes (metal‑reinforced) using the supplied BEF‑G10DC01 bracket, or use the Q‑Lock assembly system for fast mounting and alignment.

• M12 4‑pin male connector mates with standard industrial M12 female cables (e.g. YF2A14‑020VB3XLEAX, 2 m, straight, PVC).

• Select light‑on or dark‑on switching mode via the L/D selector on the sensor.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• PL80A (1003865) – Fine triple reflector for max. 15 m sensing range

• P250 (5304812) – 47×47 mm rectangular reflector for standard applications (included)

• GL10‑P1211 – 3‑wire DC PNP, 2 m cable version

• GL10‑N4211 – NPN output version

• YF2A14‑020VB3XLEAX (2096234) – M12 straight female connector cable, 4‑pin, 2 m, PVC

• YG2A14‑050VB3XLEAX (2095897) – M12 angled female connector cable, 4‑pin, 5 m, PVC

• BEF‑G10WSG (2071960) – Protective hood for UL325 compliance
