GL6-P4112 Retro-Reflective Sensor PNP 6m M8 | SICK

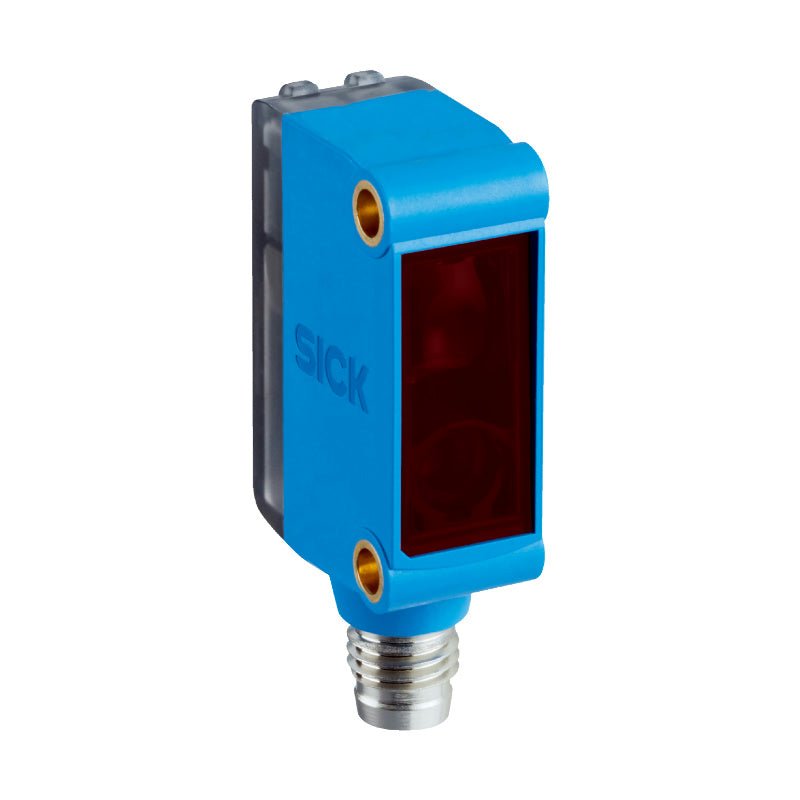

The Original New SICK GL6-P4112 (1051777) is a miniature photoelectric retro-reflective sensor from the G6 series, designed for reliable object detection in space-constrained industrial automation. Its dual-lens optical system with minimum distance to the reflector and integrated polarising filter enables stable detection of glossy and transparent objects, while the visible red PinPoint LED produces a sharply defined Ø 8 mm light spot at 350 mm for precise alignment. Maximum sensing range reaches 6 m with reflector PL80A (5 m rated). Housed in a compact 12 × 31.5 × 21 mm ABS/PC enclosure rated IP67, the sensor provides a PNP output with selectable light/dark switching and connects via an M8 4-pin male connector. A P250 reflector and stainless steel mounting bracket (BEF-W100-A) are included.

Core Engineering Highlights:
Dual-lens retro-reflective sensor with polarising filter | 0.03–6 m max range (PL80A) / 0.07–5 m rated | PNP output, light/dark switching selectable | PinPoint LED, 650 nm visible red light | Ø 8 mm light spot at 350 mm | < 625 µs response time / 1,000 Hz switching frequency | 10–30 V DC supply voltage | IP67 enclosure rating | M8 4-pin male connector | 12 × 31.5 × 21 mm miniature housing | –25°C to +55°C operating temperature

Key Features:

• Original New SICK GL6-P4112 sensor (part no. 1051777)

• Photoelectric retro-reflective sensor with dual-lens system and minimum distance to reflector

• Integrated polarising filter for reliable detection of shiny and transparent objects

• Visible red PinPoint LED (650 nm) with Ø 8 mm light spot at 350 mm

• PNP output with selectable light-on/dark-on switching via L/D selector

• No adjustment required (fixed sensitivity), simplifying commissioning

• Compact rectangular 12 mm width for high-density installations

• ABS/PC plastic housing with PMMA optics and IP67 protection

• M8 4-pin male connector for standard industrial connectivity

• Supplied with P250 reflector and BEF-W100-A stainless steel mounting bracket

Applications:

• Conveyor object presence and position detection in material handling

• Packaging machinery for container, bottle, and transparent object monitoring

• High-speed assembly line part counting and positioning

• Transparent film and glossy surface detection

• General factory automation requiring reliable detection up to 6 m

Technical Specifications:

Footnotes:
¹ Reflector PL80A. ² Average service life: 100,000 h at TU = +25°C. ³ Limit values, operation in short-circuit protected network: max. 8 A. ⁴ May not exceed or fall short of UV tolerances. ⁵ Without load. ⁶ At UV > 24 V, IA max. = 50 mA. ⁷ Signal transit time with resistive load. ⁸ With light/dark ratio 1:1. ⁹ A = VS connections reverse-polarity protected. ¹⁰ B = inputs and output reverse-polarity protected. ¹¹ D = outputs overcurrent and short-circuit protected. ¹² Temperature stability after adjustment ±10°C.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M8 4-pin male connector mates with standard M8 female cordsets.

• Requires a reflector for operation; P250 included, PL80A recommended for maximum 6 m range.

• Configuration is fixed; no software or potentiometer adjustment required.

• Mount via through-holes (metal-reinforced) using the supplied BEF-W100-A bracket.

Related Products:

• PL80A – Fine triple reflector for maximum 6 m sensing range

• P250 – 47 × 47 mm rectangular reflector (included)

• BEF-W100-A – Stainless steel mounting bracket (included)

• GL6-P4211 – Same G6 series, 6 m range with teach-in button

• GL6-N4112 – NPN output variant, same sensing range

• GL6-P1212 – Cable connection version, 2 m

• YF8U14-020VB3XLEAX – M8 straight female cordset, 4-pin, 2 m, PVC
