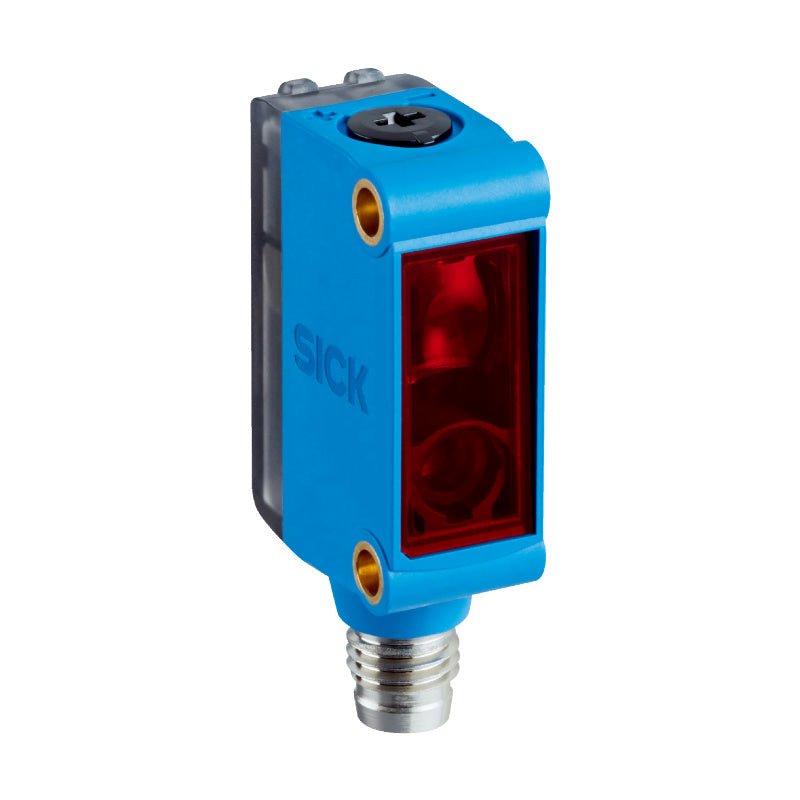

SICK GL6-P4211 1059241 Photoelectric Retro-reflective Sensor PNP 6m M8

SICK GL6-P4211 is a miniature retro-reflective photoelectric sensor with dual‑lens system and polarising filter for reliable detection of glossy, transparent or brightly coloured objects. PinPoint LED technology with visible red light ensures a precise, bright light spot. The compact housing (12 mm wide) has two reinforced metal‑lined mounting holes for secure installation. Detection depends on the reflector used (operate within 0.03 m … 6 m with PL80A reflector; sensor head is not large enough to safely run timing measurements beyond 6 m). A PNP output with selectable light/dark switching and a 270° potentiometer enable fast set‑up. IP67 protection rating makes it suitable for material handling, packaging and high‑speed assembly.

Applications:

• Conveyor object presence and position detection in material handling and logistics

• Packaging machinery for container, bottle and product control

• High‑speed automated assembly lines (up to 1,000 Hz)

• Detection of transparent objects (glass, plastic bottles, films)

Core Specifications:

• Sensor principle: Photoelectric retro-reflective, dual‑lens system

• Polarising filter: ✔

• Sensing range: ≤ 6 m (with PL80A reflector), ≤ 5 m typical

• Light source: PinPoint LED (visible red light), λ = 650 nm

• Light spot size (distance): Ø 8 mm at 350 mm

• Supply voltage: 10 V DC … 30 V DC (residual ripple ≤ ±10 %)

• Protection class: III

• Switching output: PNP

• Switching mode: Light/dark switching (selectable via L/D selector)

• Output current I_max.: ≤ 100 mA (≤ 50 mA at U_B > 24 V)

• Response time: < 625 µs

• Switching frequency: 1,000 Hz (light/dark ratio 1:1)

• Adjustment: Potentiometer, 270°

• Connection type: M8 male connector, 4‑pin

• Housing material: Plastic (ABS/PC)

• Front screen material: Plastic (PMMA)

• Enclosure rating: IP67

• Dimensions (W × H × D): 12 mm × 31.5 mm × 21 mm

• Weight: 20 g

Advanced Specifications:

• Ambient operating temperature: –25 °C … +55 °C

• Ambient storage temperature: –40 °C … +70 °C

• MTTF D: 1,705 years

• Average LED service life: 100,000 h at T = +25 °C

• Circuit protection: A (V_S reverse‑polarity), B (inputs/output reverse‑polarity), D (overcurrent and short‑circuit)

• UL File No.: NRKH.E348498 & NRKH7.E348498

• RoHS compliant

System Integration:

• Belongs to SICK G6 series of miniature photoelectric sensors.

• A required reflector (e.g. PL80A for max. range, P250 for standard applications) is not included.

• Mounts via through‑holes (reinforced with metal, spacing 1 inch / 25.4 mm) using the supplied mounting nuts, or use the optional BEF‑WN‑G6 bracket.

• M8 4‑pin male connector mates with standard M8 female cables (e.g. DOL‑0804‑G02M, 2 m, straight).

• Adjust sensing threshold by turning the 270° potentiometer; select light‑on or dark‑on mode via the L/D selector on the sensor.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• PL80A (1003865) – Fine triple reflector for max. 6 m range (required for full performance)

• P250 (5304812) – 47 × 47 mm rectangular reflector for standard applications

• DOL-0804-G02M – M8 straight female connector cable, 4‑pin, 2 m, PVC (for sensor connection)

• BEF‑WN‑G6 – Mounting bracket for flexible sensor positioning

• Alternative model: GL6L‑P4211 (1105822) – Laser version for longer range (0.08 … 12 m)

• Alternative model: GL6G‑P4211 (1059632) – Enhanced detection of transparent objects
