SICK GRL18S-F2336 1059533 Retro‑reflective Photoelectric Sensor PNP 7.2m IP67

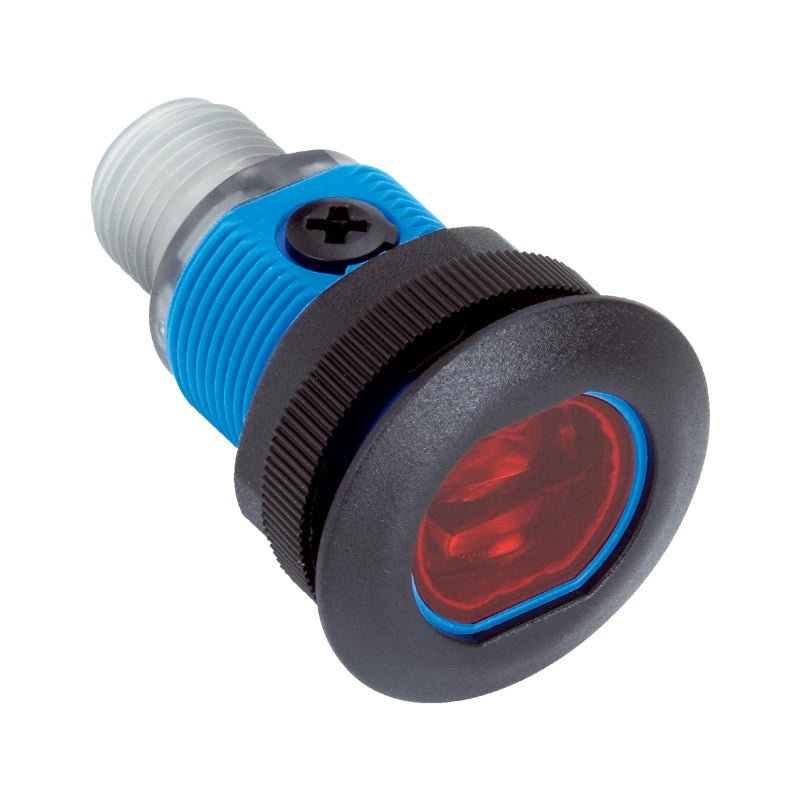

SICK GRL18S‑F2336 (1059533) is a compact retro-reflective photoelectric sensor from the GR18S series with an extra‑short M18×1 plastic housing and axial beam exit. Utilises a visible red PinPoint LED (650 nm) and dual‑lens optical system with integrated polarising filter for reliable detection of shiny, transparent or brightly coloured objects. Powered by 10 … 30 V DC, the sensor provides a PNP switching output (dark‑switching, selectable light/dark) with ≤100 mA output current, response time <500 µs and switching frequency up to 1,000 Hz. Rated IP67 for dust‑tight and water‑resistant operation. Suitable for packaging machinery, conveyor systems, material handling and general factory automation.

Applications:

• Conveyor object presence and position detection in material handling

• Packaging machinery for container, bottle and transparent object detection

• Automated assembly lines for part counting and positioning

• Logistics and warehouse automation systems

• Palletising and sorting equipment

Core Specifications:

• Functional principle: Photoelectric retro‑reflective sensor, dual‑lens system with minimum distance to reflector

• Sensing range max.: 0.03 m … 7.2 m (with PL80A reflector)

• Sensing range: 0.06 m … 6 m

• Light source: PinPoint LED, visible red light (λ = 650 nm)

• Light spot size: Ø 175 mm at 7 m

• Polarising filter: integrated

• Supply voltage: 10 V DC … 30 V DC (ripple <5 Vpp)

• No‑load current consumption: ≤30 mA

• Switching output: PNP

• Switching mode: Dark switching (light/dark‑selectable via wiring)

• Output current Imax.: ≤100 mA (at Uv≤24 V, Ta≤49 °C)

• Response time: <500 µs

• Switching frequency: 1,000 Hz

• Circuit protection: A (VS reverse‑polarity protected), B (inputs/output reverse‑polarity protected), D (overcurrent and short‑circuit protected)

• Protection class: III

Advanced Specifications:

• Adjustment: none (fixed sensitivity)

• Connection type: M12 male connector, 3‑pin

• Housing material: Plastic, ABS

• Optics material: Plastic, PMMA

• Enclosure rating: IP67 (IEC 60529)

• Thread diameter: M18 × 1

• Dimensions (W × H × D): 18 mm × 18 mm × 38.1 mm

• Weight: approx. 17 g

• Items supplied: fastening nuts (2×)

• Ambient operating temperature: –25 °C … +55 °C (at Uv≤24 V and IA<50 mA)

• Storage temperature: –40 °C … +75 °C

• UL File No.: NRKH.E348498 & NRKH7.E348498

• RoHS compliant

System Integration:

• Belongs to SICK GR18S series of cylindrical photoelectric sensors. Mounts via M18×1 thread using supplied nuts.

• Requires a separate retro‑reflector (e.g. PL80A for max. range, P250 for standard applications) – not included.

• Wire the M12 3‑pin male connector (pin 1: V+, pin 3: V‑, pin 4: output) to a PNP PLC input; dark‑switching operation is standard, light‑switching selectable.

• Fixed sensitivity (no adjustment) – ready for immediate use.

Standards & Compliance:
CE certified, cULus recognized, RoHS compliant. For detailed certification and compliance information, refer to manufacturer official documentation.

Related Products:

• PL80A (1003865) – fine triple reflector for max. 7.2 m sensing range

• P250 (5304812) – 47×47 mm rectangular reflector for standard applications

• PL40A (1012720) – 40×60 mm rectangular reflector for space‑saving installations

• YF2A14‑xxxVB3XLEAX – M12 straight female connector cable, 4‑pin, various lengths (2 m, 5 m, 10 m)

• YG2A14‑xxxVB3XLEAX – M12 angled female connector cable, 4‑pin, various lengths
