GRL18S-P2336 Retro-Reflective Sensor M18 PNP 7.2m | SICK

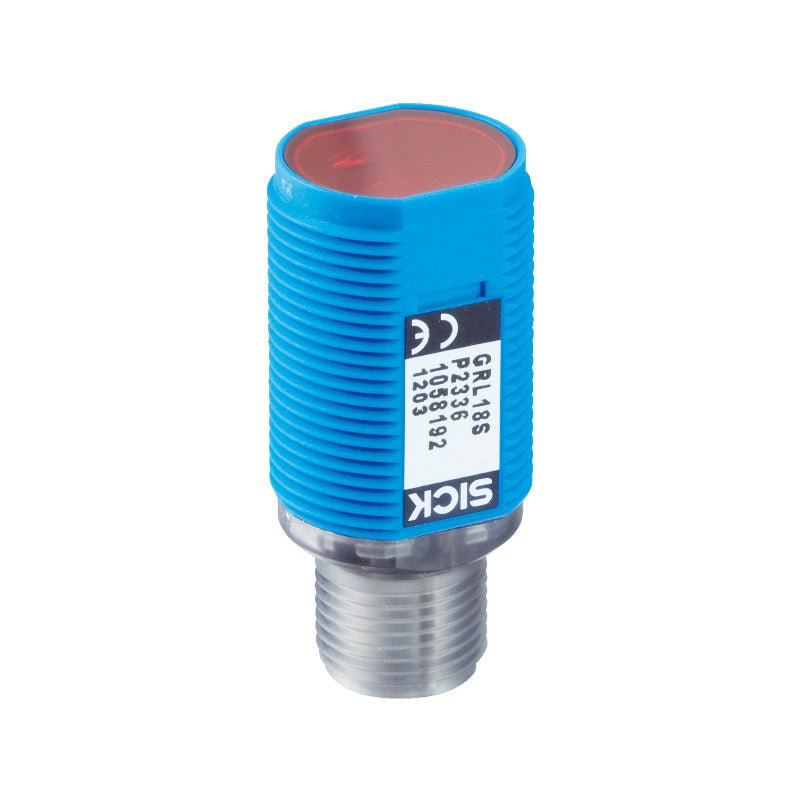

The Original New SICK GRL18S-P2336 (1058192) is a cylindrical photoelectric retro-reflective sensor from the GR18S series, designed for reliable object detection in industrial automation. Its axial optical axis and dual-lens system enable stable detection across a maximum sensing range of 0.03 m to 7.2 m (0.06 m to 6 m rated), with a visible red PinPoint LED producing a Ø 175 mm light spot at 7 m for straightforward alignment. Housed in a short M18 × 1 plastic barrel rated IP67, the sensor provides a PNP light-switching output and connects via an M12 3-pin connector. Two fastening nuts are included for immediate installation.

Core Engineering Highlights:
Photoelectric retro-reflective sensor (dual-lens system) | 0.03–7.2 m maximum sensing range / 0.06–6 m rated | PNP output, light switching | PinPoint LED, 650 nm visible red light | Ø 175 mm light spot at 7 m | < 500 µs response time / 1,000 Hz switching frequency | 10–30 V DC supply voltage | IP67 enclosure rating | M12 3-pin connector | 18 × 18 × 38.1 mm M18 × 1 cylindrical housing | –25°C to +55°C operating temperature

Key Features:

• Original New SICK GRL18S-P2336 sensor (part no. 1058192)

• Photoelectric retro-reflective sensor with dual-lens functional principle

• Axial optical axis and short M18 × 1 cylindrical plastic housing

• Visible red PinPoint LED (650 nm) for a bright, precise light spot

• PNP light-switching output

• < 500 µs response time and 1,000 Hz switching frequency for fast detection

• IP67 protection for industrial environments

• M12 3-pin connector for standard connectivity

• No adjustment required (fixed sensitivity)

• Green LED for power/status indication; yellow LED for received light status (ON: object not present, OFF: object present)

• Supplied with two fastening nuts

Applications:

• Object presence and position detection on conveyor and material handling systems

• Packaging machinery for product verification

• Automated assembly line part detection

• General factory automation and OEM equipment requiring cylindrical retro-reflective sensing

Technical Specifications:

Footnotes:
¹ Limit values, operation in short-circuit protected network: max. 8 A.
² May not fall below or exceed UV tolerances.
³ At UV > 24 V, IA max. = 50 mA.
⁴ Signal transit time with resistive load.
⁵ With light/dark ratio 1:1.
⁶ A = VS connections reverse-polarity protected.
⁷ B = inputs and output reverse-polarity protected.
⁸ D = outputs overcurrent and short-circuit protected.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M12 3-pin male connector mates with standard M12 female cordsets.

• Requires a reflector for operation; PL80A, PL40A, PL20A, P250, or REF-Plus 3436 reflective tape supported per SICK documentation.

• Configuration is fixed; no software or potentiometer adjustment required.

• M18 × 1 threaded barrel allows mounting with the supplied fastening nuts.

Related Products:

• PL80A – Fine triple reflector for maximum 7.2 m sensing range

• P250 – 47 × 47 mm rectangular reflector for standard applications

• PL40A – Compact fine triple reflector for reduced-range applications

• GRL18S-P2336 – Current model, PNP light switching, M12 3-pin

• GRL18S-P1336 – Alternative GR18S series configuration

• YF8U14-020VB3XLEAX – M8 female cordset (for M8 variants); for M12 3-pin, use a suitable M12 3-pin female cordset
