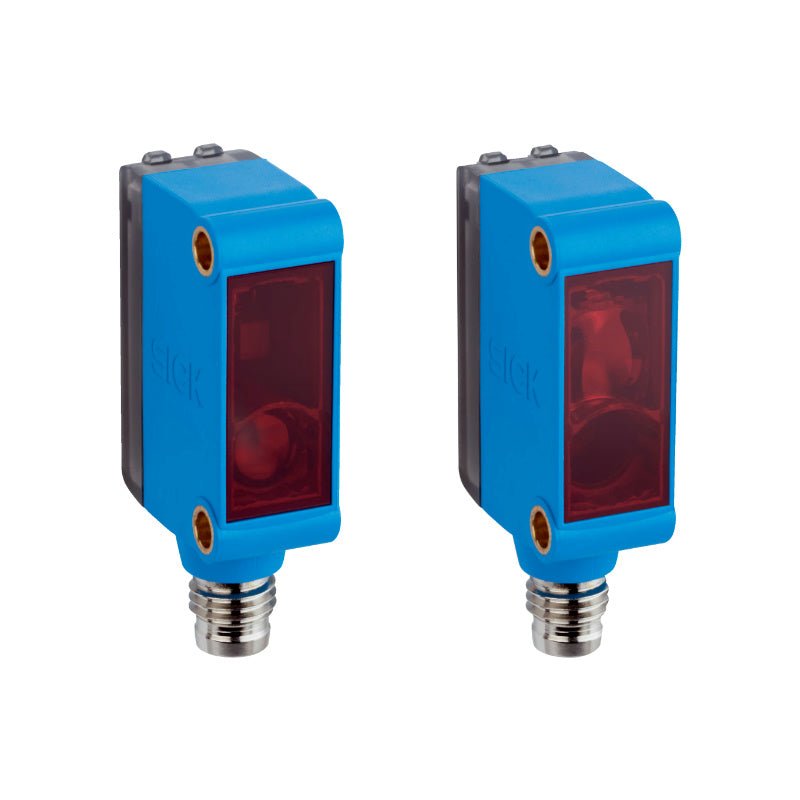

SICK GSE6-P4111 1052446 G6 Miniature Through‑beam Photoelectric Sensor PNP 15m M8

SICK GSE6‑P4111 is a miniature through‑beam photoelectric sensor from the G6 series for long‑range object detection in industrial automation applications. 15 m maximum sensing range (0 m … 10 m recommended operating range). PinPoint LED with visible red light (650 nm wavelength) produces a bright and precisely defined light spot for easy alignment. PNP output with selectable light/dark switching via integrated selector. Compact 12 mm rectangular plastic housing with metal reinforced 1‑inch mounting holes for secure attachment. M8 4‑pin male connector, IP67 protection. Suitable for high‑speed detection, positioning, and counting on conveyors, material handling systems, packaging machinery, and assembly automation.

Applications:

• Long‑range object presence detection on conveyor and sorting systems

• High‑speed positioning and counting in automated assembly lines

• Packaging machinery, bottling and labeling equipment

• Material handling and logistics systems

• General factory automation requiring precise through‑beam detection up to 15 m

Core Specifications:

• Part number: 1052446

• Functional principle: Through‑beam photoelectric sensor

• Sensing range max.: 0 m … 15 m

• Sensing range: 0 m … 10 m

• Light source: PinPoint LED, visible red light

• Wavelength: 650 nm

• Light spot size: Ø 375 mm at 12 m

• Supply voltage: 10 V DC … 30 V DC

• No‑load current consumption: 30 mA

• Switching output: PNP

• Switching mode: Light/dark switching (selectable)

• Output current: ≤ 100 mA (≤ 50 mA at Uv > 24 V)

• Response time: < 500 µs

• Switching frequency: 1,000 Hz

• Adjustment: None (fixed sensitivity)

Advanced Specifications:

• Protection circuits: Reverse polarity, overcurrent and short‑circuit protection

• Electrical connection: Male connector M8, 4‑pin

• Enclosure rating: IP67

• Housing material: Plastic (ABS/PC)

• Optics material: Plastic (PMMA)

• Dimensions (W × H × D): 12 mm × 31.5 mm × 21 mm

• Weight: 40 g

• Operating temperature: –25 °C … +55 °C

• Storage temperature: –40 °C … +70 °C

System Integration:

• Belongs to SICK G6 series of miniature photoelectric sensors.

• Requires separate emitter (e.g., GS6‑D4311) for operation – not included.

• Mounts via two metal‑reinforced through‑holes (standard 1‑inch / 25.4 mm spacing).

• M8 4‑pin male connector interfaces with standard industrial M8 female cables; wiring details available in product manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• GS6‐D4311 (2058059) – Compatible emitter

• YF8U14-020VB3XLEAX – M8 straight female cable, 4‑pin, 2 m, PVC

• YG8U14-020VB3XLEAX – M8 angled female cable, 4‑pin, 2 m, PVC

• BEF‑KHS‑IS12G6 – Mounting bracket for flexible sensor positioning
