GTB10-P4211 Photoelectric Proximity Sensor PNP 950mm IP67 | SICK

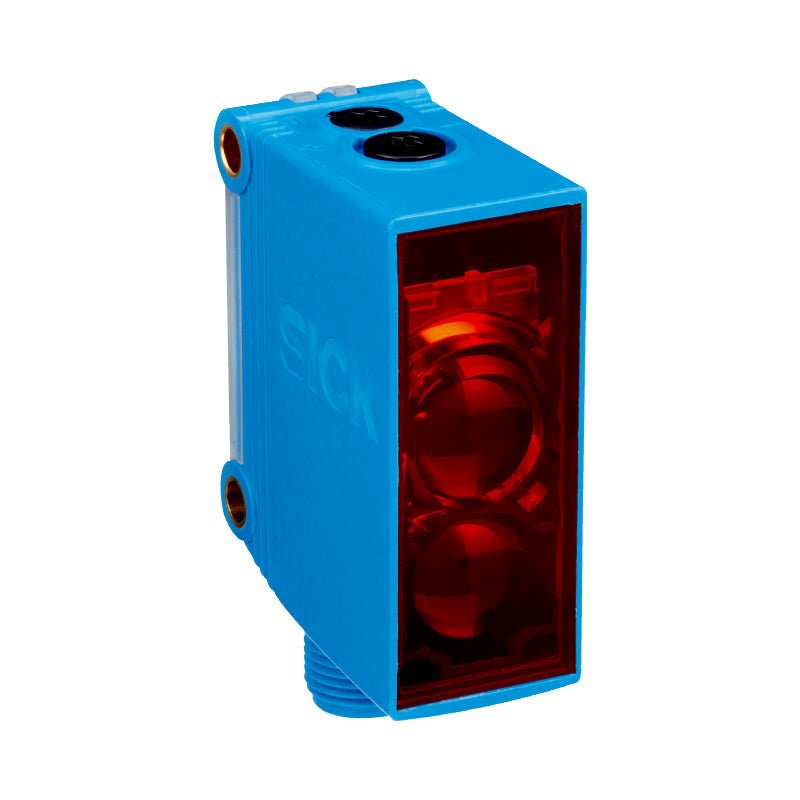

The Original New SICK GTB10-P4211 (1064694) is a compact photoelectric proximity sensor from the G10 series, designed for reliable object detection using background suppression technology. It detects objects within a maximum sensing range of 20 mm to 950 mm, delivering consistent performance independent of background interference. The visible red PinPoint LED produces a precise Ø 8 mm light spot at 700 mm, simplifying alignment. Housed in a 20 × 50 × 39 mm rectangular plastic enclosure rated IP67, the sensor provides a PNP output with selectable light/dark switching and is adjusted via a 5-turn potentiometer.

Core Engineering Highlights:
Background suppression photoelectric proximity sensor | 20–950 mm maximum sensing range | PNP output, light/dark switching selectable | PinPoint LED, 625 nm visible red light | Ø 8 mm light spot at 700 mm | ≤ 500 µs response time / 1,000 Hz switching frequency | 10–30 V DC supply voltage | IP67 enclosure rating | M12 4-pin connector | 20 × 50 × 39 mm rectangular housing

Key Features:

• Original New SICK GTB10-P4211 sensor (part no. 1064694)

• Photoelectric proximity sensor with background suppression for detection independent of background

• PinPoint LED with visible red light (625 nm) for a precise Ø 8 mm light spot at 700 mm

• PNP output with selectable light-on/dark-on switching via selector

• 5-turn potentiometer for sensitivity adjustment

• Rugged plastic housing (ABS/PM) with IP67 protection

• M12 4-pin male connector for standard industrial connectivity

• Rectangular 20 mm width housing for space-efficient installation

• Average LED service life: 100,000 h at +25°C

Applications:

• Object presence and position detection on conveyor and material handling systems

• Packaging machinery for product sorting and verification

• Automated assembly line part detection

• Background-independent detection in industrial automation

• General factory automation and OEM equipment

Technical Specifications:

Footnotes:
¹ Object with 90% reflectance (referred to standard white, DIN 5033).
² Average service life: 100,000 h at TU = +25°C.
³ Limit values, operation in short-circuit protected network: max. 8 A.
⁴ May not exceed or fall below UV tolerances.
⁵ Signal transit time with resistive load.
⁶ With light/dark ratio 1:1.
⁷ A = VS connections reverse-polarity protected.
⁸ B = inputs and output reverse-polarity protected.
⁹ C = interference suppression.
¹⁰ D = outputs overcurrent and short-circuit protected.
¹¹ Refer to SICK documentation for specific UL325 application conditions.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M12 4-pin male connector mates with standard M12 female cordsets.

• Configuration is performed via on-device 5-turn potentiometer and light/dark selector; no software required.

• For UL325-compliant installations, an external protective housing such as BEF-G10WSG (2071960) is required.

Related Products:

• GTB10-P4212 – Same G10 series, alternative configuration

• GTB10-P1211 – Cable connection version

• GTB6-P4211 – G6 series proximity sensor with 250 mm range

• BEF-G10WSG (2071960) – External protective housing for UL325 applications

• YF2A14-020VB3XLEAX – M12 straight female cordset, 4-pin, 2 m, PVC
