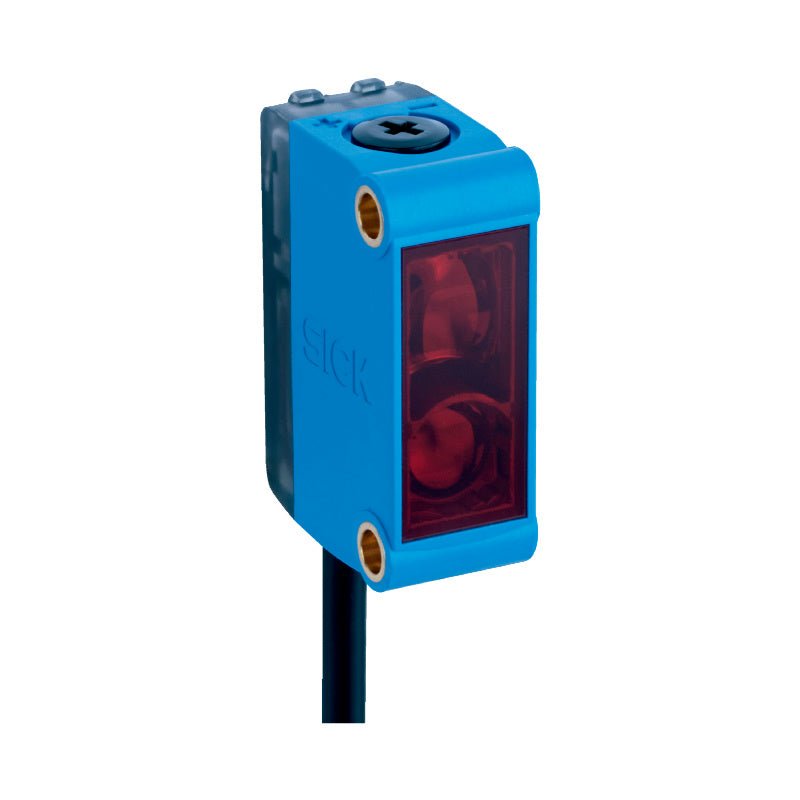

SICK GTB6-P1212 1052444 G6 Miniature Photoelectric Sensor

SICK GTB6-P1212 is a miniature photoelectric proximity sensor from the G6 series, featuring reliable background suppression for detection independent of object colour and background. Housed in a 12 mm compact plastic (ABS/PC) body, it delivers a 250 mm maximum sensing range and a 1,000 Hz switching frequency, making it suitable for high‑speed automation tasks in material handling, packaging, and assembly.

Applications:

• Conveyor object presence and positioning for sorting and counting

• Packaging machinery for product gap detection and quality control

• Automated assembly lines for part detection and pick‑and‑place

• Material handling systems

Core Specifications:

• Functional principle: Photoelectric proximity sensor, background suppression

• Sensing range max.: 5 mm … 250 mm (90 % reflectance)

• Sensing range: 35 mm … 140 mm

• Light source: PinPoint LED, visible red light (λ = 650 nm)

• Light spot size (distance): Ø 6 mm (100 mm)

• Supply voltage: 10 V DC … 30 V DC

• Switching output: PNP

• Switching mode: Light/dark switching (selectable via selector)

• Output current Imax.: ≤ 100 mA (≤ 50 mA at Uv > 24 V)

• Response time: < 625 µs

• Switching frequency: 1,000 Hz

• Adjustment: Mechanical spindle, 5 turns

• Connection type: Cable, 3‑wire, 2 m

• Enclosure rating: IP67

• Housing material: Plastic (ABS/PC)

• Optics material: Plastic (PMMA)

Advanced Specifications:

• No‑load current consumption: 30 mA

• Circuit protection: Reverse polarity (VS connections, inputs/output), overcurrent and short‑circuit

• Ambient operating temperature: –25 °C … +55 °C

• Storage temperature: –40 °C … +75 °C

• Dimensions (W × H × D): 12 mm × 31.5 mm × 21 mm

• Weight: 60 g

• Items supplied: Stainless steel mounting bracket (1.4301/304) BEF‑W100‑A

System Integration:

• Belongs to SICK G6 series of miniature photoelectric sensors.

• Mounts via two M3 through‑holes (standard 1‑inch / 25.4 mm spacing) using the included BEF‑W100‑A bracket.

• 2 m fixed 3‑wire PVC cable provides direct connection to PNP inputs; select light‑on or dark‑on mode via the selector switch.

• Adjust sensing threshold with the 5‑turn mechanical spindle; yellow output LED indicates switching state, green LED indicates power.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (cULus, CE, UKCA, RoHS, UL File No. NRKH.E348498).

Related Products:

• GTB6‑P1211 (1052440) – 300 mm max range, similar housing

• GTB6‑P4212 (1052442) – PNP, M8 4‑pin connector

• GTB6‑N1212 (1052445) – NPN output version

• DOL‑0804‑G02M – M8 straight female connector cable, 4‑pin, 2 m, PVC
