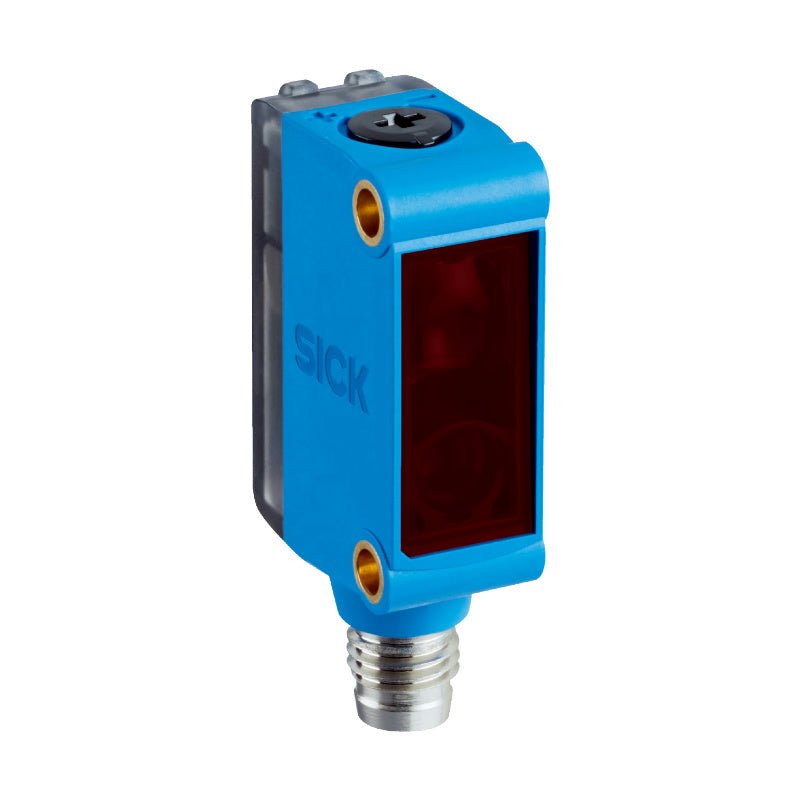

SICK GTB6-P4212 1052442 G6 Miniature Photoelectric Sensor

SICK GTB6-P4212 is a miniature photoelectric proximity sensor with advanced background suppression for reliable object detection, independent of background colour. Part of the high‑performance G6 series, it emits a precise, highly visible PinPoint LED red light spot (650 nm, Ø 6 mm at 100 mm) for simple and robust setup. Housed in a compact 12 mm × 31.5 mm × 21 mm plastic body, the IP67‑rated sensor withstands demanding environments. It provides a PNP switching output (light‑on/dark‑on selectable via selector) with a 1,000 Hz switching frequency, making it suitable for high‑speed automation tasks in material handling, assembly, and packaging machinery.

Applications:

• High‑speed object detection by background suppression on conveyors (presence, positioning, counting)

• Small part detection in automated assembly and pick‑and‑place stations

• Bottle, container and product monitoring in packaging and labelling lines

• Material handling and sorting systems for logistics

• Reliable background‑independent detection even with differently coloured objects (e.g. black glass, shiny metal)

Core Specifications:

• Manufacturer & Part Number: SICK GTB6-P4212 / 1052442

• Series: G6 miniature photoelectric sensors

• Principle: Proximity sensor with background suppression

• Max sensing range: 5 mm … 250 mm (on 90 % remission white)

• Sensing range (recommended): 35 mm … 140 mm (on 90 % white)

• Light source: PinPoint LED, visible red light, λ = 650 nm

• Light spot (distance): Ø 6 mm (100 mm)

• Supply voltage: 10 … 30 V DC, protection class III

• Ripple: ± 10 %

• No‑load current: ≤ 30 mA

• Switching output: PNP, ≤ 100 mA (at U_B ≤ 24 V, ambient ≤ 49 °C); at U_B > 24 V: ≤ 50 mA

• Switching mode (light/dark): selectable via selector

• Response time: ≤ 625 µs

• Switching frequency: 1,000 Hz (with light/dark ratio 1:1)

• Hysteresis: ≤ 5 %

• Electrical connection: Male connector M8, 4‑pin

• Enclosure rating: IP67 (IEC 60529)

Advanced Specifications (Mechanics & Environment):

• Housing: Rectangular (12 mm × 31.5 mm × 21 mm), plastic ABS/PC, front screen PMMA

• Weight: approx. 20 g (connector version)

• Ambient temperature (operation): –25 °C … +55 °C

• Ambient temperature (storage): –40 °C … +70 °C

• Adjustment: Mechanical spindle, 5 turns

• Circuit protection: A (VS reverse‑polarity), B (inputs/output reverse‑polarity), D (overcurrent/short‑circuit)

• UL approvals: NRKH.E348498 & NRKH7.E348498

• Additional items supplied: Stainless steel mounting bracket BEF‑W100‑A (1.4301/304)

System Integration:

• This sensor belongs to the SICK G6 series of miniature photoelectric sensors.

• Designed for background suppression: reliably detects objects independent of their colour by ignoring the background beyond the set sensing range.

• The bright, precisely defined red PinPoint LED spot (650 nm, Ø 6 mm at 100 mm) simplifies alignment.

• Sensitivity can be fine‑tuned with a 5‑turn mechanical spindle.

• The transparent light/dark selector switch allows instant adaptation to the PLC input type without software.

• Mounting holes (one metal‑lined) conform to standard 1‑inch (25.4 mm) spacing for compatibility with all SICK mounting brackets.

• The M8 4‑pin male connector interfaces with standard industrial M8 female cables (e.g. YF8U14‑xxx pole).

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, cULus, RoHS, REACH unaffected, IP67, UL Enclosure).

Related Products:

• GTB6‑P1212 (1052444) – same as current, with 2 m fixed cable, no M8 connector

• GTB6‑N4212 (1052443) – comparable; NPN output (sinking), M8‑4 connector

• GTB6‑N1212 (1052445) – NPN output, 2 m cable

• GTB6‑P4211 (1052438) – PNP output, M8‑4 connector, 35‑140 mm range
