SICK IME12-08NPSZC0S 1040780 Inductive Proximity Sensor PNP 8mm

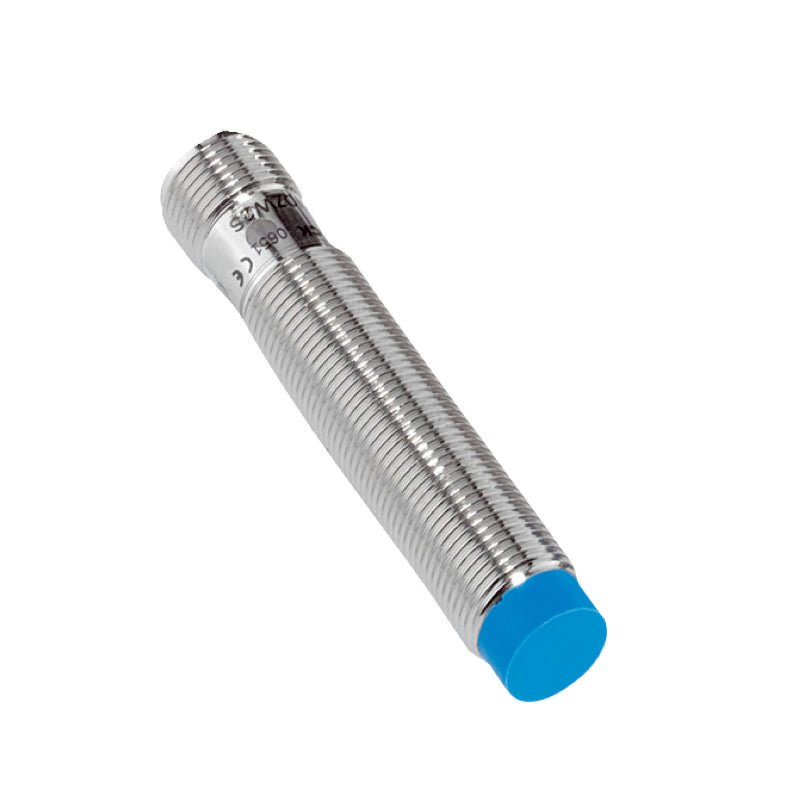

SICK IME12-08NPSZC0S is a standard cylindrical inductive proximity sensor for non-contact detection of metallic objects. PNP output with normally open (NO) function. 8 mm sensing range. M12×1 threaded nickel-plated brass housing. 3‑wire DC connection via 4-pin M12 male connector.

Applications:

• Position detection in automated assembly and production lines

• Metal parts presence and counting in material handling

• Conveyor system object sensing

• Industrial machinery end-position monitoring

Core Specifications:

• Functional principle: Inductive proximity sensor

• Design: Cylindrical with standard housing

• Thread size: M12 × 1

• Diameter: 12 mm

• Sensing range Sn: 8 mm

• Safe sensing range Sa: 6.48 mm

• Installation type: Non-flush (unshielded)

• Electrical design: DC 3‑wire

• Switching output: PNP

• Output function: Normally open (NO)

• Switching frequency: 2,000 Hz

• Connection type: Male connector M12, 4‑pin

• Supply voltage: 10 V DC … 30 V DC

• No‑load current consumption: ≤ 10 mA

• Max. output current: 200 mA

• Voltage drop: ≤ 2 V

• Enclosure rating: IP67

• Operating temperature range: –25 °C … +75 °C

Advanced Specifications:

• Housing material: Nickel-plated brass

• Sensing face material: Plastic (PA 66)

• Repeatability: ≤ 2 %

• Hysteresis: 5 % … 15 %

• Temperature drift: ± 10 %

• Switching status indication: LED

• Short-circuit protection ✔

• Reverse polarity protection ✔

• Transient overvoltage protection ✔

• Shock resistance: 30 g, 11 ms

• Vibration resistance: 10 Hz … 55 Hz, 1 mm

• Length: approx. 65 mm

• Tightening torque: ≤ 12 Nm

• Conforms to: EN 60947‑5‑2

• UL File No.: NRKH.E181493

• RoHS compliant

System Integration:

• Belongs to SICK IME series of inductive proximity sensors.

• Mounts via M12 thread using supplied nuts.

• Non-flush installation type requires clearance from metal surroundings.

• M12 male connector mates with standard M12 4‑pin female cable.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products (logical chain):

• Lower sensing range → IME12‑04NPSZC0S (4 mm sensing range, same M12 housing)

• Current model → IME12‑08NPSZC0S (8 mm sensing range)

• Higher sensing range → IME12‑10NPSZC0S (10 mm sensing range)

• Cable connection version → IME12‑08NPSZW2S (2 m cable instead of M12 connector)
