SICK IME18-05BPSZC0S 1040934 Inductive Proximity Sensor M18 PNP 5mm

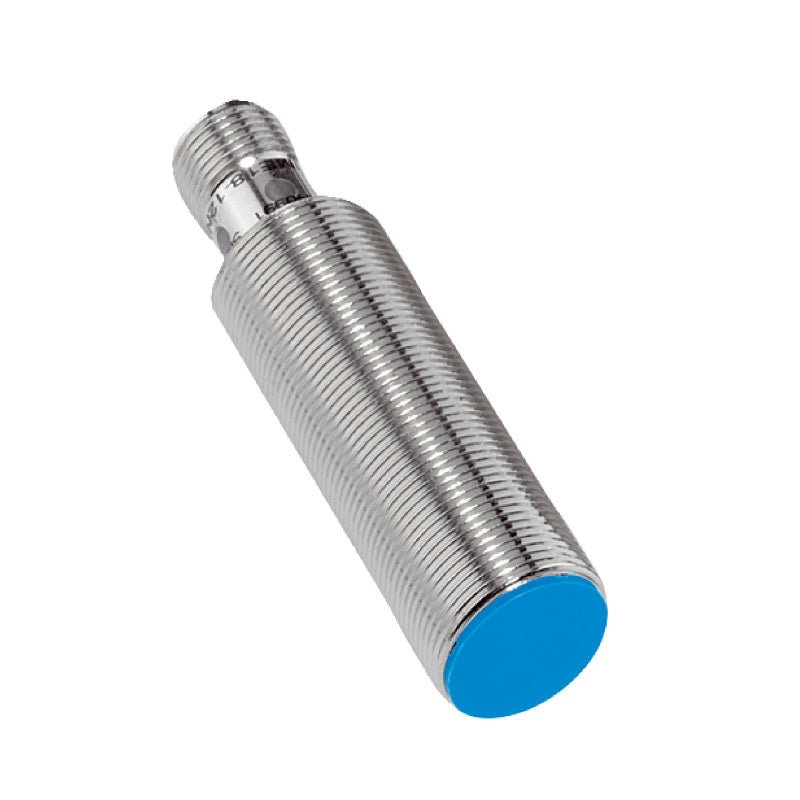

SICK IME18-05BPSZC0S is a standard cylindrical inductive proximity sensor from the IME series. M18 × 1 threaded housing with flush (shielded) mounting design. Detects all metals at a 5 mm sensing range. PNP output with NO function, 3‑wire DC, M12 4‑pin male connector. Nickel‑plated brass housing rated IP67, 10‑30 V DC, 1 kHz switching frequency, –25 °C to +75 °C operating temperature. Suitable for position detection, metal part presence, counting, and end‑limit sensing in industrial automation.

Applications:

• Metal part presence and position detection on automated assembly lines

• Conveyor system object detection for sorting and counting

• Pneumatic cylinder end‑position and limit monitoring

• Robotics position feedback and tool carrier detection

• General industrial automation requiring reliable non‑touch metal detection

Technical Specifications:

• Functional principle: Inductive proximity sensor

• Housing design: Cylindrical with standard thread, M18 × 1

• Diameter: 18 mm

• Sensing range Sn: 5 mm

• Safe sensing range Sa: 4.05 mm

• Installation type: Flush (shielded)

• Housing material: Nickel‑plated brass

• Sensing face material: Plastic (PA 66)

• Supply voltage: 10 V DC … 30 V DC

• No‑load current consumption: ≤ 10 mA

• Switching output: PNP

• Output function: Normally open (NO)

• Output current: ≤ 200 mA

• Voltage drop: ≤ 2 V

• Switching frequency: 1,000 Hz

• Response time: ≤ 0.5 ms

• Time delay before availability: ≤ 100 ms

• Hysteresis: 5 % … 15 %

• Repeatability: ≤ 2 % of Sr

• Temperature drift: ± 10 % of Sr

• Electrical connection: M12 male connector, 4‑pin

• Enclosure rating: IP67

• Short‑circuit protection: ✔

• Reverse polarity protection: ✔

• Transient overvoltage protection: ✔

• Switching status indication: LED

• Housing length: 69 mm (approx.)

• Tightening torque: ≤ 12 Nm

• Ambient operating temperature: –25 °C … +75 °C

• Storage temperature: –25 °C … +75 °C

• Vibration resistance: 10 Hz … 55 Hz, 1 mm

• Shock resistance: 30 g, 11 ms

System Integration:

• Belongs to SICK IME series of inductive proximity sensors.

• Flush mounting (shielded) allows embedding in metal up to the sensing face without derating.

• M12 4‑pin male connector (pin 1: V+, pin 3: V‑, pin 4: output) mates with standard industrial M12 female cables.

• Yellow LED indicates output switching state.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• IME18‑05BPSZW2S – cable connection version, 2 m

• IME18‑08BPSZC0S – 8 mm sensing range variant, non‑flush

• IME18‑05BNSZC0S – NPN output version

• YF2A14‑020VB3XLEAX – M12 straight female connector cable, 4‑pin, 2 m, PVC

• YG2A14‑020VB3XLEAX – M12 angled female connector cable, 4‑pin, 2 m, PVC
