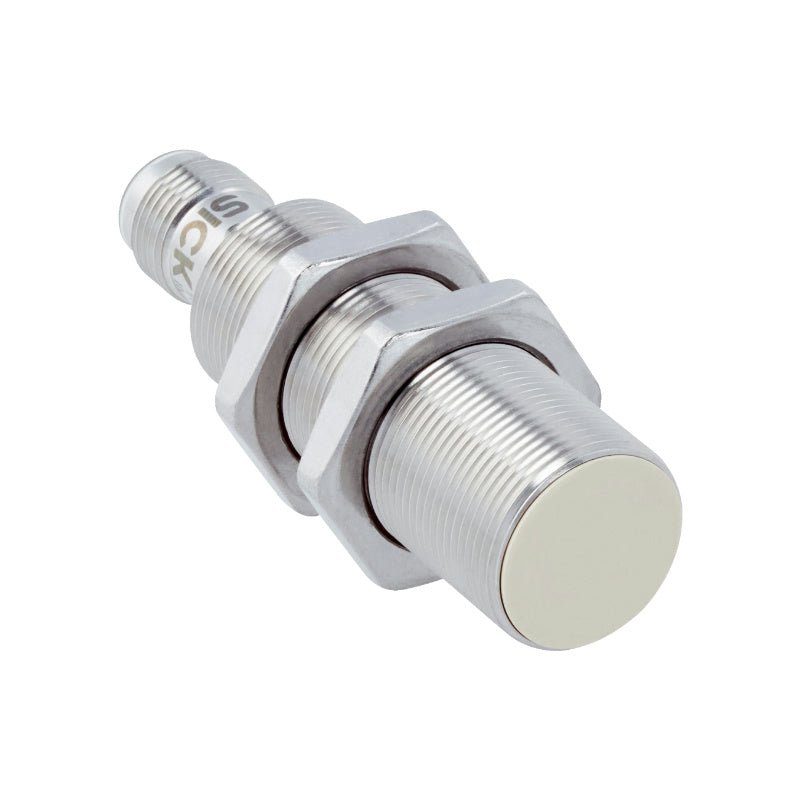

SICK IMF18-08BPSNC0S 1076662 Inductive Proximity Sensor M18 8mm

SICK IMF18‑08BPSNC0S is an inductive proximity sensor from the IMF series, designed for non‑contact metal detection. 8 mm sensing range, quasi‑flush (shielded) mount. Stainless steel housing (V4A, AISI 316L) with M18 × 1 thread. PNP output with normally open (NO) function. M12 4‑pin male connector. Rated IP68 (EN 60529) and IP69K (ISO 20653:2013‑03) for use in food, beverage, and washdown environments. Operating temperature range –40 °C … +100 °C. Optical adjustment indicator, IO‑Link V1.0 communication, Ecolab certified.

Applications:

• Food and beverage processing equipment (hygiene zones, wet areas)

• Washdown environments requiring high‑pressure, high‑temperature cleaning

• Marine and offshore machinery

• Mobile equipment and vehicles

• General industrial automation in harsh conditions

Core Specifications:

• Thread size: M18 × 1

• Sensing range Sn: 8 mm

• Installation type: Quasi‑flush (shielded, protrudes 2 mm from mounting surface)

• Switching output: PNP

• Output function: NO (normally open)

• Switching frequency: 1,000 Hz

• Supply voltage: 10 V DC … 30 V DC (residual ripple ≤ 10 %)

• No‑load current consumption: ≤ 10 mA

• Output current: ≤ 200 mA

• Voltage drop: ≤ 2 V

• Housing material: Stainless steel V4A (DIN 1.4404 / AISI 316L)

• Sensing face material: LCP (plastic)

• Connection type: M12 male connector, 4‑pin (gold‑plated contacts)

• Enclosure rating: IP68 (EN 60529) / IP69K (ISO 20653:2013‑03)

• Operating temperature: –40 °C … +100 °C

• Storage temperature: –40 °C … +100 °C (without packaging)

Advanced Specifications:

• Maximum tightening torque: typ. 90 Nm

• Housing length: 65 mm

• Mounting nut torque: up to 90 Nm

• Vibration resistance: 10 Hz … 55 Hz, 1 mm

• Shock resistance: 100 g / 2 ms, 500 cycles; 150 g / 1 × 10⁶ cycles

• Electromagnetic compatibility: According to EN 60947‑5‑2

• Housing material similar to the market standard V4A (DIN 1.4404 / AISI 316L) food‑grade stainless steel

• Special features: Cleaning agent‑resistant, V4A stainless steel, Ecolab certified, heat‑resistant, IO‑Link communication

IO‑Link Information:

• Communications interface: IO‑Link V1.0

• Communication details: COM2 (38.4 kBaud)

• Process data length: 1 Byte

• Process data structure: Bit 0 = Sn reached, Bit 1 = Sa reached

Safety & Environmental Data:

• MTTF D: 1,971 years (EN ISO 13849‑1)

• DCavg: 0 %

• TM (mission time): 20 years

• UL File No.: E181493

• Certifications: EU declaration of conformity, UK declaration of conformity, ACMA declaration of conformity, Moroccan declaration of conformity, China‑RoHS, Ecolab, FDA, cULus, IO‑Link

• RoHS compliant

System Integration:

• This sensor belongs to the SICK IMF series of inductive proximity sensors for harsh and hygienic environments.

• The sensor is designed for quasi‑flush mounting. In conductive material, the sensor must protrude by 2 mm (distance E).

• The optical adjustment indicator simplifies commissioning by providing visual feedback during installation.

• IO‑Link communication enables parameterisation, diagnostics, and process data exchange with controllers.

• The M12 4‑pin male connector interfaces with standard industrial M12 female cables (e.g., YF2A14 series, straight or angled).

• For detailed installation, wiring and sensing range adjust, refer to the product hardware manual.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.
