KTM-WP11181P Contrast Sensor PNP 12.5mm 15kHz | SICK

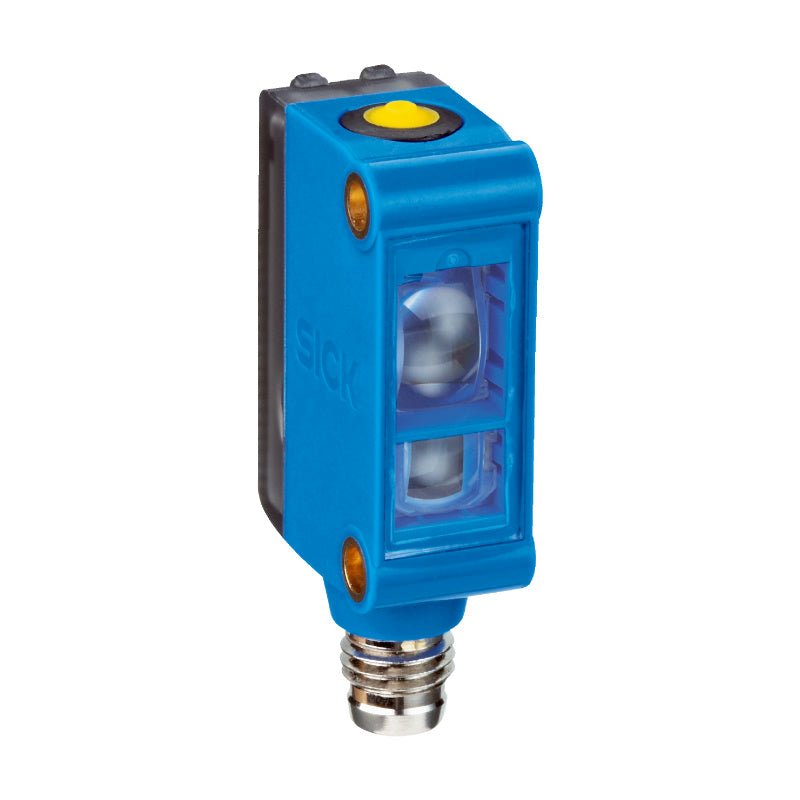

The Original New SICK KTM-WP11181P (1062199) is a contrast sensor from the KTM Prime series, designed for reliable detection of contrast marks in high-speed printing, packaging, and labelling applications. It uses an RGB LED light source (470 nm, 525 nm, 625 nm) and optimised OES4 ASIC technology to achieve a response time of 32 µs and a switching frequency of 15 kHz, enabling accurate mark detection even on glossy materials. The sensor offers a sensing distance of ≤ 12.5 mm with a tolerance of ± 3 mm, and its compact 12 × 31.5 × 21 mm housing with IP67 protection makes it suitable for space-constrained industrial environments. Teach-in is performed via a button, with support for static, dynamic, and proximity-to-mark teach-in modes.

Core Engineering Highlights:
Sensing distance ≤ 12.5 mm (± 3 mm) | RGB LED light source (470 / 525 / 625 nm) | PNP switching output, light/dark switching | Response time 32 µs / switching frequency 15 kHz | Jitter 15 µs | 12–24 V DC supply voltage | Current consumption < 50 mA | IP67 enclosure rating | Teach-in button with 2-point static/dynamic and proximity-to-mark modes | 12 × 31.5 × 21 mm compact housing

Key Features:

• Original New SICK KTM-WP11181P contrast sensor (part no. 1062199)

• RGB LED light source for flexible contrast mark detection

• Optimised OES4 ASIC technology for reliable detection on glossy materials

• High grayscale resolution for accurate mark identification

• Fast response time of 32 µs and switching frequency of 15 kHz

• Jitter of 15 µs for stable, repeatable switching

• PNP output with light/dark switching

• 2-point teach-in (static/dynamic) plus proximity-to-mark and dynamic ET teach-in modes

• Compact housing design with long-side light emission

• Vertical light spot direction (1.5 mm × 6.5 mm or 1.6 mm × 9.5 mm)

• IP67 protection for industrial environments

• Teach-in settings retained in non-volatile memory (28 ms retention time for ET teach-in)

Applications:

• Contrast mark detection in printing and packaging machinery

• Registration mark sensing on labels and continuous webs

• Mark detection on glossy or reflective materials

• High-speed positioning and cut-off control in converting lines

• General factory automation requiring precise contrast differentiation

Technical Specifications:

Footnotes:
¹ Average service life: 100,000 h at TU = +25°C.
² Light spot size varies slightly between datasheet versions; both 1.5 × 6.5 mm and 1.6 × 9.5 mm are referenced in SICK documentation.
³ In relation to long side of housing.
⁴ Limit values: DC 12 V (–10%) … DC 24 V (+20%). Operation in short-circuit protected network max. 8 A.
⁵ May not fall below or exceed UV tolerances.
⁶ Without load.
⁷ With light/dark ratio 1:1.
⁸ Signal transit time with resistive load.
⁹ At supply voltage > 24 V, Imax = 30 mA. Imax is the total current of all outputs.
¹⁰ A = VS connections reverse-polarity protected; B = inputs and output reverse-polarity protected; C = interference suppression; D = outputs overcurrent and short-circuit protected.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M8 4-pin male connector mates with standard M8 female cordsets.

• Configuration is performed via on-device teach-in button; no software required.

• Suitable for integration into printing, packaging, and converting lines requiring high-speed contrast mark detection.

Related Products:

• KTM-WN11181P – NPN output variant, same sensing distance and functionality

• KTM-WP11181P – Current model, PNP output, RGB LED

• KTM-WP11182P – Alternative KTM Prime model with different light spot configuration

• KTM-WP11181P – Reference for compatible M8 4-pin connection cables

• YF8U14-020VB3XLEAX – M8 straight female cordset, 4-pin, 2 m, PVC

• BEF-KTS-A – Mounting bracket for KTM series
