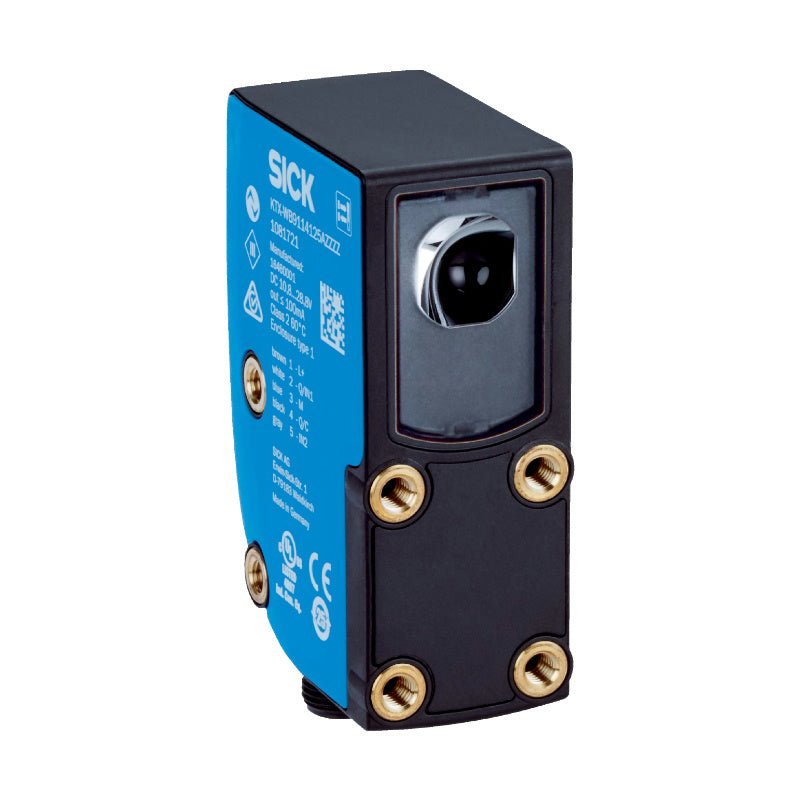

SICK KTX-WS91141242ZZZZ KTX Prime Contrast Sensor 13mm Push-Pull

SICK KTX Prime is a high‑precision contrast sensor for detecting colour marks and registration points on fast‑moving materials. KTX‑WS91141242ZZZZ has a sensing distance of ≤ 13 mm (± 5 mm tolerance) and uses an RGB LED light source (emission from the long side of the housing). The vertical 0.9 mm × 3.8 mm light spot makes contrast detection reliable even on glossy or uneven surfaces. Switchable push‑pull output (PNP/NPN compatible) and flexible teach‑in modes (1‑point, 2‑point, dynamic, auto) allow optimisation to different material and application conditions. Seven‑segment display for direct parameter feedback and IP67 VISTAL® plastic housing.

Applications:

• Print mark detection on packaging webs for cutting and splicing

• Colour mark detection in printing industry for register control

• Label alignment and positioning on bottles and containers

• Roll diameter monitoring in film, foil and label converting

• Quality inspection of print marks in textile and pharmaceutical production

Technical Specifications:

• Sensing range: ≤ 13 mm (± 5 mm tolerance)

• Housing dimensions (W × H × D): 30 mm × 53 mm × 78.5 mm

• Light emission: Long side of housing

• Light source: LED, RGB (470 nm, 525 nm, 625 nm)

• Light spot size (vertical direction): 0.9 mm × 3.8 mm

• Supply voltage: 10.8 V DC … 28.8 V DC (SELV/PELV)

• Switching output: Push‑pull (PNP/NPN compatible), light/dark switching

• Output current: ≤ 100 mA (sum of all digital outputs)

• Switching frequency: 50 kHz

• Response time: 10 µs

• Jitter: 5 µs

• Teach‑in mode: 1‑point, 2‑point, dynamic, auto mode

• Communication interface: Standard (no IO‑Link on this variant)

• Delay time: adjustable

• Protection rating: IP67

• Housing material: VISTAL® (plastic)

• Circuit protection: reverse polarity, short‑circuit, interference pulse suppression

• Operating temperature: –20 °C … +60 °C

• Weight: approx. 94 g

System Integration:

• This sensor is part of the KTX Prime series of contrast sensors.

• Mounts via two M4 through‑holes (standard 1‑inch / 25.4 mm spacing) compatible with SICK bracket systems.

• M12 4‑pin male connector mates with standard industrial M12 female cables.

• Teach‑in performed via front panel push‑buttons and 7‑segment display; light/dark switching selectable.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• KTX‑WP9214125AZZZZ – KTX Prime, 25 mm sensing distance

• KTS‑WB91141142ZZZZ – KTS Core contrast sensor, PNP/NPN output

• YF2A14‑xxxVB3XLEAX – M12 straight female connector cable, 4‑pin, various lengths, PVC
