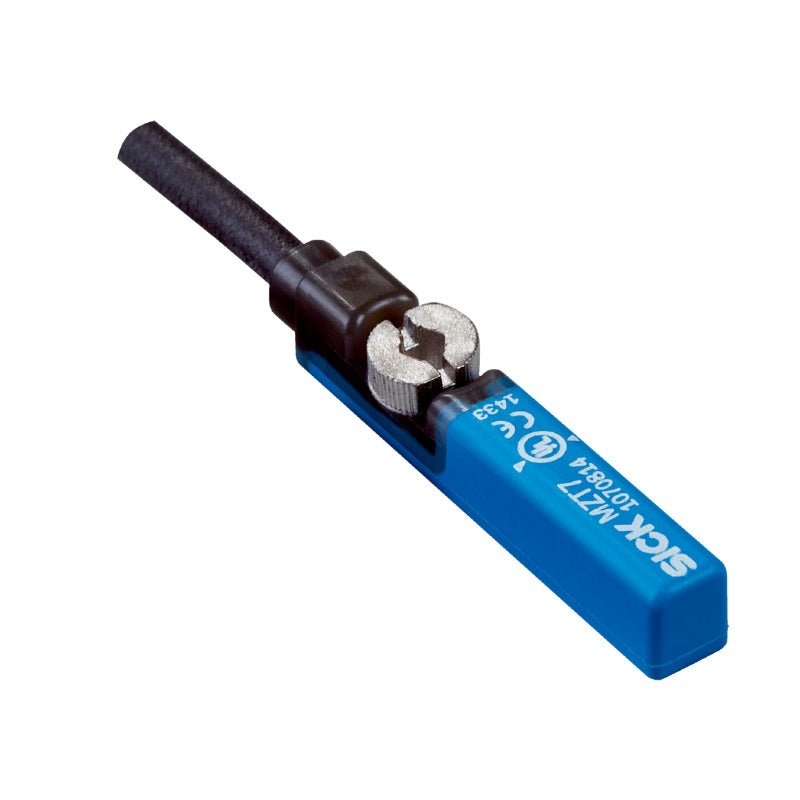

SICK MZT7-03VPS-KP0 1070814 Magnetic Cylinder Sensor PNP NO

SICK MZT7‑03VPS‑KP0 is a magnetic cylinder sensor with GMR technology for non‑contact piston position detection in pneumatic drives. Designed for T‑slot cylinders, the sensor drops directly into the slot from above and secures with a quarter‑turn fixing screw – no cylinder end cap removal required.

Applications:

• Pneumatic cylinder end‑position detection in T‑slot actuators

• Gripper position monitoring in pick‑and‑place and assembly stations

• Clamping cylinder position feedback in workholding fixtures

• Linear slide position detection in factory automation

Core Specifications:

• Sensor type: Magnetic cylinder sensor (GMR technology)

• Cylinder compatibility: T‑slot (primary); compatible via adapters with round rod, tie‑rod, profile cylinders, and dovetail groove cylinders

• Switching output: PNP (DC 3‑wire)

• Output function: Normally open (NO)

• Switching frequency: 1,000 Hz

• Response sensitivity, typ.: 3 mT

• Hysteresis, typ.: < 0.8 mT

• Reproducibility: ≤ 0.1 mT

• Overrun distance, typ.: 10 mm

• Supply voltage: 10 V DC … 30 V DC

• Continuous output current: ≤ 100 mA

• Voltage drop: ≤ 2 V

• No‑load current consumption: 8 mA

• Status indicator: LED

• Electrical connection: Cable with M8 3‑pin male connector, drag chain suitable, 0.3 m

• Conductor cross‑section: 0.14 mm²

• Cable diameter: Ø 2.9 mm

• Cable material: PUR

• Enclosure rating: IP65, IP67

• Housing material: Plastic

• Housing length: 29.5 mm

• Ambient operating temperature: –30 °C … +80 °C

• Protection class: III

• Circuit protection: Reverse polarity protection ✔, short‑circuit protection ✔

System Integration:

• Insert the sensor into the cylinder T‑slot from above, position over the piston magnet, and tighten the combined fixing screw a quarter turn (hexagon socket or flat‑head screwdriver). Retaining ribs hold the sensor in place even before the screw is tightened.

• For non‑T‑slot cylinders, SICK adapter kits enable use with round rod, tie‑rod, profile, and dovetail groove cylinders.

• The M8 3‑pin male connector mates with standard industrial M8 female cables. Status LED indicates output switching state.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (cULus, CE, UKCA, RoHS, EN 60947‑5‑2).

Related Products:

• MZT7‑03VPS‑KR0 (1070821) – Same sensor, 0.5 m cable with M8 3‑pin connector, knurled nuts

• MZT7‑03VPS‑KU0 (1070825) – 2 m PUR cable (open end)

• MZT7‑03VPS‑KW0 (1070827) – 2 m PVC cable (open end)

• MZT7‑03VPS‑KUB (1070833) – 5 m cable (open end)
