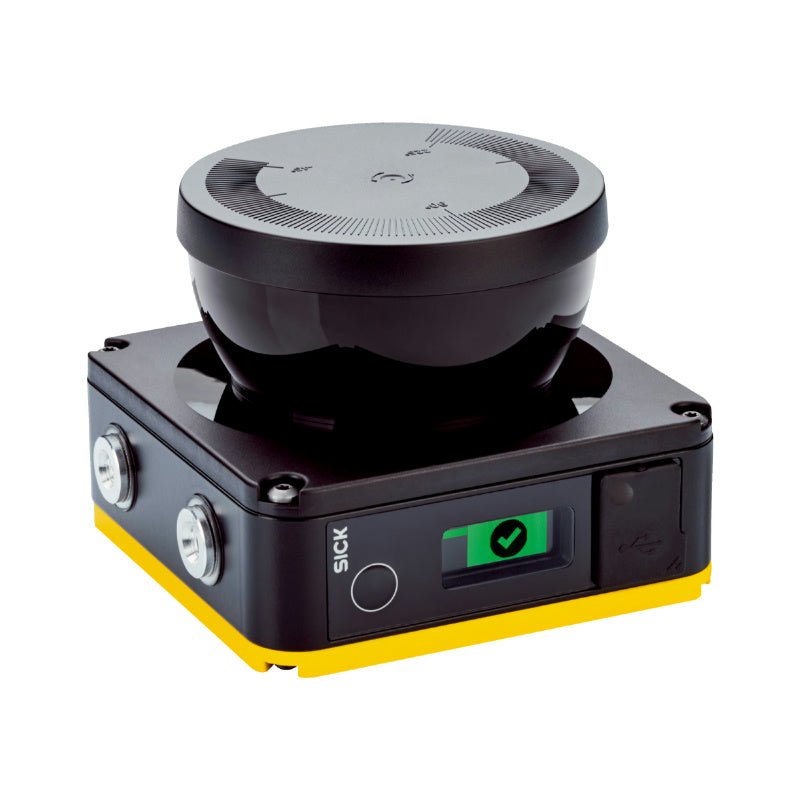

SICK NANS3-AAAZ30AN1 1100333 nanoScan3 Core I/O Safety Laser Scanner

SICK nanoScan3 is a compact safety laser scanner for area protection on automated guided vehicles (AGVs) and mobile robots. It monitors the protective field with a 3 m range and 275° scanning angle, using safeHDDM® technology for detection even under harsh lighting and environmental conditions. Includes 3 universal I/Os, 1 OSSD pair, and an integrated configuration memory.

Applications:

• AGV/AMR collision prevention and personnel protection

• Mobile robot navigation and safe localisation

• Stationary hazardous area monitoring (robotic cells, machinery guarding)

• Material handling and logistics automation systems

Core Specifications:

• Protective field range: 3 m

• Warning field range: 10 m

• Maximum detection range: 40 m

• Scanning angle: 275°

• Safety rating: Type 3 (IEC 61496), SIL 2 (IEC 61508), PL d (EN ISO 13849)

• Laser class: 1 (eye‑safe, 905 nm wavelength)

• Response time: ≥ 70 ms

• Angular resolution: 0.17°

• Configurable resolution: 20 mm, 30 mm, 40 mm, 50 mm, 60 mm, 70 mm, 150 mm, 200 mm

Advanced Specifications:

• Supply voltage: 24 V DC (16.8 ... 30 V DC)

• Power consumption: 3.9 W typical (without output load)

• Enclosure rating: IP65

• Ambient operating temperature: –10 °C … +50 °C

• Storage temperature: –25 °C … +70 °C

• Dimensions (W × H × D): 106.6 mm × 80 mm × 117.5 mm

• Weight: 0.67 kg

• Housing material: Aluminium (RAL 1021 yellow / RAL 9005 black)

• Optics cover: Polycarbonate

• Functions: Restart interlock, external device monitoring (EDM), multiple sampling, monitoring case switching, simultaneous monitoring, static protective field switching, safe contour detection, measured data output via Ethernet

• Number of fields: 8 (up to 8 simultaneously monitored)

• Number of monitoring cases: 2

• Universal I/O: 3

• OSSD output pairs: 1

• Static control inputs: ≤ 1

• Configuration method: PC with Safety Designer software

• Configuration interface: USB 2.0 (micro USB)

• Data interface: Ethernet

System Integration:

• Part of the SICK nanoScan3 series, the smallest safety laser scanner in the SICK portfolio.

• Designed for mobile platform protection and localisation with space‑saving 80 mm height.

• System mount and I/O integration vary by selected system plug (M12).

• Configuration and diagnostics performed with Safety Designer software via USB or Ethernet.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, cULus, TÜV, RoHS).

Related Products:

• 1100334 – nanoScan3 Pro I/O (128 fields, 128 monitoring cases)

• MicroScan3 – larger safety laser scanner for more extensive applications

• Safety Designer – configuration and diagnostic software
