SICK P250F 5308843 Fine Triple Reflector for Laser Sensors

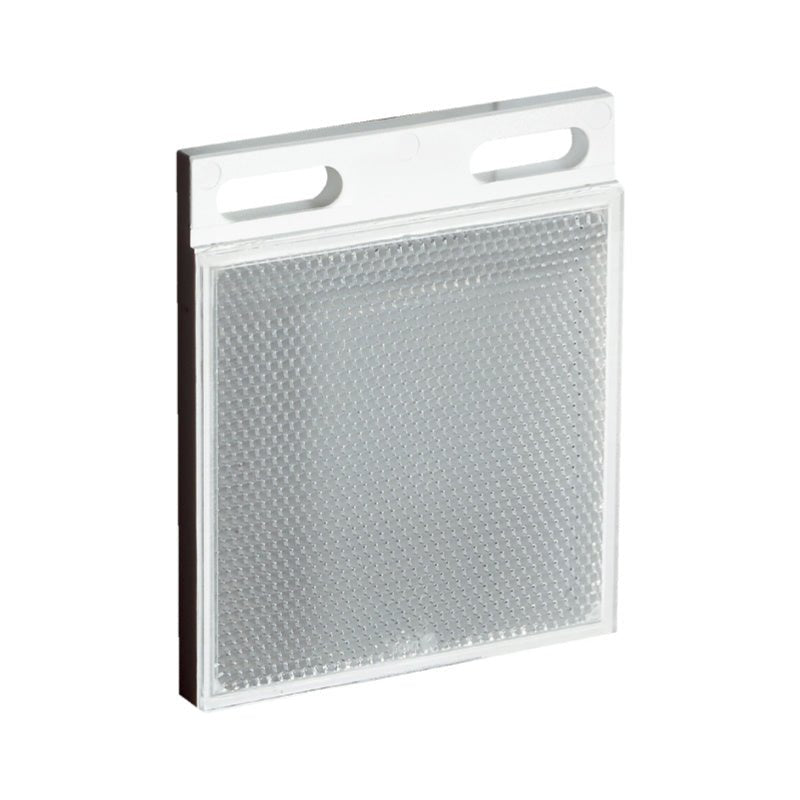

SICK P250F is a fine triple reflector designed for use with retro‑reflective photoelectric sensors, particularly laser sensors. Its 47 mm × 47 mm reflective area ensures a strong and stable return signal for precise object detection in industrial automation. The reflector is made from durable PMMA/ABS material, providing high optical clarity and impact resistance. Delivered with a screw‑on, two‑hole mounting system, the P250F can be securely and repeatably attached to most standard industrial brackets. An operating temperature range of –30 °C to +65 °C supports reliable performance in demanding applications, including conveyor systems, machine automation, assembly lines and packaging equipment.

Applications:

• Reliability of laser and LED retro‑reflective sensor setups for object detection in industrial automation; often used for presence and absence checks

• Positioning, assembly and pick‑and‑place stations in machine automation

• Conveyor systems for object detection, sorting and routing in logistics

• Optical alignment tasks on assembly lines

• Replacement of worn reflective targets in industrial sensor systems

Technical Specifications

Core Specifications

• Reflective area: 47 mm × 47 mm

• Reflector type: Fine triple (precision prism)

• Housing dimensions (W × H): 52 mm × 62 mm (approx.)

• Material body: PMMA/ABS

• Mounting type: Screw‑on (threaded), 2‑hole mounting

• Ambient operating temperature: –30 °C … +65 °C

• Storage temperature: –40 °C … +75 °C (typical)

Advanced Specifications

• Housing thickness: 6 mm (typical)

• Unit weight: 13 g (approx.)

• Unit volume: 38.5 cm³

• Material: PMMA (optical face) and ABS (body)

• Packaging unit: 1 piece (box)

System Integration

• This reflector belongs to the SICK P250F family of fine triple reflectors.

• It works with all retro‑reflective SICK sensors, especially laser‑based models (e.g. GL10, WL12L, WT100L series). The fine triple reflector enhances detection of transparent objects when used with LED sensors.

• Two‑hole mounting: for secure installation, use the two integrated mounting holes (on centre spacing 1 inch / 25.4 mm). The screw‑on method provides a rigid, repeatable fit.

Standards & Compliance

• RoHS compliant, REACH unaffected

• For more details, refer to the manufacturer official datasheet.

Related Products

• P250 (5304812) – Standard rectangular reference reflector (non‑fine) for LED sensors, same footprint

• PL80A (1003865) – Fine triple reflector for laser sensors (84 mm × 84 mm, 80 mm × 80 mm reflective area)

• PL40A (1012720) – Triangular fine triple reflector for compact mounting

• P250F‑50 (5308843‑50) – Same reflector in pack of 50 units (bulk)

• For laser‑based retro‑reflective sensors: GL10‑P4112 (1065879), WL12L‑2B530 (1018252), WT100L‑F1141
