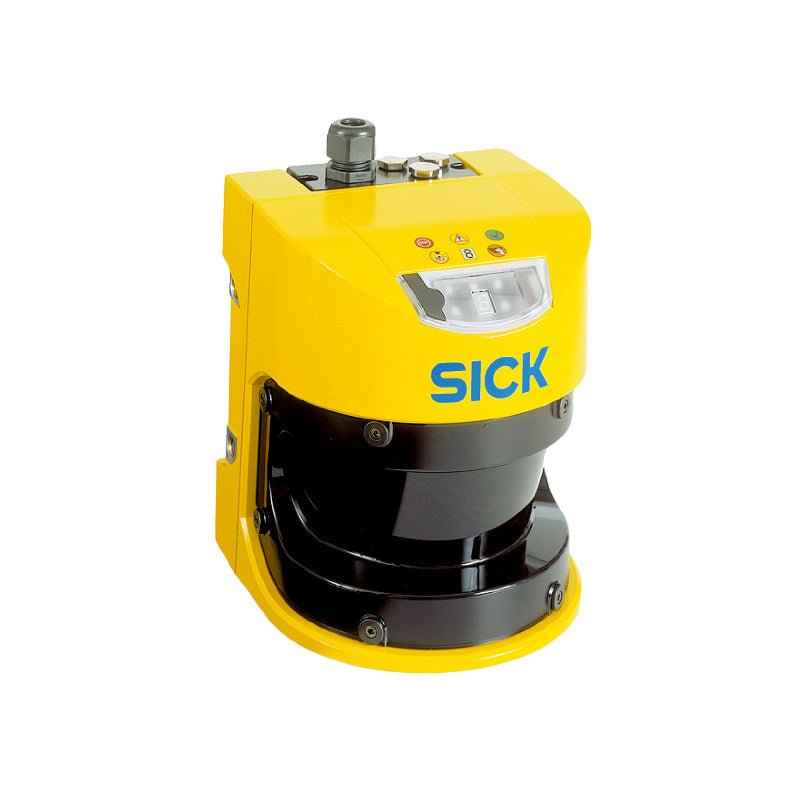

SICK S30A-4011CA 1028935 S3000 Advanced Safety Laser Scanner

SICK S30A-4011CA is a Type 3 (IEC 61496) safety laser scanner from the S3000 Advanced series for area monitoring in industrial environments. It scans a 190° area with pulsed laser diode technology (λ = 905 nm) and evaluates objects based on the time-of-flight measurement principle. The device monitors a configurable protective field of up to 4 m and a warning field of up to 49 m (20 m at 20 % reflectivity) using up to four field sets switchable via static inputs. Designed for stationary or mobile hazardous area protection.

Applications:

• Hazardous area protection on stationary machinery (e.g. assembly lines)

• Access guarding on automated guided vehicles (AGVs) and mobile robots

• Monitoring danger zones in tire curing presses and robot work cells

• Access safeguarding for entry/exit portals in Safe Portal Solutions

• Contour monitoring in vertical applications (e.g. ground detection)

Core Specifications:

• Measuring principle: Pulsed laser diode, time-of-flight measurement

• Scanning angle: 190°

• Protective field range: 4 m (max.)

• Warning field range: 49 m (20 m at 20 % reflectivity)

• Simultaneously monitored protective fields: ≤ 4

• Configurable object resolution: 30 mm … 150 mm

• Angular resolution: 0.25° / 0.5°, configurable depending on range and resolution

• Response time: 60 ms (120 ms configurable)

• Safety outputs (OSSD): 2 × PNP, 500 mA, short‑circuit protected

• Diagnostic outputs: 3 × PNP, 100 mA (freely programmable)

• Supply voltage Vs: 24 V DC (16.8 V DC … 28.8 V DC), PELV/SELV

Advanced Specifications:

• Power consumption: ≤ 0.8 A (no load) / ≤ 2.3 A (max. output load)

• Safety integrity: Type 3 (IEC 61496), SIL 2 (IEC 61508), Category 3 (EN ISO 13849), PL d

• PFHD: 8,6 × 10⁻⁹ per hour (S3000 series)

• Mission time (TM): 20 years (EN ISO 13849)

• Enclosure rating: IP65 (EN 60529)

• Protection class: II (EN 50178)

• Ambient operating temperature: –10 °C … +50 °C

• Storage temperature: –25 °C … +50 °C

• Dimensions (W × H × D): 155 mm × 185 mm × 160 mm

• Weight: approx. 3.3 kg

• Housing material: Aluminium die cast, RAL 1021 (yellow)

• Optics cover material: Polycarbonate with scratch‑resistant outer coating

• Vibration resistance: 5 g, 10 Hz … 150 Hz (IEC 61496‑1, IEC 61496‑3)

• Shock resistance: 10 g, 16 ms (IEC 61496‑1, IEC 61496‑3)

System Integration:

• This sensor belongs to the SICK S3000 Advanced series. Supports up to twelve configurable fields (protective/warning) and four monitoring cases.

• Configuration performed via optional system plug (with or without connecting cable) using SICK CDS (Configuration and Diagnostic Software).

• The integrated EFI (Enhanced Function Interface) allows direct connection to SICK Flexi Soft safety controllers.

• Protective field switching is done via static control inputs A/B on separate OSSD pairs for simultaneous monitoring.

• Operates in modes with or without restart interlock and with or without external device monitoring (EDM).

• Designed for stationary indoor use.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• FX3‑CPU130002 – Flexi Soft main module for EFI connection to the scanner

• 2051599 – CDS (Configuration and Diagnostic Software) for scanner configuration

• YF2A15‑xxxUB5M2A15 series – M12 5‑pin connection cable (replacement part)

• System plug with connecting cable – for configuration memory without PC
