S30A-7011BA S3000 Standard Safety Laser Scanner 7m IP65 | SICK

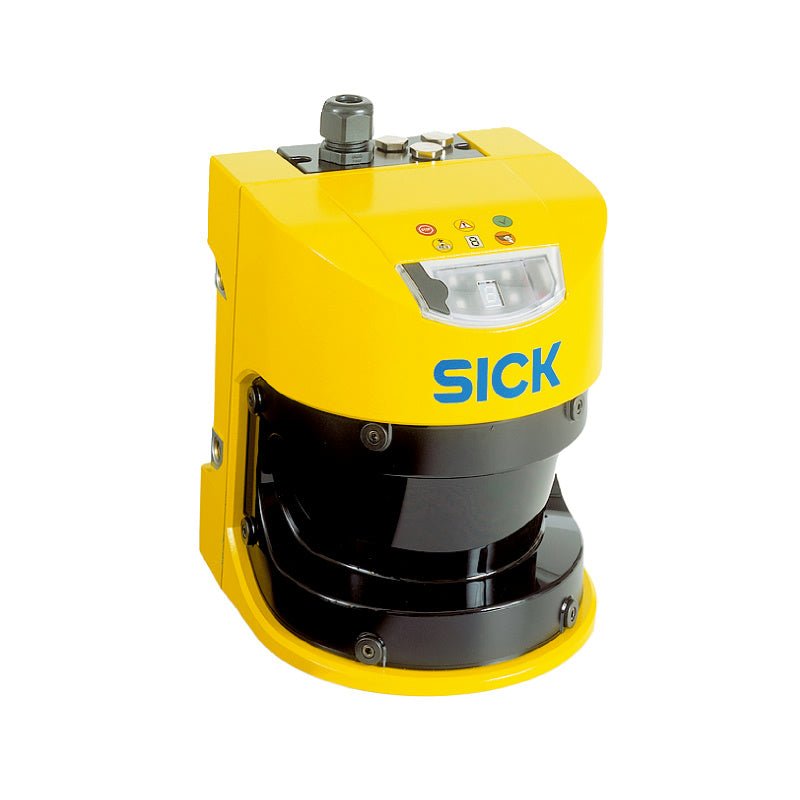

The Original New SICK S30A-7011BA (1023890) is a Type 3 safety laser scanner from the S3000 Standard series, designed as an economical solution for protecting hazardous points, danger zones, and entrances, as well as for safeguarding automated guided vehicles. It provides a 7 m protective field range and a 49 m warning field range (20 m at 20% remission), with a 190° scanning angle for broad-area monitoring. The scanner supports one field set with up to four fields and simultaneous monitoring of up to four protective fields in combination with a SICK safety controller. An integrated EFI interface enables reliable SICK device communication, and the system plug (ordered separately) with built-in configuration memory allows rapid device replacement without a laptop. The aluminium die-cast housing is rated IP65 for indoor industrial environments. This product is listed as obsolete by distributors; verify availability and successor models with SICK before ordering.

Core Engineering Highlights:
Type 3 (IEC 61496) | SIL 2 (IEC 61508) | Category 3 (EN ISO 13849) | PL d (EN ISO 13849) | Protective field range 7 m | Warning field range 49 m (20 m at 20% remission) | 190° scanning angle | Configurable resolution 30–150 mm | Response time 60 ms | 24 V DC (16.8–28.8 V DC) | IP65 aluminium die-cast housing | –10°C to +50°C operating temperature

Key Features:

• Original New SICK S30A-7011BA safety laser scanner (part no. 1023890)

• Type 3 safety laser scanner for indoor hazardous point, danger zone, and access protection

• 7 m protective field range and 49 m warning field range for large-area safeguarding

• 190° scanning angle for broad coverage

• One field set with up to 4 fields; simultaneous monitoring of up to 4 protective fields in combination with a SICK safety controller

• Integrated EFI interface for reliable SICK device communication

• System plug with built-in configuration memory enables rapid device replacement without a laptop (system plug ordered separately)

• Selectable resolution for hand, leg, or body detection (30, 40, 50, 70, 150 mm)

• Contour as reference for vertical applications

• Integrated external device monitoring (EDM)

• Restart interlock supported

• Multiple sampling: 2 to 16, configurable

• Automatic reset delay: 2 s to 60 s, configurable

• Aluminium die-cast housing with IP65 protection

• Configuration via PC with CDS (Configuration and Diagnostic Software)

Applications:

• Hazardous area protection or presence detection at loading and unloading stations

• Hazardous area protection at production lines and within work cells

• Access protection for machines and systems

• Access protection in work cells

• Simultaneous protection for up to 4 hazardous areas in highly automated systems (in combination with SICK Flexi Soft safety controller)

• Protection of automated guided vehicles (AGVs)

Technical Specifications:

Safety Parameters:

Functions:

Electrical & Mechanical:

Footnotes:
¹ When monitoring multiple protective fields simultaneously, the shutdown signal must be transmitted to the safe outputs of a Flexi Soft safety controller or via a safe EFI gateway.
² Two simultaneous field sets, each containing two fields, output via EFI from Flexi Soft.
³ Depending on basic response time and multiple sampling.

System Compatibility:

• Requires a compatible system plug (ordered separately) with integrated configuration memory for operation.

• Integrated EFI interface supports connection to SICK safety controllers (e.g., Flexi Soft) for advanced functions including simultaneous monitoring of up to 4 protective fields.

• Configured using SICK CDS (Configuration and Diagnostic Software) on a PC.

• Designed for indoor stationary and mobile safety applications.

• Part of the S3000 Standard series; other models offer 4 m or 5.5 m protective field ranges.

Related Products:

• System plug for S3000 Standard (with configuration memory) – Required for operation, ordered separately

• S30A-6011BA (1023546) – S3000 Advanced model with 5.5 m protective field range

• S30A-4011CA (1028935) – S3000 Advanced model with 4 m protective field range

• Flexi Soft safety controller – For EFI-networked safety architectures and simultaneous monitoring

• CDS (Configuration and Diagnostic Software) – Required for scanner configuration

Product Status:
According to distributor listings, this model (S30A-7011BA / 1023890) is marked as obsolete and no longer manufactured. Verify availability and successor models with SICK before ordering. This page is provided for existing system maintenance and spare part reference.
