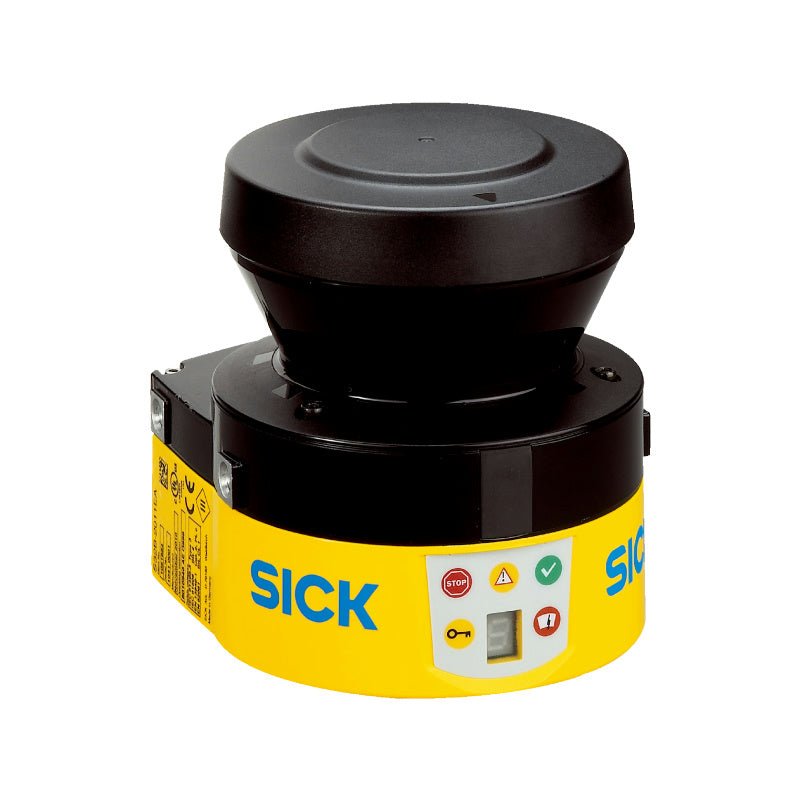

SICK S32B-3011BA 1056430 S300 Mini Standard Safety Laser Scanner 3m

SICK S300 Mini Standard is a compact safety laser scanner for hazardous area protection and access guarding. 3 m protective field range and 8 m warning field range (at 15% reflectivity). 270° scanning angle. IP65 aluminium die‑cast housing (RAL 1021 yellow / RAL 9005 black). Pulsed laser diode (905 nm wavelength), laser class 1 (eye‑safe). Type 3 (IEC 61496), PL d (EN ISO 13849), SIL 2 (IEC 61508). For mobile and stationary indoor safety applications.

Applications:

• Hazardous area access guarding on machinery and production lines

• Automated guided vehicle (AGV) collision prevention and personnel protection

• Robotics workcell perimeter monitoring

• Conveyor system and material handling safeguarding

• Loading and unloading station presence detection

Core Specifications:

• Protective field range: 3 m

• Warning field range: 8 m (at 15 % reflectivity)

• Distance measuring range: 30 m

• Scanning angle: 270°

• Response time: 80 ms (configurable with multiple sampling)

• Field set type: Triple field sets

• Number of field sets: 1

• Number of fields: 3 (1 protective field, 2 warning fields)

• Configurable resolution: 30 mm, 40 mm, 50 mm, 70 mm, 150 mm

• Angular resolution: 0.5°

• Multiple sampling: 2 … 16, configurable

• Protective field supplement: 100 mm

• Type of light: Pulsed laser diode, λ = 905 nm

• Laser class: 1 (IEC 60825‑1, eye‑safe)

Safety Ratings:

• Type: Type 3 (IEC 61496‑1)

• Performance level: PL d (EN ISO 13849‑1)

• Category: Category 3 (EN ISO 13849‑1)

• Safety integrity level: SIL 2 (IEC 61508), SILCL 2 (EN 62061)

• PFHD: 8.0 × 10⁻⁸

• Mission time TM: 20 years (EN ISO 13849‑1)

Advanced Specifications:

• Supply voltage: 24 V DC (16.8 V … 30 V DC)

• Power consumption: ≤ 0.25 A (no‑load), ≤ 1.35 A (max. output load)

• Protection class: III (EN 50178, EN 60950)

• Enclosure rating: IP65 (EN 60529)

• Connection: 250 mm cable with M12 male connector, 8‑pin

• Universal I/Os: 2

• Safety outputs (OSSD): 2, short‑circuit protected

• Warning field outputs: 2

• Inputs: External device monitoring (EDM), reset/restart, standby

• Restart interlock: ✔

• External device monitoring (EDM): ✔

• Contour as a reference: ✔

• Automatic reset delay: configurable 2 s … 60 s

• Configuration method: PC with CDS (Configuration and Diagnostic Software)

• Configuration interface: RS‑232, 38.4 kBaud

• Housing material: Aluminium die‑cast, RAL 1021 (yellow), RAL 9005 (black)

• Optics cover material: Polycarbonate with scratch‑resistant outer coating

• Dimensions (W × H × D): 102 mm × 116 mm × 105 mm

• Weight: 0.8 kg

Environmental Specifications:

• Operating temperature: –10 °C … +50 °C

• Storage temperature: –25 °C … +50 °C

• Vibration resistance: 5 g, 10 Hz … 150 Hz (IEC 61496, IEC 61496‑3)

• Shock resistance: 10 g, 16 ms (IEC 61496, IEC 61496‑3)

• Continuous shock: 50 m/s², 11 ms; 100 m/s², 16 ms

• Class: 5M1 (IEC 60721‑3‑5)

System Integration:

• This scanner belongs to the SICK S300 Mini Standard family of safety laser scanners.

• Configuration and field definition performed using CDS (Configuration and Diagnostic Software) via the RS‑232 interface.

• The EFI (Enhanced Function Interface) allows direct connection to SICK safety controllers (e.g., Flexi Soft).

• OSSD safety outputs connect to safety‑rated machine control inputs (safety relay or safety PLC).

• Warning field outputs can be used for pre‑warning signals or speed reduction.

Related Products:

• System plug for S300 Mini – configuration memory storage (order separately)

• Flexi Soft safety controller – EFI‑compatible for expanded monitoring

• CDS (Configuration and Diagnostic Software) – for scanner configuration and diagnostics

• M12 8‑pin female connector cable – extension cable for scanner connection
