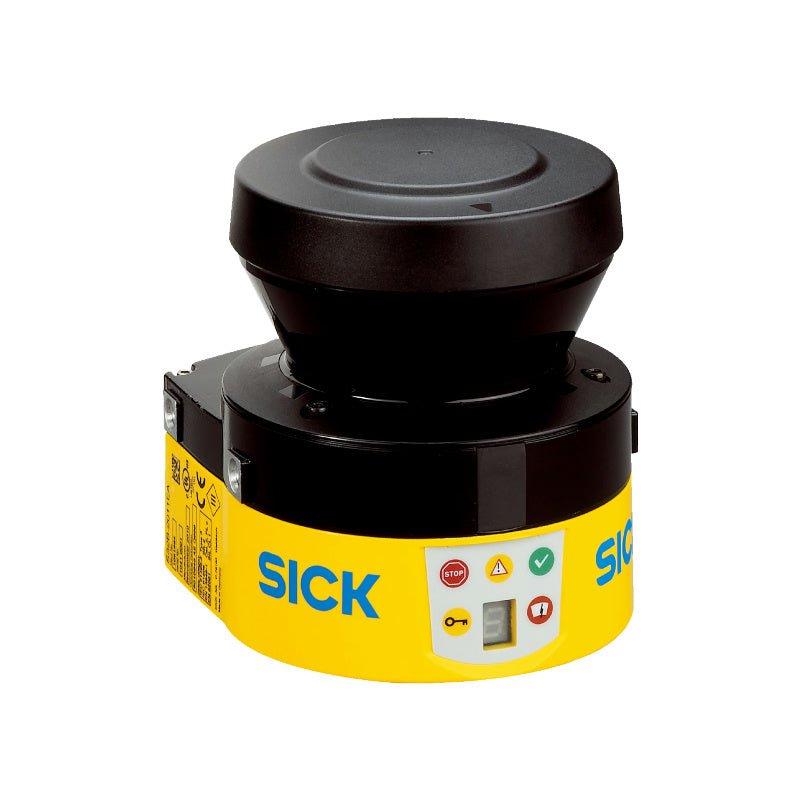

SICK S32B-3011EA Safety Laser Scanner 3m Protective Field 270° IP65

SICK S32B-3011EA is a compact safety laser scanner from the S300 Mini Remote series, designed for indoor safety applications requiring precise area monitoring and protection. Provides a 3 m protective field range and an 8 m warning field range, with a 270° scanning angle for comprehensive coverage. Type 3 (IEC 61496), SIL 2 (IEC 61508), and PL d (EN ISO 13849) certified. Suitable for automated guided vehicles (AGVs), robotic cells, and machinery with restricted spaces.

Applications:

• Automated Guided Vehicles (AGVs): collision prevention and navigation safety

• Machine guarding and area protection for hazardous zones

• Robotic cells and automated workstations

• Access control and restricted zone monitoring

Technical Specifications:

• Protective field range: 3 m

• Warning field range: 8 m (at 15% reflectivity)

• Scanning angle: 270°

• Response time: ≤ 80 ms

• Configurable fields: 48 fields, 16 switchable field sets

• Resolution (configurable): 30 mm to 150 mm

• Safety level: Type 3 (IEC 61496), SIL 2 (IEC 61508), PL d (EN ISO 13849)

• Supply voltage: 24 V DC

• Enclosure rating: IP65

• Housing material: Aluminum die‑cast with polycarbonate optics cover

• Operating temperature: –10 °C … +50 °C

• Connection: M12 7‑pin male connector with 250 mm cable

System Integration:

• Part of the SICK S300 Mini Remote series.

• EFI (Enhanced Function Interface) enables network connectivity with safety controllers such as Flexi Soft.

• Dynamic field switching allows protection zones to change based on machine status.

• Configuration via SICK Safety Designer software.

• Mounting via standard brackets (not included).

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (IEC 61496‑1, EN ISO 13849‑1, IEC 61508).
