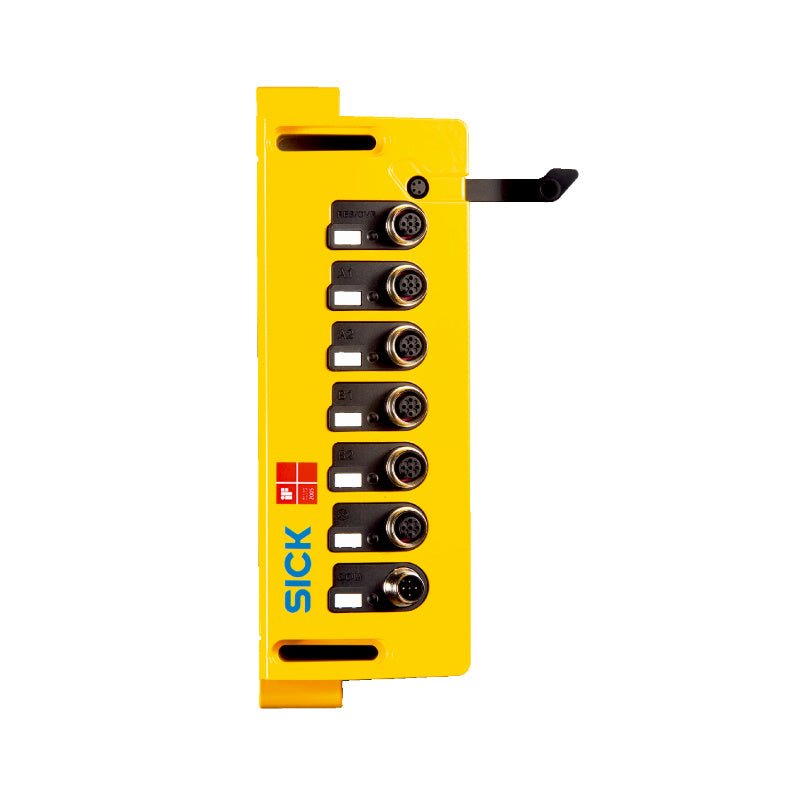

SICK UE403-A0930 1026287 Muting Switching Amplifier

SICK UE403 is a muting switching amplifier for automated material transport systems. Together with the M4000 Advanced multiple light beam safety device, it forms an access protection solution with muting function. The device is configured via RS-232 interface using SICK CDS (Configuration & Diagnostic Software). Aluminum die-cast housing. Supports muting with override and integrated functions for monitoring muting cycles. IP65 enclosure rating.

Applications:

• Automated material transport with muting

• Access protection systems in logistics and material handling

• Conveyor systems requiring temporary suspension of safety light curtain

• Remote muting applications with M4000 Advanced safety device

Core Specifications:

• Product type: Muting switching amplifier

• Compatible device: M4000 Advanced multiple light beam safety device

• Connections: 2-4 muting sensors, external muting lamp, reset and override control switch, belt stop signal

• Supply voltage VS: 24 V DC (19.2 V DC … 28.8 V DC)

• Power consumption: ≤ 2 A

• Enclosure rating: IP65

• Housing material: Aluminum die cast, powder coated

• Dimensions (W × H × D): 76.5 mm × 225.2 mm × 40 mm

• Weight: approx. 600 g

Functions:

• Concurrence monitoring

• Monitoring of total muting time

• Sensor gap monitoring

• Sensor testing

• Partial blanking

• End of muting via the ESPE

• Integrated override

Safety Ratings:

• Type: Type 4 (IEC 61496-1)

• Safety integrity level: SIL3 (IEC 61508), SILCL3 (EN 62061)

• Category: Category 4 (EN ISO 13849)

• Performance level: PL e (EN ISO 13849)

• PFHD: 1.0 × 10⁻⁸ (EN ISO 13849)

• Mission time (TM): 20 years (EN ISO 13849)

Interfaces:

• Connection type: Female connector M12, 5-pin

• Permitted cable length: ≤ 10 m

• Diagnostic display: LEDs

Ambient Conditions:

• Ambient operating temperature: –30 °C … +55 °C

• Storage temperature: –30 °C … +70 °C

• Air humidity: 15 % … 95 %, non-condensing

• Vibration resistance: 10 Hz … 55 Hz (EN 60068-2-6)

• Shock resistance: 10 g, 16 ms (IEC 60068-2-29)

System Integration:

• Belongs to the SICK UE403 family of muting switching amplifiers.

• Designed for use with M4000 Advanced multiple light beam safety device.

• Configuration using CDS (Configuration & Diagnostic Software) via RS-232 interface.

• Flexible mounting on the M4000 Advanced or directly in the system.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, cULus, RoHS).

Related Products:

• M4000 Advanced – multiple light beam safety device

• 6021195 – connecting cable for PC and UE403 or M4000

• RS-232 interface cable
