UE410-MU3T5 Flexi Classic Safety Controller Main Module | SICK
UE410-MU3T5 Flexi Classic Safety Controller Main Module | SICK
13 in stock
Couldn't load pickup availability

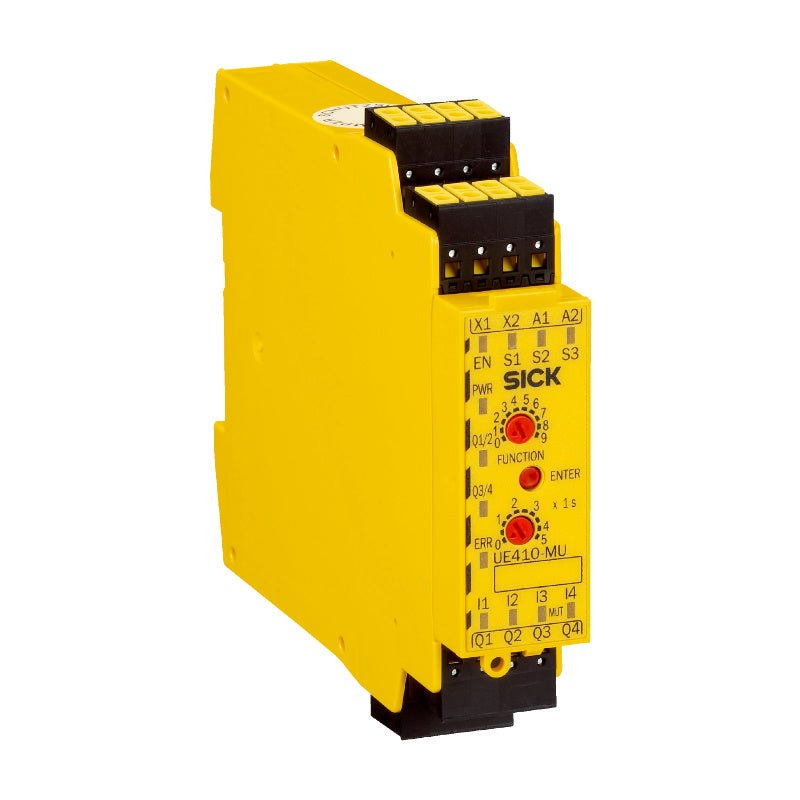

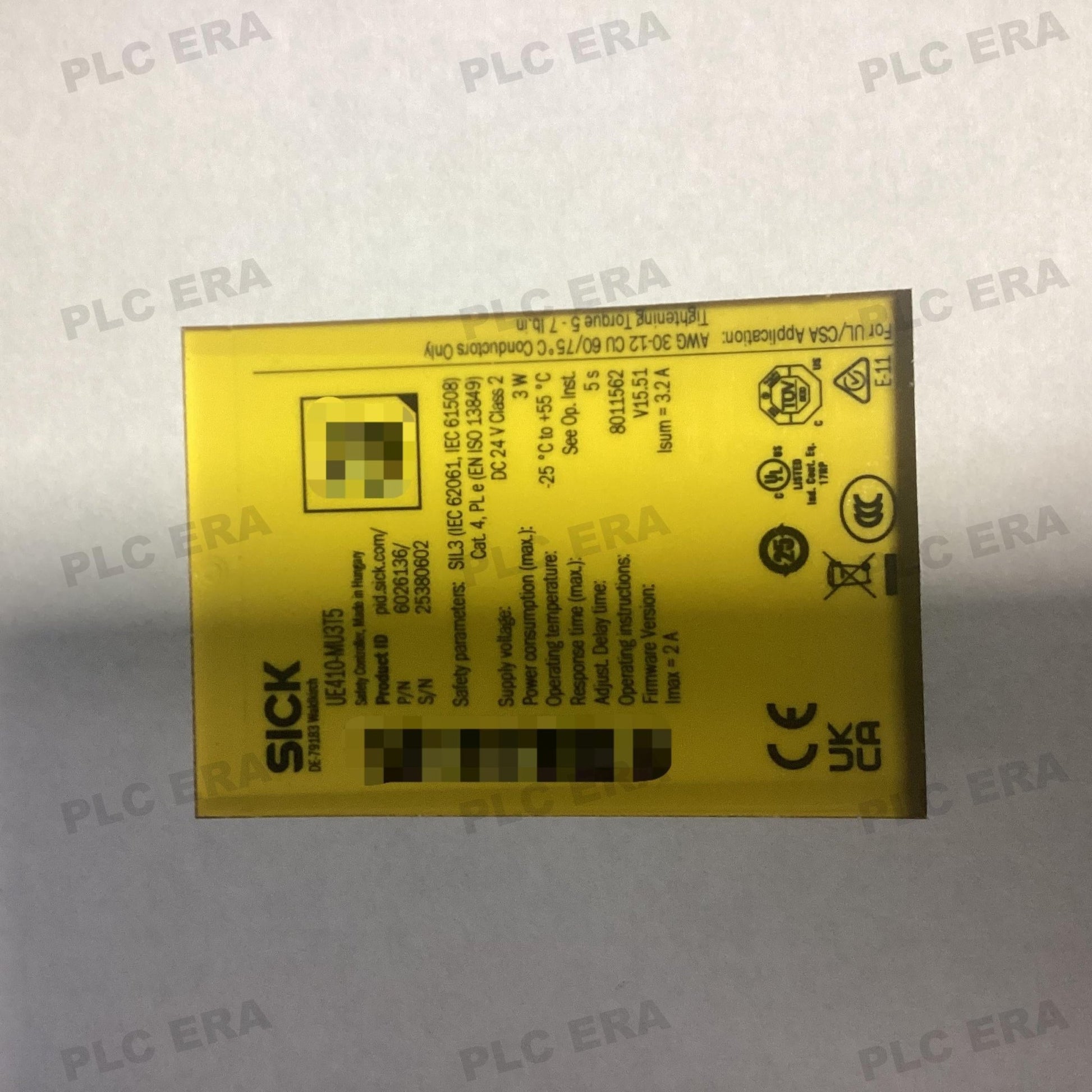

The Original New SICK UE410-MU3T5 (6026136) is a main module for the Flexi Classic safety controller series, designed for machine safety systems requiring configurable logic and reliable protection control. It provides a central processing unit that combines safety inputs, switching inputs, and safety outputs with configurable logic functions, achieving SIL 3 (IEC 61508), SILCL 3 (EN 62061), PL e, and Category 4 (EN ISO 13849) safety performance. The module is configured via rotary switches for straightforward setup, supports modular expansion, and features plug-in screw terminals for fast module replacement. Powerful PNP semiconductor outputs (2 A each) allow the removal of external relays, while clear LED indicators simplify diagnostics and reduce downtime.
Core Engineering Highlights:
SIL 3 (IEC 61508) / SILCL 3 (EN 62061) | PL e / Category 4 (EN ISO 13849) | PFHd 2.5 × 10⁻⁹ | 4 safety inputs + 4 switching inputs | 4 safety outputs + 2 test outputs | Output delay Q3/Q4: 0–5 s | 24 V DC supply (19.2–30 V DC) | Plug-in screw terminals | 22.5 mm width | IP40 housing / IP20 terminals
Key Features:
-
Original New SICK UE410-MU3T5 main module (part no. 6026136)
-
Central processing unit for the Flexi Classic safety controller system
-
Configurable via rotary switches — no software required
-
4 safety inputs and 4 switching inputs for connecting safety devices
-
4 safety outputs (PNP semiconductors, 2 A each, short-circuit protected and cross-circuit monitored)
-
2 test outputs for diagnostics
-
Adjustable output delay for Q3/Q4: 0 s to 5 s
-
Configurable logic functions: AND, OR, Bypass, and Muting
-
Restart interlock (manual/automatic) and external device monitoring (EDM)
-
Supports muting with 0 or 2 muting sensors
-
LED indicators for clear status diagnostics and reduced downtime
-
Plug-in screw terminals enable fast module replacement
-
Modularly expandable when more inputs and outputs are required
-
Removes the need for external relays thanks to powerful PNP semiconductor outputs
Applications:
-
Emergency stop pushbutton monitoring
-
Opto-electronic protective devices (light curtains, safety sensors)
-
Non-contact safety switches and electro-mechanical safety switches
-
Two-hand control systems
-
Testable inductive sensors
-
Machine safety systems requiring configurable logic (AND/OR/Bypass/Muting) up to PL e / SIL 3
Technical Specifications:
| Attribute | Specification |
|---|---|
| Catalog Number | UE410-MU3T5 |
| Part Number | 6026136 |
| Product Family | SICK Flexi Classic |
| Module Type | Main module |
| Configuration Method | Rotary switch |
| Safety Integrity Level | SIL 3 (IEC 61508) / SILCL 3 (EN 62061) |
| Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| PFHd | 2.5 × 10⁻⁹ (EN ISO 13849) |
| Mission Time (TM) | 20 years (EN ISO 13849) |
| Stop Category | 0 (EN 60204) |
| Safety Inputs | 4 |
| Switching Inputs | 4 |
| Number of Muting Sensors | 0 / 2 |
| Safety Outputs | 4 (PNP semiconductor, short-circuit protected, cross-circuit monitored) |
| Test Outputs | 2 |
| Output Current | 2 A per output |
| Output Voltage | 18 V DC … 30 V DC |
| Delay Time (Q3/Q4) | 0 s … 5 s |
| Response Time | 13 ms … 79 ms (depending on selected program and connected sensors) |
| Supply Voltage | 24 V DC (19.2 V DC … 30 V DC) |
| Power Consumption | 3 W |
| Residual Ripple | ≤ 3 V |
| Switch-On Time | 60 s |
| Short-Circuit Protection | 4 A gG |
| Input Voltage HIGH | 13 V DC … 30 V DC |
| Input Voltage LOW | -5 V DC … 5 V DC |
| Input Current HIGH | 2.4 mA … 3.8 mA |
| Input Current LOW | -2.5 mA … 2.1 mA |
| Switch-On Time of Inputs | 70 ms |
| Synchronous Time Monitoring | 1,500 ms (program 2) / 500 ms (program 4 and 5) |
| Connection Type | Plug-in screw-type terminals |
| Permitted Cross-Section (1×) | 0.14 mm² … 2.5 mm² (single/fine wire); 0.25 mm² … 2.5 mm² (finely stranded with ferrules) |
| Permitted Cross-Section (2×) | 0.14 mm² … 0.75 mm² (single/fine wire); 0.25 mm² … 0.5 mm² (finely stranded with ferrules) |
| Display Elements | LEDs |
| Fieldbus / Industrial Network | CANopen, DeviceNet™, EtherNet/IP, Modbus TCP, PROFIBUS DP, PROFINET (via gateway) |
| Protection Class | III (EN 61140) |
| Enclosure Rating (Housing) | IP40 |
| Enclosure Rating (Terminals) | IP20 |
| Ambient Operating Temperature | –25°C … +55°C |
| Storage Temperature | –25°C … +70°C |
| Air Humidity | 15% … 95%, non-condensing |
| Vibration Resistance | 5 g, 5 Hz … 500 Hz (EN 60068-2-6) |
| EMC | EN 61000, EN 55011 |
| Dimensions (W × H × D) | 22.5 mm × 96.5 mm × 120.8 mm |
| Weight | Approx. 180 g |
System Compatibility:
-
Part of the SICK Flexi Classic modular safety controller system.
-
Expandable with additional Flexi Classic expansion modules when more inputs and outputs are required.
-
Fieldbus integration via gateway for CANopen, DeviceNet™, EtherNet/IP, Modbus TCP, PROFIBUS DP, and PROFINET.
-
Configured via rotary switches; no proprietary configuration software required for basic setup.
-
Suitable for integration into machine safety circuits with emergency stop devices, safety switches, light curtains, and two-hand control systems.
Related Products:
-
UE410-4RO – Relay output expansion module for Flexi Classic
-
UE410-2RO – Relay output expansion module (2 outputs) for Flexi Classic
-
UE410-MU3T5 – Current main module
-
UE410-XU3T5 – Expansion module for additional inputs/outputs
-
Flexi Classic Gateway – Fieldbus gateway for PROFIBUS DP, DeviceNet, EtherNet/IP, Modbus TCP, CANopen, PROFINET
PLC ERA is an independent industrial automation distributor supplying genuine Original New products through established global supply channels. All products are factory sealed when applicable and undergo quality inspection prior to shipment. SICK and Flexi Classic are trademarks of SICK AG.
