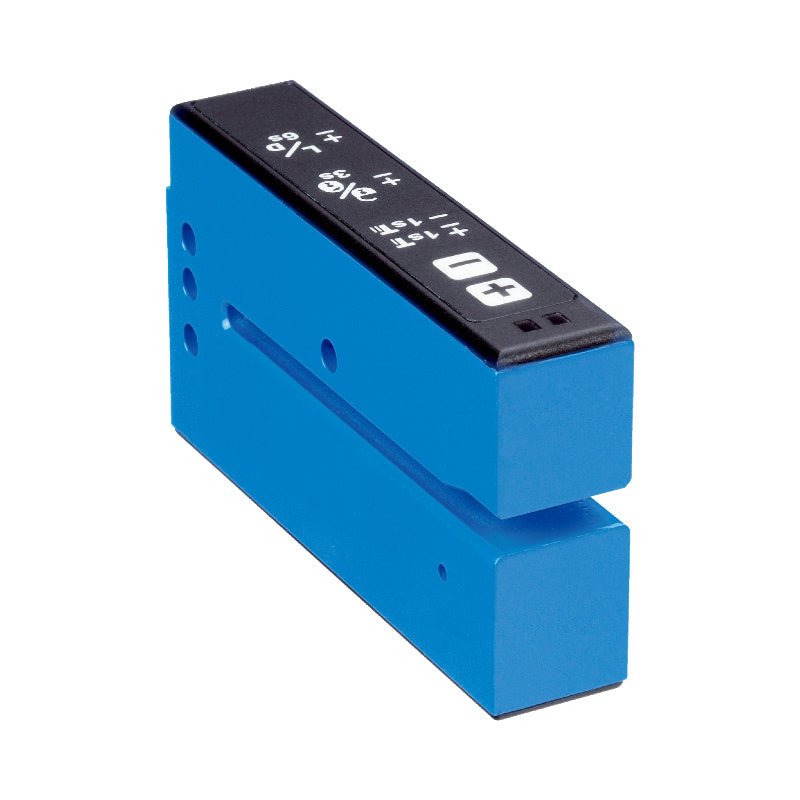

SICK UFN3-70B413 6049678 Ultrasonic Fork Sensor Label Sensor

SICK UFN3-70B413 is an ultrasonic fork sensor for reliable detection of labels and materials regardless of printed design, transparency or surface characteristics. Unlike optical sensors, it operates on ultrasonic detection principle where the thickness of a material determines the degree to which the sensor absorbs sound waves. Detects 2 mm spaced labels and objects including transparent labels on transparent film. 3 mm fork width, 69 mm fork depth, 18 × 47.5 × 92.5 mm aluminium housing, IP65. 250 µs response time, 1,500 Hz switching frequency, PNP/NPN push-pull output, M8 4-pin male connector.

Applications:

• Label detection on adhesive tape, transparent film and metallic foils

• Transparent, opaque or printed label sensing

• Single- vs two-ply material differentiation

• Double‑sheet detection for multi‑layer materials

• Packaging machinery and labelling equipment

• Automated production lines in food, beverage and printing industries

Technical Specifications:

• Functional principle: Ultrasonic detection

• Housing dimensions (W × H × D): 18 mm × 47.5 mm × 92.5 mm

• Fork width: 3 mm

• Fork depth: 69 mm

• Minimum detectable object: 2 mm (gap between labels or label size)

• Supply voltage: 10 … 30 V DC

• Residual ripple: < 10 %

• No‑load current consumption: 40 mA

• Switching frequency: 1.5 kHz

• Response time: 250 µs (signal transit time, resistive load)

• Switching output: PNP, NPN

• Switching mode: Light/dark switching (selectable)

• Output current Imax.: 100 mA

• Output current min.: 0.03 mA

• Initialisation time: 100 ms

• Connection type: Male connector M8, 4‑pin

• Enclosure rating: IP65

• Housing material: Metal, aluminium

• Weight: approx. 95 g

• Ambient storage temperature: –20 °C … +70 °C

• Ambient operating temperature: +5 °C … +55 °C

• Shock resistance: According to EN 60068‑2‑27

• Electromagnetic compatibility: EN 60947‑5‑2

• UL File No.: NRKH.E191603 & NRKH7.E191603

• Protection class: III

System Integration:

• Belongs to SICK UF series of ultrasonic fork sensors.

• Adjustable via plus/minus buttons for teach‑in, sensitivity setting and light/dark switching, eliminating the need for external tools.

• M8 4‑pin male connector mates with standard industrial M8 female cables; wiring details available in product manual.

• Mount with supplied nuts via mounting holes.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• UFN3-70N415 (6049680) – NPN output variant

• UFN3-70B417 (6058742) – Alternative configuration with teach‑in button

• YF2A14-xxxVB3XLEAX – M12 straight female connector cable, 5‑pin, various lengths (2 m, 5 m, 10 m), PVC

• BEF‑WU – Mounting bracket for flexible sensor positioning
