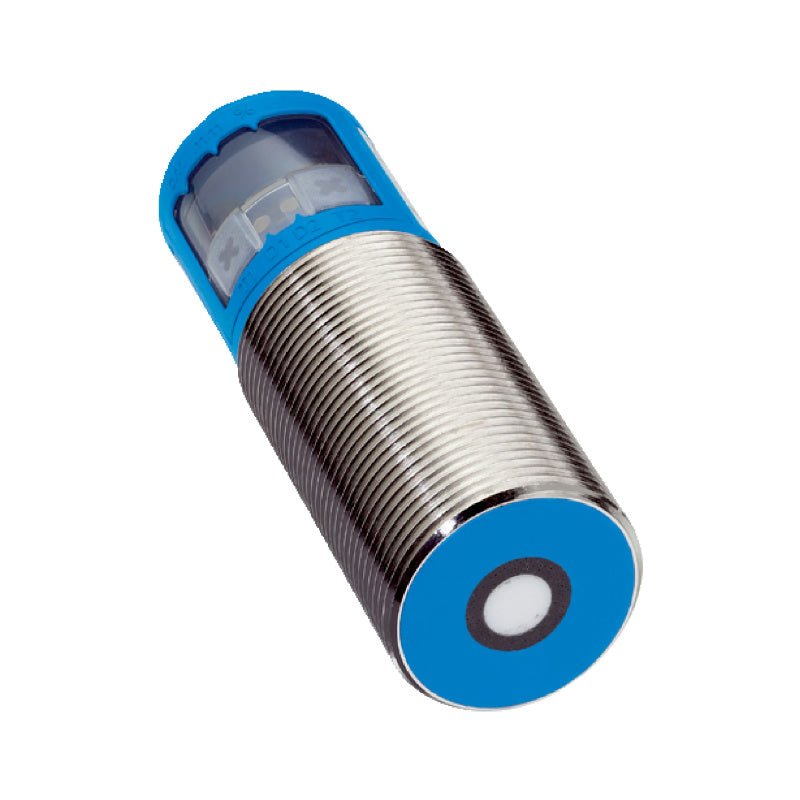

SICK UM30-212112 6037665 Ultrasonic Distance Sensor 65-350mm

SICK UM30-212112 is an ultrasonic proximity sensor for non-contact distance measurement in industrial automation. M30 threaded housing, PNP switching output, 9-30 V DC supply voltage. IP65/IP67 rated. Reliable detection of glass, liquids, transparent films, and coloured objects.

Applications:

• Distance measurement on conveyor systems

• Fill‑level monitoring of tanks and silos

• Object detection with colour or transparency variations

• Packaging and material handling automation

Core Specifications:

• Sensing range: 65 mm … 350 mm (limiting range 600 mm)

• Supply voltage: 9 V DC … 30 V DC

• Power consumption: ≤ 2.4 W

• Switching output: PNP, 2× (NO/NC selectable)

• Output current: ≤ 200 mA

• Switching frequency: 12 Hz

• Response time: 64 ms

• Ultrasonic frequency: 400 kHz

• Resolution: ≥ 0.18 mm

• Repeatability: ≤ 0.15%

• Temperature compensation: Integrated

• Operating modes: Switching point (DtO), switching window (Wnd), object between sensor and background (ObSB)

• Connection: M12 male connector, 5‑pin

Advanced Specifications:

• Enclosure rating: IP65 / IP67

• Housing material: Nickel‑plated brass, PBT

• Transducer material: Polyurethane foam, glass epoxy resin

• Display: 2‑digit LED plus 2× LED indicators

• Operating temperature: –25 °C … +70 °C

• Storage temperature: –40 °C … +85 °C

• Dimensions (length × diameter): 84 mm × 30 mm

• Thread size: M30 × 1.5

• Weight: approx. 150 g

System Integration:

• Part of SICK UM30 series of ultrasonic sensors.

• Mounts via M30 thread (two nuts supplied).

• Synchronisation pin (pin 5) allows parallel operation of multiple sensors without mutual interference.

• Parameterisable via push‑buttons and display; no external software required for basic setup.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• YF2A15‑xxxUB5M2A15 – M12 5‑pin female connector cables

• BEF‑WN‑M30 – mounting bracket for M30 sensors

• BEF‑KF‑M30 – flexible mounting accessories
