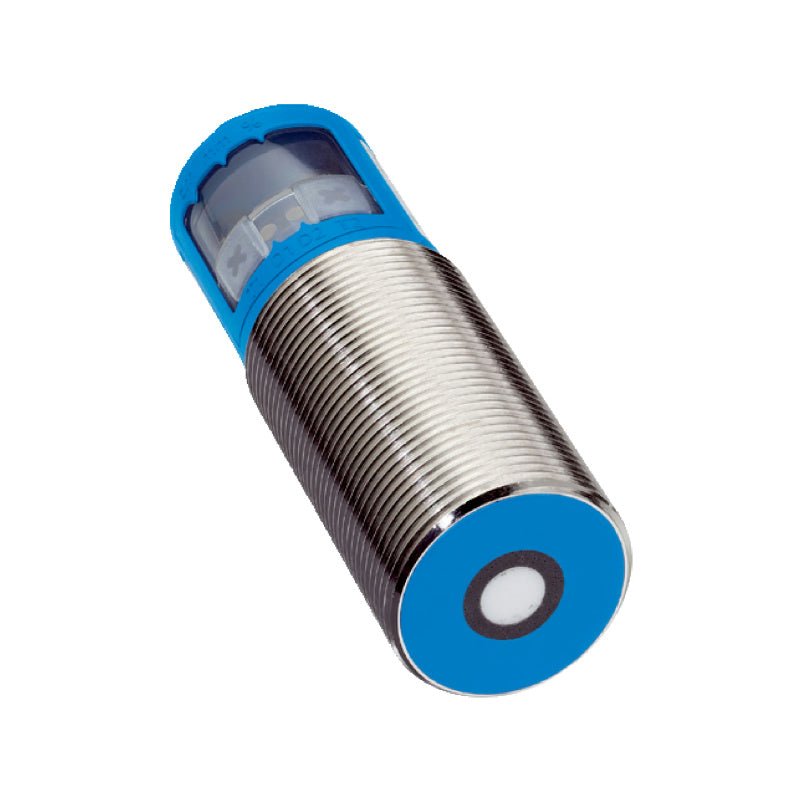

SICK UM30-213113 6036918 Ultrasonic Distance Sensor

SICK UM30-213113 is an ultrasonic distance sensor designed for non‑contact detection and continuous distance measurement in industrial automation. It operates independently of surface colour, transparency, gloss, and ambient light, with high immunity to dust, dirt, fog, and vapour. The sensor provides a configurable analog output (0–10 V or 4–20 mA), an integrated display with push‑buttons for on‑site parameterisation, and a rugged M30 nickel‑plated brass housing rated IP65/IP67. Intended for position detection, fill‑level monitoring, and presence sensing in material handling, packaging, logistics and process automation.

Applications:

• Conveyor object presence and distance‑to‑object measurement

• Fill‑level monitoring of silos, tanks and bulk containers

• Position detection in material handling and logistics systems

• Transparent film and liquid surface detection

Core Specifications:

• Sensing range: 200 mm … 1,300 mm (limiting range 2,000 mm)

• Light source: Ultrasound (200 kHz typical)

• Resolution: ≥ 0.18 mm

• Repeatability: ± 0.15 %

• Accuracy: ± 1 % (with temperature compensation activated)

• Output: 1 × analog configurable as 4–20 mA (current) or 0–10 V (voltage); automatic selection dependent on load

• Analog output load: current output ≤ 500 Ω, voltage output ≥ 100 kΩ

• Response time: 92 ms

• Switching frequency: 6 Hz

• Supply voltage: 9 … 30 V DC (15 … 30 V when using analog voltage output)

• Power consumption: ≤ 2.4 W

Advanced Specifications:

• Operating modes: distance to object (DtO), window (Wnd), object between sensor and background (OBSB)

• Additional functions: teach‑in of analog output, scaling and invertible analog output, adjustable measurement filters (measured value filters, filter strength, foreground suppression, detection area, sensitivity and sound beam), synchronisation and multiplexing for up to 50 sensors without cross‑talk, display can be deactivated, reset to factory default

• Temperature compensation: integrated (can be switched off; without compensation: 0.17 %/K)

• Synchronisation/multiplex: via pin 5 (Sync/Multi)

• Initialisation time: < 300 ms

• Ultrasonic frequency: 200 kHz (typical)

• Housing material: nickel‑plated brass, PBT, ultrasonic transducer containing polyurethane foam and glass epoxy resin

• Thread size: M30 × 1.5

• Connection type: M12 male connector, 5‑pin

• Protection rating: IP65 / IP67

• Dimensions (W × H × D): 30 mm × 30 mm × 84 mm

• Weight: 150 g

• Operating temperature: –25 °C … +70 °C (storage –40 °C … +85 °C)

• LED indicators: 2‑digit LED display with 2 LEDs

System Integration:

• Part of the SICK UM30 series of ultrasonic distance sensors.

• Parameterisation is performed locally via the integral push‑buttons and menu‑driven display; optional PC‑based configuration tool available for advanced visualisation, sensor cloning and data logging.

• Up to 50 sensors can be interconnected in parallel via pin 5 for synchronised measurement or for multiplex operation without mutual interference.

• The controller‑selectable analog output (current or voltage) accepts industrial standard load ranges; the output function can be configured as rising/falling, window or distance‑setpoint.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details.

Related Products:

• UM30‑211115 – variant with configurable two‑point switching output

• UM30‑212215 – variant with a different sensing output logic (typically 0‑10 V analog)

• BEF‑WN‑M30 (4057965) – steel, zinc‑coated mounting bracket for M30 sensors

• USP‑UM30 series – deflector mirror (90° sound deflection) for the UM30‑213xxx family

• Y‑type M12 5‑pin connection cables – various lengths for sensor wiring
