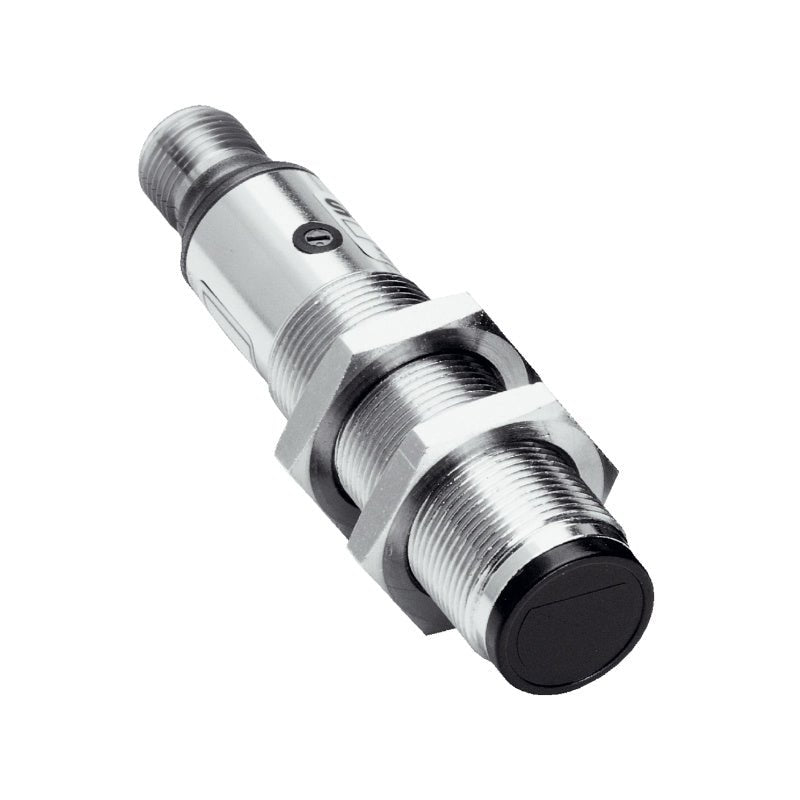

SICK VL18-4P3240 6013551 V18 Photoelectric Sensor

SICK V18 cylindrical photoelectric sensor for retro-reflective object detection at up to 3.7 m. Operates with a visible red LED, integrated polarizing filter, and adjustable sensitivity via 270° potentiometer. The compact M18 metal housing is rated IP67 for use in wet, dusty industrial environments.

Applications:

• Material handling on belt conveyors and roller tracks

• Pick‑and‑place stations for positioning, counting, and empty detector

• Door monitoring for operation and safety tasks

【Technical Specifications】
Core Specifications

• Functional principle: Photoelectric retro‑reflective sensor

• Sensing range max.: 0.05 m … 3.7 m (with reflector C110A)

• Sensing range: 0.05 m … 3 m

• Light source: LED, visible red light, λ = approx. 630 nm

• Light spot size: Ø 150 mm (at 3 m)

• Supply voltage: 10 V DC … 30 V DC

• Switching output: PNP (light/dark switching, selectable via L/D control cable)

• Output current Imax.: ≤ 100 mA

• Response time: ≤ 2 ms

• Switching frequency: 250 Hz

Mechanical Specifications

• Dimensions (W × H × D): 18 mm × 18 mm × 78 mm

• Housing design: Cylindrical, axial beam exit

• Thread diameter: M18 × 1

• Connection type: Male connector M12, 4‑pin

• Housing material: Metal (nickel-plated brass)

• Optics material: Plastic (PMMA)

• Weight: 120 g

Environmental & Electrical Protection

• Enclosure rating: IP67 (IEC 60529)

• Circuit protection: A (reverse polarity), B (I/O reverse polarity), C (interference suppression), D (overcurrent & short‑circuit)

• Protection class: III

• Ambient operating temperature: –25 °C … +70 °C

• Ambient storage temperature: Typ. –40 °C … +75 °C

• No‑load current consumption: ≤ 30 mA

Optical Specifications

• Focus / angle of dispersion: Approx. 2.8°

• Adjustment: Potentiometer, 270° (sensitivity)

• Polarizing filter: Integrated

System Integration

• Belongs to SICK V18 series of cylindrical photoelectric sensors.

• Requires a separate retro‑reflector for operation (not included).

• Wire the M12 4‑pin male connector (pin 1: V+, pin 3: V‑, pin 4: output; pin 2 not connected) to a PNP PLC input; select light‑on or dark‑on mode via the L/D control cable.

• Adjust sensitivity by turning the 270° potentiometer.

Compliance
Refer to manufacturer official documentation for detailed certification and compliance information.
