VL18-4P3940 Cylindrical Retro-reflective Sensor 3.7m PNP IP67 | SICK

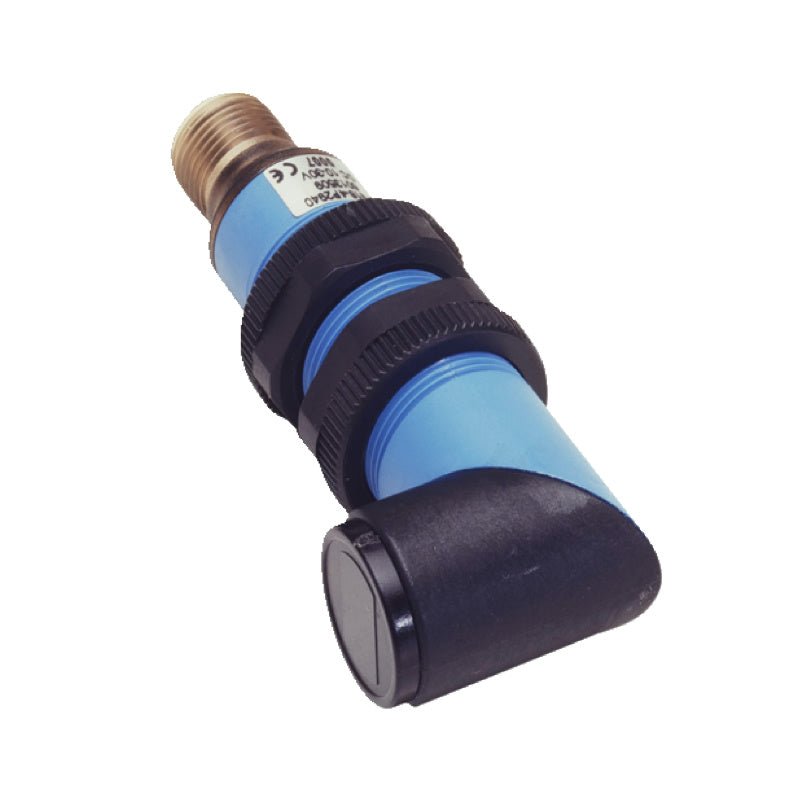

The Original New SICK VL18-4P3940 (6013659) is a cylindrical photoelectric retro-reflective sensor from the V18 series, designed for reliable object detection in industrial automation. Its M18 threaded plastic housing (PBT/PC) with radial optical axis and visible red LED light source enables straightforward installation in standard mounting holes. The sensor provides a PNP output with light/dark switching selectable via control wire, and sensitivity is adjustable through a 270° potentiometer. Rated IP67, it is suitable for washdown and dust-prone environments. The VL18-4P3940 is a versatile solution for conveyor, packaging, and general discrete automation applications.

Core Engineering Highlights:
Photoelectric retro-reflective sensor | 0.05 m … 3.7 m maximum sensing range (with C110A reflector) | Visible red LED, 650 nm | PNP output, light/dark switching selectable | ≤ 2 ms response time / 250 Hz switching frequency | 10–30 V DC supply voltage | IP67 enclosure rating | M12 4-pin connector | 18 × 18 × 75 mm cylindrical housing | –25°C to +70°C operating temperature

Key Features:

• Original New SICK VL18-4P3940 sensor (part no. 6013659)

• Cylindrical M18 × 1 threaded plastic housing (PBT/PC) with radial optical axis

• Visible red LED light source with Ø 150 mm light spot at 3 m

• PNP output with light/dark switching selectable via control wire

• 270° potentiometer for sensitivity adjustment

• Polarising filter for reliable detection of reflective targets

• IP67 protection rating for washdown and dusty environments

• M12 4-pin connector for quick electrical connection

• Circuit protection: reverse polarity (A, B), interference suppression (C), output overcurrent and short-circuit (D)

Applications:

• Conveyor part presence detection in assembly lines

• Object counting in packaging and labelling systems

• End-of-travel sensing on pneumatic actuators

• Small-part detection in pick-and-place machines

• General discrete automation cells requiring retro-reflective sensing

Technical Specifications:

Footnotes:
¹ Reflector C110A.
² Average service life: 100,000 h at TU = +25°C.
³ Limit values.
⁴ May not exceed or fall below UV tolerances.
⁵ Without load.
⁶ Control wire open: dark switching D.ON.
⁷ Signal transit time with resistive load.
⁸ With light/dark ratio 1:1.
⁹ A = UV connections reverse-polarity protected; B = inputs and output reverse-polarity protected; C = interference pulse suppression; D = outputs overcurrent and short-circuit protected.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M12 4-pin connector mates with standard M12 female cordsets.

• Requires a suitable reflector for operation (e.g., C110A for maximum 3.7 m range).

• Mounts via M18 × 1 threaded body using supplied nuts.

Related Products:

• C110A – Standard reflector for 3.7 m sensing range

• P250 – 47 × 47 mm rectangular reflector for alternative mounting

• VL18-4P3940S – Variant with different connection or feature set (verify)

• VL18-4N3940 – NPN output version of the same sensor family

• YF2A14-xxxVB3XLEAX – M12 straight female cordset, 4-pin, various lengths

• BEF-W18 – Mounting bracket for V18 series sensors (if required)
