VL18L-4P324 Retro-reflective Laser Sensor 35m PNP Class 1 | SICK

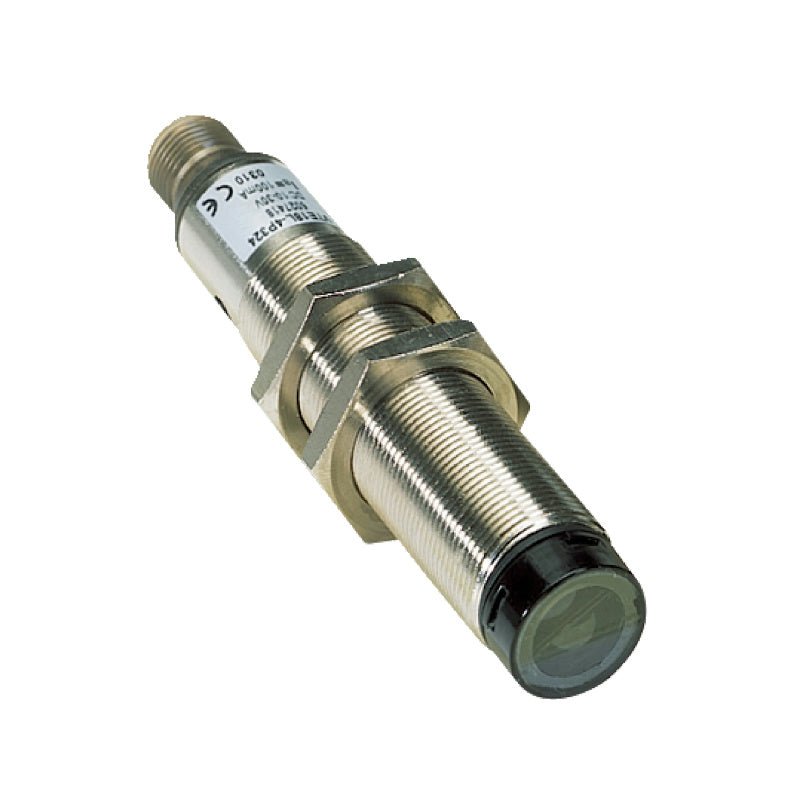

The Original New SICK VL18L-4P324 (6027430) is a cylindrical photoelectric retro-reflective sensor from the V18 Laser series, engineered for long-range object detection with a visible red laser light source. Its M18 × 1 threaded metal housing with axial optical axis enables straightforward integration into standard mounting configurations. The sensor provides a PNP output with light/dark switching selectable via control input C, and sensitivity can be adjusted either electronically or via the single teach-in button. Rated IP67, it is designed for reliable operation in demanding industrial environments, with a maximum sensing range of 35 m (30 m rated) when paired with the P250F reflector.

Core Engineering Highlights:
Photoelectric retro-reflective sensor with dual-lens system (minimum distance to reflector) | 0.1 m … 35 m maximum sensing range (0.1 m … 30 m rated) | Visible red laser, 650 nm, Class 1 | PNP output, light/dark switching selectable via control input C | 0.625 ms response time / 800 Hz switching frequency | 10–30 V DC supply voltage | IP67 metal housing | M12 4-pin connector | 18 × 18 × 97.7 mm cylindrical | –10°C to +50°C operating temperature

Key Features:

• Original New SICK VL18L-4P324 sensor (part no. 6027430)

• Cylindrical M18 × 1 threaded metal housing with axial optical axis

• Visible red laser light source (650 nm) with Ø 9 mm light spot at 35 m

• Laser Class 1 (IEC 60825-1) — eye-safe under normal operating conditions

• PNP output with light/dark switching, selectable via control input C

• Sensitivity adjustment via single teach-in button or electronically

• Special application: detecting small objects

• IP67 protection rating for washdown and dusty environments

• M12 4-pin connector for quick electrical connection

Applications:

• Long-range object detection on conveyor and material handling systems

• Small-object detection in packaging and assembly lines

• Presence and position monitoring in logistics and warehouse automation

• General factory automation requiring extended sensing distances

• Applications with reflective targets requiring dual-lens retro-reflective sensing

Technical Specifications:

Footnotes:
¹ Reflector P250F.
² Average service life: 100,000 h at T_a = +25°C.
³ Do not intentionally look into the laser beam. Never point the laser beam at people's eyes.
⁴ Electronically via control input C (0 V).
⁵ Manual, via teach-in button.
⁶ Without load.
⁷ Signal transit time with resistive load.
⁸ With light/dark ratio 1:1.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M12 4-pin male connector mates with standard M12 female cordsets.

• Requires a suitable reflector for operation (P250F recommended for maximum 35 m range).

• Configuration via on-device teach-in button or control input C; no software required.

Related Products:

• P250F – Fine triple reflector for maximum 35 m sensing range

• VL18L-4P324S01 – Variant with different connection or feature set

• VL18-4P3940 – Standard V18 series variant with 3.7 m sensing range

• YF2A14-xxxVB3XLEAX – M12 straight female cordset, 4-pin, various lengths

• BEF-W18 – Mounting bracket for V18 series sensors (if required)
