SICK WL150-P430 6011038 W150 Miniature Retro-reflective Photoelectric Sensor PNP 2.4m

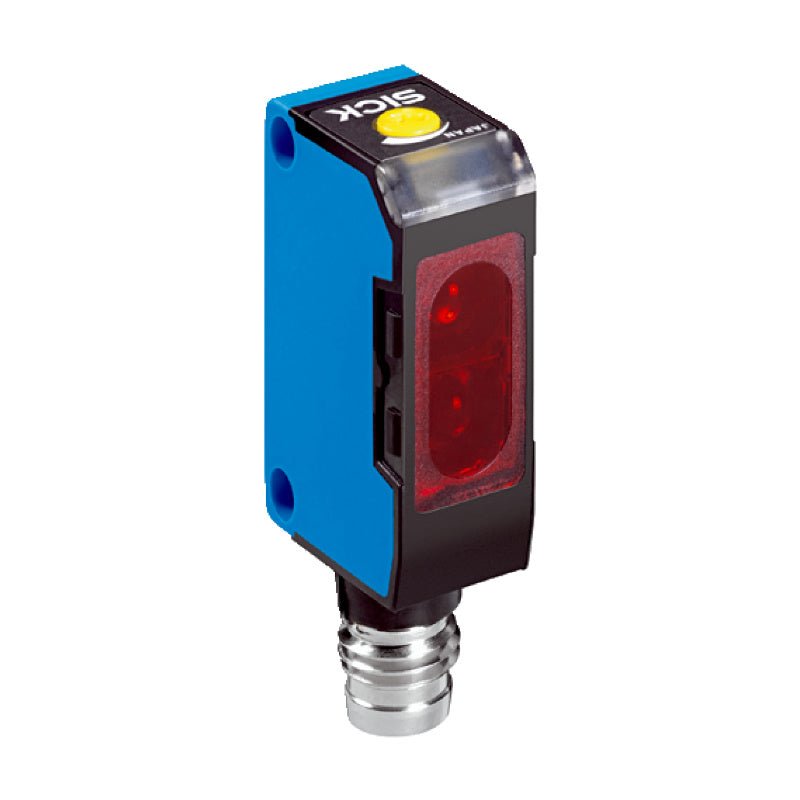

SICK WL150‑P430 (6011038) is a miniature retro‑reflective photoelectric sensor of the W150 series. It is based on a double‑lens optical system and a visible red LED light source. The integrated polarising filter suppresses false switching signals on shiny or reflective surfaces. The sensor is suitable for presence detection, position monitoring and counting tasks in industrial automation lines, including the detection of transparent objects.

Applications:

• Fast object presence and position monitoring on conveyor systems

• Transparent object detection in packaging and bottling machines (e.g. glass, plastic bottles, films)

• High‑speed counting and quality verification on production lines

• Positioning of components in pick‑and‑place installations

• Presence control of small parts in automated assembly cells

Core Specifications:

• Functional principle: Photoelectric retro‑reflective sensor (double‑lens system)

• Polarising filter: integrated

• Max. sensing range: 0 m … 2.4 m (with PL80A reflector)

• Typical sensing range: 0.01 m … 2 m (with PL80A reflector)

• Light source: LED, visible red light (λ = approx. 635 nm)【30†L8-L9】

• Light spot shape / size: spot‑shaped; approx. beam angulation ≈ 6°

• Supply voltage U_B: 10 … 30 V DC

• No‑load current consumption: ≤ 20 mA

• Switching output: PNP, light/dark switching selectable (via L/D control wire)

• Output current I_max.: ≤ 100 mA

• Response time: ≤ 0.5 ms

• Switching frequency: 1000 Hz (with 1:1 light/dark ratio)

• Adjustment: Potentiometer, 270°

• Electrical connection: Male connector M8, 4‑pin

• Pollution degree: 3

• Protection class: II (insulation)

• Enclosure rating: IP67

Advanced Specifications:

• Beam dispersion angle: approx. 6°

• Hysteresis: typ. ≤ 10 %

• Repeatability: ≤ 5 %

• Vibration resistance (IEC 60068‑2‑6): 10 … 55 Hz, 1 mm amplitude

• Shock resistance (IEC 60068‑2‑27): 30 g / 11 ms

• Ambient operating temperature: –25 °C … +55 °C

• Ambient storage temperature: –40 °C … +75 °C (min./max.)

• Housing material: Plastic, ABS

• Optics material: Plastic, PMMA

• Dimensions (W × H × D): 10 mm × 28 mm × 17.5 mm

• Weight: approx. 7 g (sensor only), gross weight (including accessories) approx. 50 … 60 g

• Items supplied: Mounting bracket BEF‑W150‑A, reflector PL20A (alternative to PL80A)

System Integration:

• This sensor belongs to the SICK W150 series of miniature photoelectric sensors.

• A separate reflector (e.g. PL20A or PL80A) is required for operation; PL20A is included in the scope of supply.

• Mount the sensor via the included BEF‑W150‑A bracket or optional mounting brackets.

• Wiring details: M8 4‑pin male connector (pin 1: V+, pin 3: V‑, pin 4: output); the light/dark switching function is selected via the L/D control wire.

• Adjust the sensing threshold by turning the 270° potentiometer.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, cULus, RoHS).

Related Products:

• PL80A – fine triple reflector for max. 2.4 m sensing range

• P250 – 47×47 mm rectangular reflector for standard applications

• BEF‑W150-A – mounting bracket for flexible sensor positioning (included)

• YF8U14‑xxxVB3XLEAX – M8 straight female connector cable, 4‑pin, various lengths, PVC

• YG8U14‑xxxVB3XLEAX – M8 angled female connector cable, 4‑pin, various lengths

• Alternative model: WL150‑P420 – same series, 0.01‑0.7 m range, with terminal connection (if longer range not required)

• Alternative model: GL6‑P4211 – newer G6 series, 6 m range, similar miniature housing (when replacement with extended range is needed)
