WL280-2P4331 Retro-Reflective Sensor PNP 15m Terminal | SICK

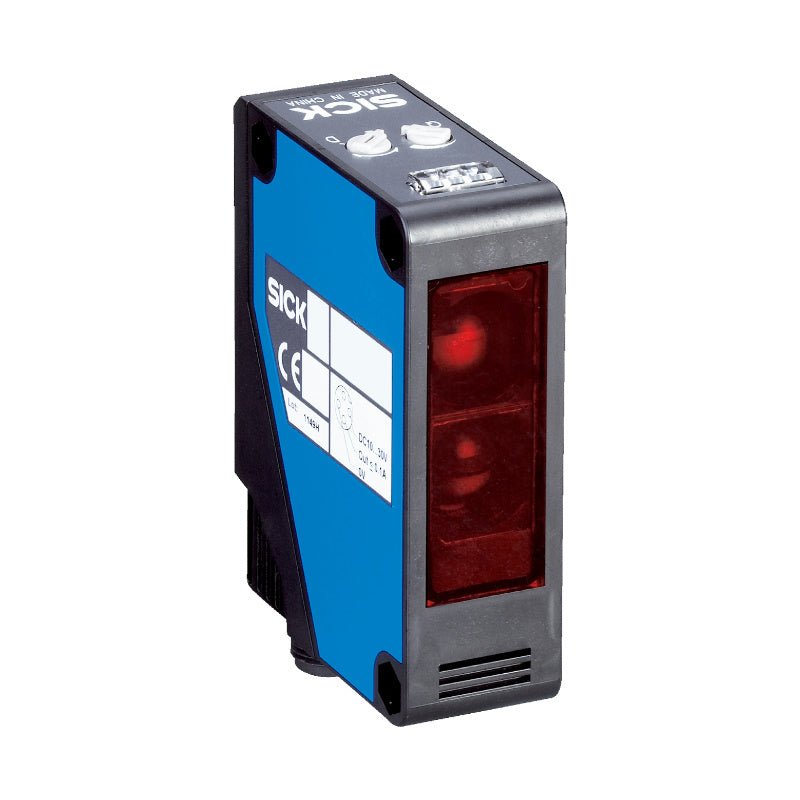

The Original New SICK WL280-2P4331 (6044732) is a compact photoelectric retro-reflective sensor from the W280-2 series, designed for reliable object detection in industrial automation. It uses a visible red LED light source and a dual-lens optical system to achieve a maximum sensing range of 0.01 m to 15 m with reflector PL80A (0.01 m to 12 m with P250). The sensor provides a PNP output with selectable light-on/dark-on switching via a rotary switch and is adjusted using a potentiometer. Housed in a rectangular ABS plastic enclosure rated IP66/IP67, it connects via screw terminals and is supplied with a P250 reflector and BEF-W280 mounting bracket.

Core Engineering Highlights:
Photoelectric retro-reflective sensor (dual-lens system) | 0.01–15 m max range (PL80A) / 0.01–12 m (P250) | PNP output, light/dark switching selectable | Visible red LED, 650 nm | Ø 260 mm light spot at 8 m | ≤ 0.5 ms response time / 1,000 Hz switching frequency | 10–30 V DC supply voltage | IP66 / IP67 enclosure | Screw terminal connection | 23.5 × 74.5 × 63 mm ABS housing | –25°C to +55°C operating temperature

Key Features:

• Original New SICK WL280-2P4331 sensor (part no. 6044732)

• Photoelectric retro-reflective sensor with dual-lens system

• Maximum sensing range of 15 m with reflector PL80A

• Visible red LED light source (average service life: 100,000 h at +25°C)

• PNP output with light/dark switching selectable via rotary switch

• Potentiometer for sensitivity adjustment

• Rectangular ABS plastic housing with IP66/IP67 protection

• Screw terminal connection for direct wiring

• Polarisation filter included

• Supplied with P250 reflector and BEF-W280 mounting bracket

Applications:

• Object presence and position detection on conveyor and material handling systems

• Packaging machinery for product sorting and verification

• Automated assembly line part detection

• Long-range retro-reflective sensing up to 15 m

• General factory automation and OEM equipment

Technical Specifications:

Footnotes:
¹ Reflector PL80A.
² Reflector P250.
³ Average service life: 100,000 h at TU = +25°C.
⁴ Limit values when operated in short-circuit protected network: max. 8 A.
⁵ May not exceed or fall below UV tolerances.
⁶ Without load.
⁷ Signal transit time with resistive load.
⁸ With light/dark ratio 1:1.
⁹ A = VS connections reverse-polarity protected.
¹⁰ B = inputs and output reverse-polarity protected.
¹¹ C = interference suppression.
¹² D = outputs overcurrent and short-circuit protected.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• Screw terminal connection for direct wiring to control systems.

• Requires a reflector for operation; P250 included, PL80A recommended for maximum 15 m range.

• Configuration via on-device potentiometer and light/dark rotary switch; no software required.

• Mount via the supplied BEF-W280 bracket.

Related Products:

• PL80A – Fine triple reflector for maximum 15 m sensing range

• P250 – 47 × 47 mm rectangular reflector (included)

• BEF-W280 – Mounting bracket (included)

• WL280-2P4331 – Current model, PNP, terminal connection

• WL280-2N4331 – NPN output variant, same sensing range

• YF2A14-020VB3XLEAX – M12 straight female cordset (for alternative connection configurations)
