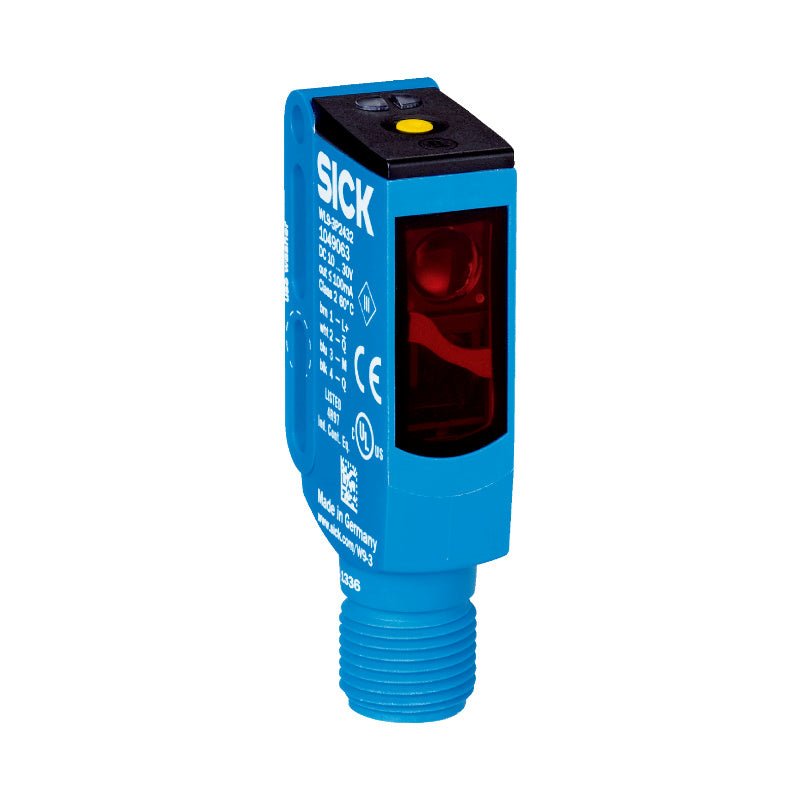

SICK WL9‑3P2462 1049061 W9‑3 Photoelectric Retro‑reflective Sensor PNP 400mm M12

SICK WL9‑3P2462 is a retro‑reflective photoelectric sensor from the W9 series. Autocollimation design with PinPoint LED visible red light (650 nm) and polarising filter for reliable detection of glossy, reflective, and small objects. Maximum sensing range 0.4 m. VISTAL® plastic housing rated IP66, IP67, IP69K. Single teach‑in button for adjustment. PNP output with selectable light/dark switching, M12 4‑pin male connector. Suitable for small part detection, packaging lines, and high‑speed automation.

Applications:

• Small part detection in pick‑and‑place and assembly automation

• Object positioning on high‑speed conveyor and sorting systems

• Packaging machinery for bottle, container, and label detection

• Material handling and logistics automation

• Detection of glossy, transparent or reflective objects

Technical Specifications:

• Part number: 1049061

• Functional principle: Photoelectric retro‑reflective sensor, autocollimation

• Sensing range max.: 0 m … 0.4 m (with PL80A reflector)

• Sensing range: 0 m … 0.3 m (with PL80A reflector)

• Light source: PinPoint LED, visible red light

• Wavelength: 650 nm

• Light spot size: Ø 2 mm at 35 mm

• Supply voltage: 10 V DC … 30 V DC

• Switching output: PNP

• Switching mode: Light/dark switching (selectable)

• Output current: ≤ 100 mA (≤ 50 mA at ambient > 50 °C)

• Response time: < 0.5 ms

• Switching frequency: 1,000 Hz

• Adjustment: Single teach‑in button

• Connection type: M12 male connector, 4‑pin

• Polarising filter: Yes

Advanced Specifications:

• Enclosure rating: IP66 / IP67 / IP69K

• Housing material: Plastic, VISTAL®

• Optics material: Plastic, PMMA

• Dimensions (W × H × D): 12.2 mm × 52.2 mm × 23.6 mm

• Weight: 13 g

• Ambient operating temperature: –40 °C … +60 °C

• Storage temperature: –40 °C … +75 °C

• Circuit protection: Reverse polarity, interference suppression, overcurrent and short‑circuit

• UL File No.: NRKH.E181493

• RoHS compliant

System Integration:

• Belongs to SICK W9 series of miniature photoelectric sensors.

• Requires a separate reflector for operation; PL80A recommended (not included).

• Mounting holes M3 with standard 1‑inch spacing, compatible with SICK bracket systems.

• M12 4‑pin male connector mates with standard M12 female cables.

• Sensitivity adjustment via single teach‑in button; light/dark switching selectable.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• PL80A – Fine triple reflector for maximum sensing range

• P250 – 47×47 mm rectangular reflector

• YF2A14‑020VB3XLEAX – M12 straight female connector cable, 4‑pin, 2 m, PVC

• YG2A14‑020VB3XLEAX – M12 angled female connector cable, 4‑pin, 2 m, PVC
