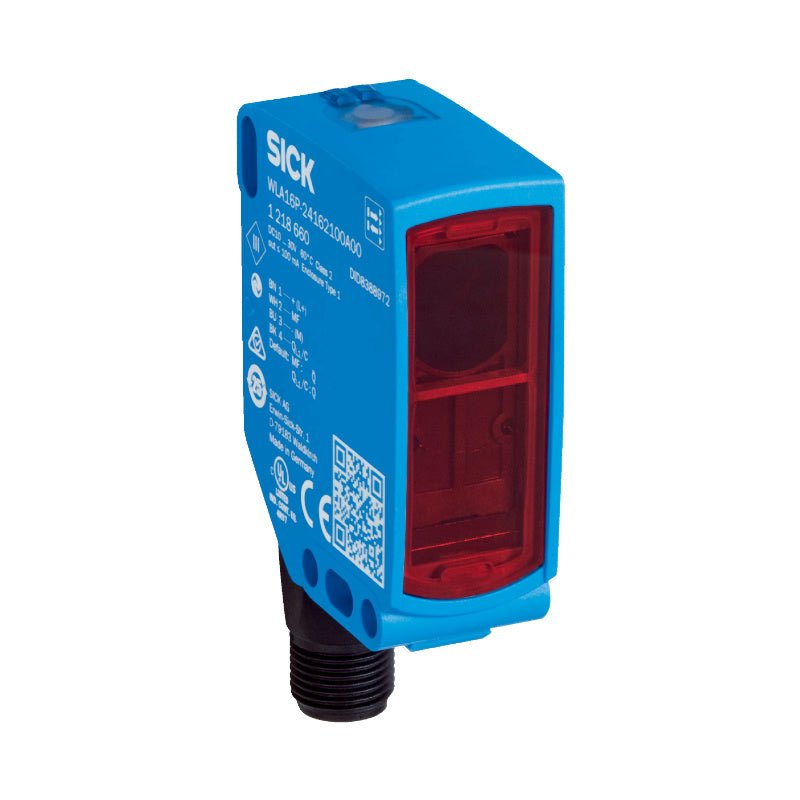

SICK WLA16P-24162100A00 W16 Retro-reflective Photoelectric Sensor 10m Push‑pull IP66/67/69K

SICK WLA16P‑24162100A00 is a retro-reflective photoelectric sensor from the W16 series for long-range object detection up to 10 m (max. switching distance 0 m … 10 m). Uses a PinPoint LED (visible red light, λ = 635 nm) with autocollimation optics and integrated polarising filter. Application‑oriented LED indicators (BluePilot alignment aid, green power/IO‑Link status, yellow receive beam status) simplify installation and monitoring. The IP66/IP67/IP69K VISTAL® plastic housing suits washdown and hygienic environments.

Applications:

• Packaging machinery (film‑wrapped pallets, transparent films, bottles)

• Conveyor systems and material handling (object presence on automated lines)

• Logistics automation and parcel sorting

• Food & beverage industry equipment (high humidity, washdown zones)

• General factory automation requiring a 10 m retro‑reflective detection range

Core Specifications:

• Functional principle: Retro‑reflective sensor, autocollimation

• Polarising filter: ✓

• Sensing range: 0 m … 10 m (max.)

• Recommended range: 0 m … 7 m (for optimum performance)

• Reference reflector: PL80A

• Light source: PinPoint LED (visible red light, λ = 635 nm)

• Light spot size: Ø 80 mm at 5 m

• Supply voltage: 10 … 30 V DC

• Current consumption: 30 mA (no‑load)

• Switching output: Push‑pull (PNP/NPN)

• Switching mode: Light‑on / Dark‑on (selectable)

• Output current: ≤ 100 mA

• Response time: ≤ 500 µs

• Switching frequency: 1,000 Hz

• Adjustment: IO‑Link (parameter configuration, Smart Tasks)

• Connection type: M12 male connector, 4‑pin

• Enclosure rating: IP66 / IP67 / IP69K

• Housing material: VISTAL® (plastic)

• Optics material: PMMA

• Dimensions (W × H × D): 20 mm × 55.7 mm × 42 mm

• Weight: 50 g

Advanced Specifications:

• Communication interface: IO‑Link V1.1, COM2 (38.4 kBaud)

• Process data length: 16 bit

• Smart Tasks: Direct AND OR Window Hysteresis

• Timer functions: Deactivated, On‑delay, Off‑delay, On‑and‑off delay, Impulse (one‑shot)

• BluePilot alignment aid: Blue LED indicator

• Status LEDs: Green (power / IO‑Link mode), Yellow (receive beam state)

• No‑load current consumption: ≤ 30 mA (at Uv = 24 V DC, ≤ 50 mA for Uv < 10 V)

• Signal voltage PNP (HIGH/LOW): Vs – 2.5 V / 0 V; NPN (HIGH/LOW): Vs / < 2.5 V

• Ripple: ≤ 5 Vpp

• Ambient operating temperature: –40 °C … +60 °C

• Storage temperature: –40 °C … +75 °C

• LED average service life: 100,000 h (at TU = 25 °C)

• MTTF D: 693 years

• UL File No.: NRKH.E181493 & NRKH7.E181493

System Integration:

• Part of the SICK W16 series of compact photoelectric sensors.

• Requires a separate reflector (PL80A) for operation.

• Mounts via M4 through‑holes (hole spacing 1 inch / 25.4 mm) or optional mounting brackets.

• M12 4‑pin male connector interfaces with standard industrial M12 female cables.

• Parameter setting and diagnostics via IO‑Link using SICK SOPAS engineering software or directly via an IO‑Link master.

• Configure the sensor (switching point, time functions, Smart Tasks logic) remotely using IO‑Link for fast format changes and predictive maintenance.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information.

Related Products:

• PL80A – Fine triple reflector (required for 10 m sensing range)

• P250 – 47×47 mm rectangular reflector (shorter range)

• YF2A14‑xxxVB3XLEAX – M12 straight female connector cable, 4‑pin, various lengths, PVC

• YG2A14‑xxxVB3XLEAX – M12 angled female connector cable, 4‑pin, various lengths, PVC

• BEF‑KH‑W16 – Mounting bracket for flexible sensor positioning
