WLA26P-24162100A00 Retro-reflective Sensor 18m Push-Pull IP69K | SICK

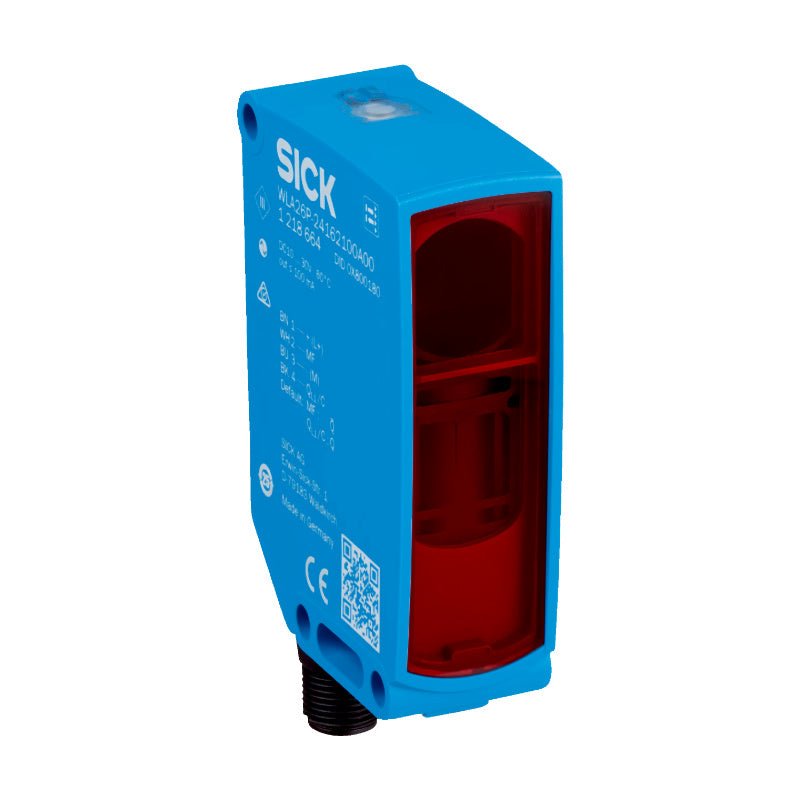

The Original New SICK WLA26P-24162100A00 (1218664) is a high-performance photoelectric retro-reflective sensor from the W26 series, designed for reliable object detection in demanding industrial environments. Its autocollimation optical system requires no minimum distance to the reflector, simplifying installation in space-constrained machinery. A visible red PinPoint LED (635 nm) delivers a precise Ø 100 mm light spot at 10 m, while the integrated polarising filter ensures stable detection of reflective or film-wrapped targets. Housed in an ultra-rugged VISTAL® plastic enclosure rated IP66/IP67/IP69K, the sensor withstands chemical, thermal, and mechanical stress. The push-pull (PNP/NPN) output and IO-Link communication with BluePilot alignment aid enable flexible integration and fast commissioning.

Core Engineering Highlights:
Retro-reflective sensor with autocollimation (no minimum reflector distance) | 0 m … 18 m maximum sensing range (0 m … 12 m recommended for optimal performance) | Visible red PinPoint LED, 635 nm | Push-pull output (PNP/NPN), light/dark switching selectable | ≤ 500 µs response time / 1,000 Hz switching frequency | 10–30 V DC supply voltage | IP66 / IP67 / IP69K VISTAL® housing | M12 4-pin connector | 24.6 × 82.5 × 53.3 mm | –40°C to +60°C operating temperature

Key Features:

• Original New SICK WLA26P-24162100A00 sensor (part no. 1218664)

• Autocollimation optical principle — no minimum distance to the reflector required

• Polarising filter for reliable detection of reflective and film-wrapped objects

• PinPoint LED with visible red light (635 nm) and Ø 100 mm light spot at 10 m

• Push-pull output, configurable as PNP or NPN, with light/dark switching

• IO-Link V1.1 (COM2, 38.4 kBaud) for parameter setting and Smart Task functions

• BluePilot alignment aid (blue LED) for simplified optical alignment

• Ultra-rugged VISTAL® plastic housing for chemical and mechanical resistance

• M12 4-pin male connector for quick electrical connection

• Configurable pin 2 (MF) as external input (test), teach-in, or switching signal

Applications:

• Detection of film-wrapped objects and foil packaging

• Conveyor systems and material handling with reflective targets

• Packaging machinery and wrapping lines

• General factory automation requiring reliable retro-reflective sensing

• High-pressure washdown environments (IP69K)

Technical Specifications:

Footnotes:
¹ Reflector PL80A.
² Average service life: 100,000 h at TU = +25°C.
³ Limit values, operation in short-circuit protected network max. 8 A.
⁴ Without load.
⁵ With IO-Link communication.
⁶ Signal transit time with resistive load.
⁷ With light/dark ratio 1:1.

System Compatibility:

• Compatible with standard industrial controllers accepting push-pull (PNP/NPN) discrete inputs.

• M12 4-pin connector mates with standard M12 female cordsets.

• Requires a suitable reflector for operation (PL80A for maximum 18 m range; P250 or PL40A also listed as related items).

• IO-Link master required for full parameterisation, Smart Task functions, and diagnostics access.

• BluePilot alignment aid and IO-Link setup are supported.

Related Products:

• PL80A – Fine triple reflector for maximum 18 m sensing range

• P250 – 47 × 47 mm rectangular reflector for alternative mounting

• PL40A – Rectangular fine triple reflector for compact installations

• YF2A14-020UB3XLEAX – M12 straight female cordset, 4-pin, 2 m, PUR

• YF2A14-020VB3XLEAX – M12 straight female cordset, 4-pin, 2 m, PVC

• BEF-WN-W27 – Mounting bracket for W26 series sensors
