SICK WLL180T-P434 6039095 Fiber Optic Amplifier PNP 16µs 20m

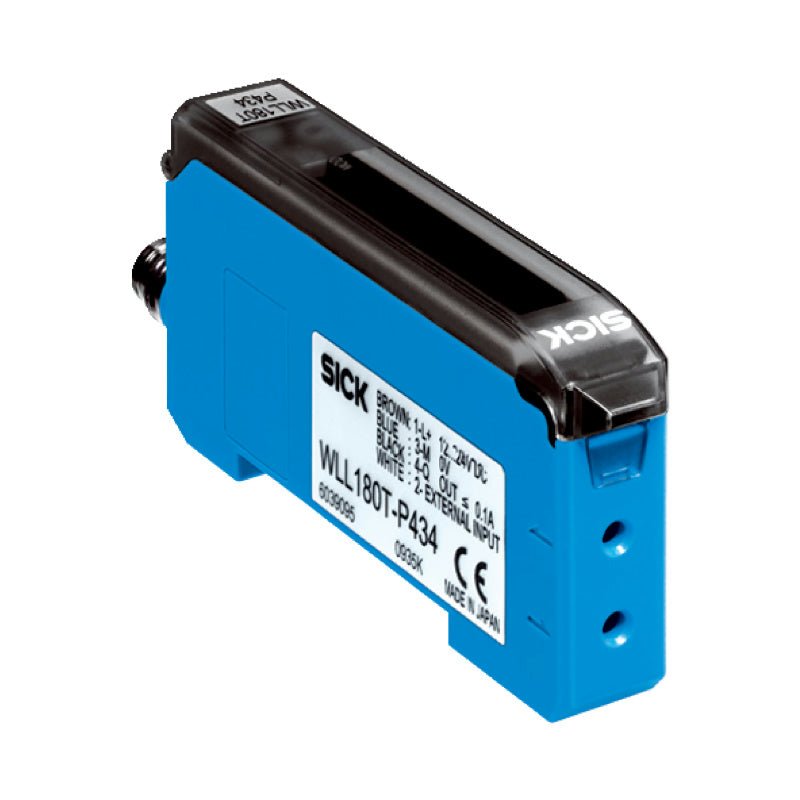

SICK WLL180T‑P434 is a high‑performance fiber optic amplifier for non‑contact detection with selectable fiber optic cables. Provides a 16 µs response time and a 31.2 kHz switching frequency. PNP output with selectable light/dark switching. Visible red LED light source (650 nm wavelength). Dual 4‑character digital display (green setpoint / red actual value) for monitoring and configuration. Menu‑controlled setup with teach‑in button and multifunctional input (MF). Compact 10.5 × 34.6 × 71.9 mm rectangular plastic housing, M8 4‑pin male connector, IP50 enclosure rating. Includes BEF‑WLL180 mounting bracket.

Applications:

• High‑speed part detection on conveyor and sorting systems

• Parts presence and position monitoring in automated assembly

• Small part and transparent object detection in packaging machinery

• Fill‑level monitoring and quality inspection in process automation

Core Specifications:

• Sensing range (through‑beam fiber optic cable): 0 m … 20 m

• Sensing range (diffuse reflection fiber optic cable): 0 mm … 1,400 mm

• Response time: Selectable 16 µs, 70 µs, 250 µs, 2 ms, 8 ms

• Switching frequency: Selectable 31.2 kHz, 7.1 kHz, 2 kHz, 250 Hz, 62.5 Hz

• Light source: LED, visible red light (λ = 650 nm)

• Light spot shape: Rectangular (via fiber optic cable)

• Supply voltage: 12 V DC … 24 V DC

• Switching output: PNP, 1 output

• Switching mode: Light/dark switching (manually selectable)

• Output current: ≤ 100 mA

• Interface: Multifunctional input MF (teach‑in, test input, synchronization)

• Adjustment: Menu‑controlled, teach‑in button, cable teach‑in via MF input

• Indication: LED status display / 2× 4‑character digital dual displays (green setpoint, red actual value)

• Time functions: Programmable 0 ms … 9,999 ms (on delay, off delay, one shot)

• Timer function: Yes

• Connection type: Male connector M8, 4‑pin

• Enclosure rating: IP50 (with correctly attached fiber optic cable and closed protective cap)

• Housing material: Plastic (ABS/PC)

• Dimensions (W × H × D): 10.5 mm × 34.6 mm × 71.9 mm

• Weight: approx. 20 g (device), 0.13 kg (packaged weight)

• Ambient operating temperature: –25 °C … +55 °C

• Ambient storage temperature: –40 °C … +70 °C

• Shock resistance: According to IEC 60068‑2‑27

• Vibration resistance: According to IEC 60068‑2‑6

• Protection class: III

• Certifications: CE / UL (File No. NRKH.E300503 & NRKH7.E300503)

System Integration:

• Requires separate SICK fiber optic cables (through‑beam or diffuse reflection) for operation.

• Mounts on DIN rail via the BEF‑WLL180 mounting bracket (included).

• WLL180T‑P434 can be operated as a stand‑alone unit or in a bus configuration.

• In bus configuration, several sensors can be networked via an internal bus.

• The integrated anti‑interference logic prevents optical cross‑talk between amplifiers.

• Parameter settings can be copied to all other devices on the bus.

• Connects to standard industrial M8 4‑pin female cables.

Standards & Compliance:
Refer to manufacturer official documentation for certification and compliance details (CE, cULus, RoHS, EN 60947‑5‑2).

Related Products:

• LL3‑TX01 – Through‑beam fiber optic cable, 2 m, 2 mm sensing head, 2 m cable (plastic fiber optic cable)

• LL3‑DK06 – Diffuse reflection fiber optic cable, 2 m, 6 mm sensing head

• LL3‑TF01 – Light guide, material: plastic, 4 mm sensing head, 2 m cable

• LL3‑TB02 – Through‑beam fiber optic cable, 2 m, 2.2 mm sensing head, for very small objects

• BEF‑WLL180 – Mounting bracket for DIN rail mounting (included)
