WT150-P430 Photoelectric Proximity Sensor PNP 250mm IP67 | SICK

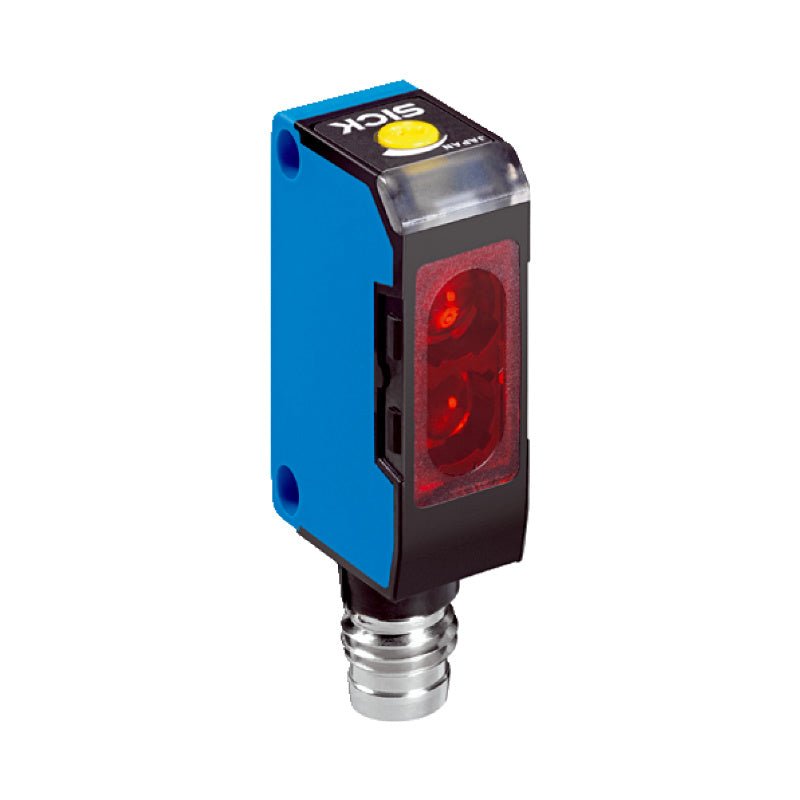

The Original New SICK WT150-P430 (6011044) is a miniature photoelectric proximity sensor from the W150 series, designed for reliable, energetic diffuse detection of objects in space-constrained industrial automation. It provides a maximum sensing range of 10 mm to 250 mm (10 mm to 200 mm rated) with a visible red LED light source and an approximately 6° angle of dispersion, enabling straightforward alignment. Housed in a compact 10 × 28 × 17.5 mm ABS enclosure rated IP67, the sensor delivers a PNP output with light/dark switching selectable via the L/D control cable and is adjusted via a 270° potentiometer. A BEF-W150-A mounting bracket is included.

Core Engineering Highlights:
Photoelectric proximity sensor (energetic diffuse principle) | 10–250 mm maximum sensing range / 10–200 mm rated | PNP output, light/dark switching selectable via L/D control cable | Visible red LED light source | ≤ 0.5 ms response time / 1,000 Hz switching frequency | 10–30 V DC supply voltage | IP67 enclosure rating | M8 4-pin male connector | 10 × 28 × 17.5 mm miniature housing | –25°C to +55°C operating temperature

Key Features:

• Original New SICK WT150-P430 sensor (part no. 6011044)

• Energetic diffuse photoelectric proximity sensor for direct object detection

• Visible red LED light source with approx. 6° angle of dispersion

• PNP output with light/dark switching selectable via L/D control cable

• 270° potentiometer for sensing range adjustment

• Compact rectangular housing with 10 mm width for high-density installations

• ABS plastic housing with PC optics and IP67 protection

• M8 4-pin male connector for standard industrial connectivity

• Circuit protection: reverse polarity (A, B), interference suppression (C), and overcurrent/short-circuit protection (D)

• BEF-W150-A mounting bracket included in delivery

Applications:

• Object presence and position detection in space-constrained machinery

• Small-part detection on conveyor and material handling systems

• Packaging machinery and labelling equipment

• Assembly line monitoring and verification

• General factory automation and OEM equipment

Technical Specifications:

Footnotes:
¹ Object with 90% remission (based on standard white, DIN 5033).
² Average service life: 100,000 h at TU = +25°C.
³ Limit values, operation in short-circuit protected network: max. 8 A.
⁴ May not fall below or exceed UV tolerances.
⁵ Without load.
⁶ Signal transit time with resistive load.
⁷ With light/dark ratio 1:1.
⁸ A = VS connections reverse-polarity protected.
⁹ B = inputs and output reverse-polarity protected.
¹⁰ C = interference suppression.
¹¹ D = outputs overcurrent and short-circuit protected.

System Compatibility:

• Compatible with standard industrial controllers accepting PNP discrete inputs.

• M8 4-pin male connector mates with standard M8 female cordsets.

• Configuration is performed via on-device 270° potentiometer and L/D control cable; no software required.

• BEF-W150-A mounting bracket included for direct installation.

Related Products:

• WT150-P132 – Same W150 series, PNP output, alternative sensing range

• WT150-P430 – Current model, PNP output, energetic diffuse

• BEF-W150-A – Mounting bracket (included)

• YF8U14-020VB3XLEAX – M8 straight female cordset, 4-pin, 2 m, PVC
