SICK WTB12-3P2461S58 1047850 Photoelectric Proximity Sensor PNP 500mm

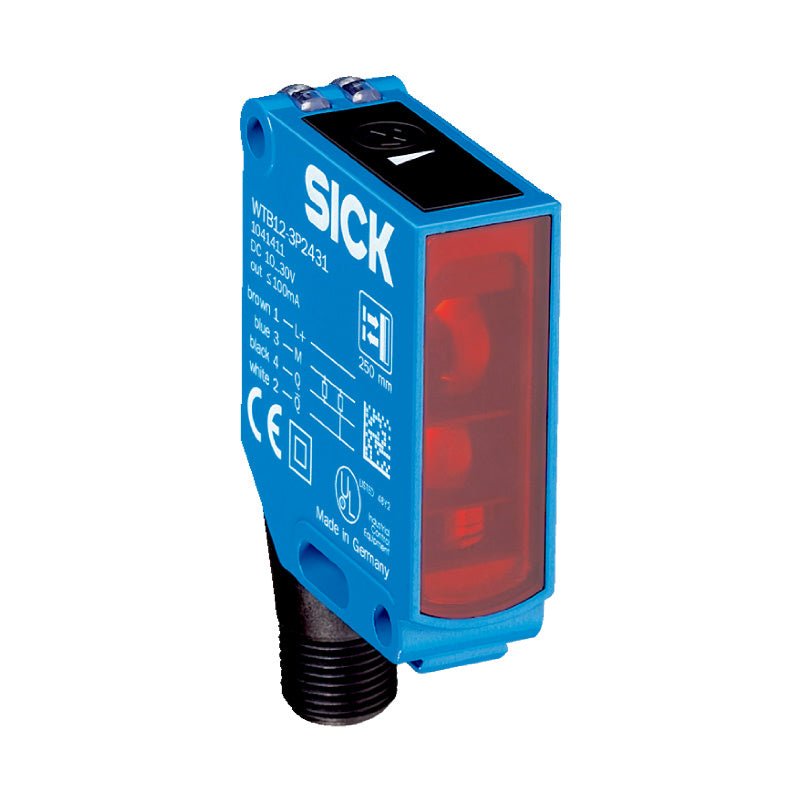

SICK WTB12-3P2461S58 is a compact photoelectric proximity sensor with background suppression from the W12-3 series. PinPoint LED technology with visible red light provides a precise light spot for reliable object detection independent of background. PNP output with selectable light/dark switching. M12 male connector, 4-pin, metal housing, IP66/IP67.

Applications:

• High‑speed conveyor object presence and positioning (up to 1,500 Hz switching frequency)

• Packaging machinery for product counting and sorting

• Automated assembly line part detection and positioning

• Material handling and logistics automation

• General factory automation in demanding environments

Core Specifications:

• Sensing principle: Photoelectric proximity sensor, background suppression

• Sensing range max.: 30 mm … 500 mm (adjustable)

• Light source: PinPoint LED, visible red light (λ = 650 nm typical)

• Light spot size: 50 mm × 5 mm at 150 mm

• Supply voltage: 10 V DC … 30 V DC

• Switching output: PNP

• Switching mode: Light/dark switching (selectable)

• Output current: ≤ 100 mA

• Response time: < 700 µs

• Switching frequency: 1,500 Hz

• Adjustment: Potentiometer, 5 turns

• Connection type: M12 male connector, 4‑pin

• Enclosure rating: IP66 / IP67

• Housing material: Metal (zinc die‑cast)

• Optics material: Plastic (PMMA)

• Dimensions (W × H × D): 15.6 mm × 48.5 mm × 42 mm

• Weight: approx. 107 g

• Ambient operating temperature: –40 °C … +60 °C

• Storage temperature: –40 °C … +75 °C

• Circuit protection: A (reverse polarity), B (inputs/output reverse polarity), C (interference suppression), D (output overcurrent and short‑circuit)

• UL File No.: NRKH.E181493

System Integration:

• This sensor belongs to the SICK W12-3 series of compact photoelectric sensors.

• Mounts via two M4 through‑holes (mounting hole spacing 25.4 mm, metal sleeve reinforced).

• M12 4‑pin male connector mates with standard industrial M12 female cables (e.g., YF2A14‑xxxVB3XLEAX series).

• Select light‑on or dark‑on mode via the L/D selector; adjust sensitivity by turning the 5‑turn potentiometer.

• Yellow LED indicates switching status; green LED indicates power.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (CE, cULus, RoHS).

Related Products:

• WTB12‑3P2431 – 350 mm max. range, similar housing (lower range)

• WTB12‑3P2461S58 – current model (500 mm range, background suppression)

• WT12‑3P2431 – Through‑beam sensor pair for longer range (500 mm receiver)

• WTB12‑3N2461 – NPN output version

• YF2A14‑020VB3XLEAX – M12 straight female connector cable, 4‑pin, 2 m, PVC
