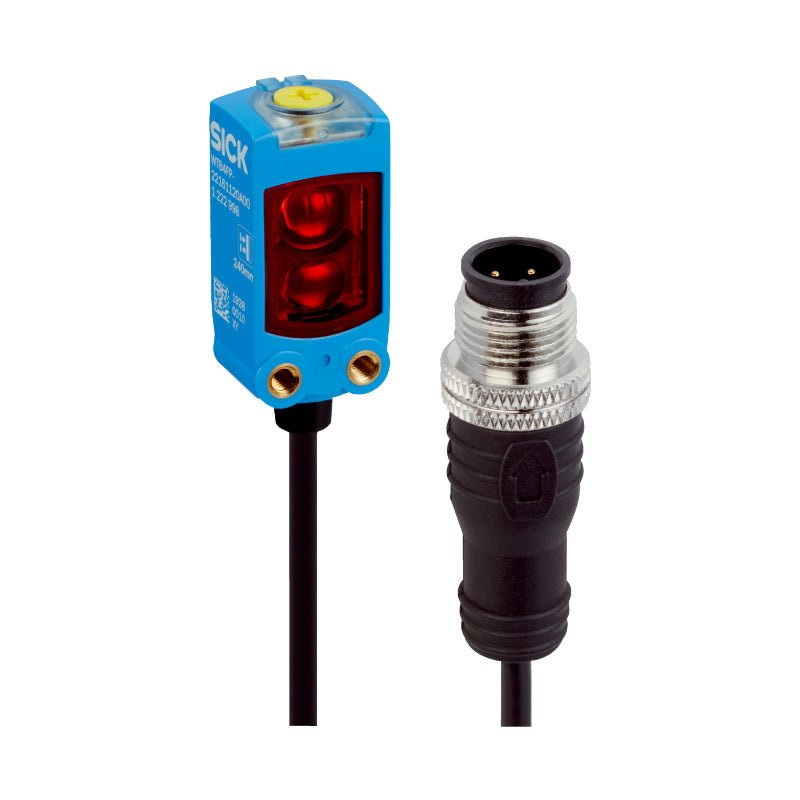

SICK WTV4FE-8416A120A00 1123755 Photoelectric Proximity Sensor PNP/NPN Push‑Pull 50mm

SICK WTV4FE-8416A120A00 (1123755) is a miniature photoelectric proximity sensor with background suppression and V‑optics technology for precise object detection. The PinPoint LED light source produces a visible red rectangular light spot (0.5 mm × 1.9 mm at 30 mm). Push‑pull output (PNP/NPN compatible) with selectable light/dark switching. 2 mm to 50 mm adjustable sensing range. 182 mm cable with M12 4‑pin male connector (IP66/IP67). IP66/IP67 housing (VISTAL®/plastic), IO‑Link V1.1 for parameter setting and Smart Tasks. BluePilot adjustment and multi‑colour LED indicators simplify setup. Suitable for transparent objects, glossy or highly reflective surfaces, and uneven materials in automated production lines, packaging, and material handling.

Applications:

• Automated production lines: precise part detection and positioning

• Material handling and conveyor systems: object presence detection

• Packaging machinery: sorting, counting and quality control

• Transparent object detection: glass, plastic bottles, films

• High‑reflectivity surfaces: glossy and metallic targets

Core Specifications:

• Sensing range min./max.: 2 mm … 50 mm (adjustable)

• Adjustable switching threshold for background suppression: 15 mm … 50 mm

• Light source: PinPoint LED, visible red light (635 nm wavelength)

• Light spot size: 0.5 mm × 1.9 mm (rectangular, at 30 mm)

• Switching output: Push‑pull (PNP/NPN compatible)

• Switching mode: Light/dark switching (selectable)

• Output current: ≤ 100 mA

• Response time: < 500 µs

• Switching frequency: 1,000 Hz

• Supply voltage: 10 V DC … 30 V DC

• Current consumption: ≤ 25 mA (no‑load)

• Connection: 182 mm cable with M12 male connector, 4‑pin

• Enclosure rating: IP66 / IP67 (IEC 60529)

Advanced Specifications:

• Functional principle: Photoelectric proximity sensor, background suppression, V‑optics

• Reference object: 90% remission (white per DIN 5033)

• Minimum distance between sensing range and background (black 6% / white 90%): 1 mm at 21 mm

• Recommended sensing range for best performance: 15 mm … 30 mm

• BluePilot sensing range indicator (blue LED)

• Multi‑colour LEDs: green (power/IO‑Link mode indicator), yellow (received light beam)

• Communication interface: IO‑Link V1.1 (COM2, 38.4 kBaud), cycle time 2.3 ms

• Process data length: 16 bit

• Special features: Detecting transparent objects, Pin2 pre‑setting (MF) not active

• Housing material: Plastic (VISTAL®) with PMMA optics

• Dimensions (W × H × D): 12.1 mm × 40.1 mm × 16 mm (approx.)

• Ambient operating temperature: –25 °C … +55 °C (with U_B ≤ 30 V)

• Storage temperature: –40 °C … +75 °C

• MTTF D: 661 years, mission time TM = 20 years (EN ISO 13849, rate of use 60 %)

• UL File No.: NRKH.E181493 & NRKH7.E181493

• RoHS compliant

System Integration:

• Belongs to SICK WTV4FE series (W4F‑generation) of miniature photoelectric sensors.

• Mounts via through‑holes using supplied nuts or optional brackets.

• M12 4‑pin male connector interfaces with standard industrial M12 female cables.

• Sensitivity adjustment: teach‑turn using BluePilot technology (blue LED visual assistance).

• For IO‑Link configuration: use an IO‑Link master (compatible master port type A) and SICK SOPAS engineering software.

• The push‑pull output can be configured as PNP or NPN to match the PLC input.

Standards & Compliance:
Refer to manufacturer official documentation for detailed certification and compliance information (cULus, CE, UKCA, RoHS, EN 60947‑5‑2).

Related Products:

• YF2A14‑xxxVB3XLEAX – M12 straight female connector cable, 4‑pin, various lengths (e.g. 2 m, 5 m, 10 m), PVC

• YG2A14‑xxxVB3XLEAX – M12 angled female connector cable, 4‑pin, various lengths

• BEF‑W4A – Mounting bracket for flexible sensor positioning

• WTB4F‑3P2261 – alternative model with different light spot or output configuration
