YF2A15-050UB5M2A15 Sensor/Actuator Cable M12 5-Pin 5m PUR | SICK

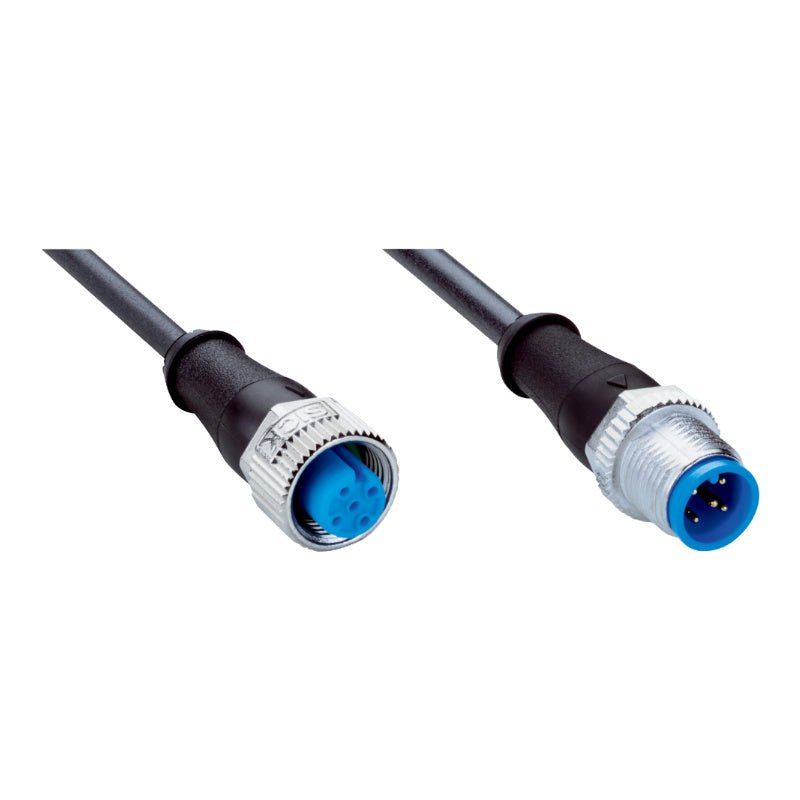

The Original New SICK YF2A15-050UB5M2A15 (2096010) is a double-ended sensor/actuator cable designed for reliable signal and power transmission in industrial automation environments. It features a straight M12 5-pin A-coded female connector on one end and a straight M12 5-pin A-coded male connector on the other, enabling direct connection between sensors, actuators, and control systems. The 5-metre halogen-free PUR cable is engineered for demanding conditions, with resistance to oils and lubricants and suitability for drag-chain operation and robotic applications. The cable is unshielded, has a conductor cross-section of 0.34 mm², and carries CE and UL approvals.

Core Engineering Highlights:
M12 5-pin A-coded female straight to M12 5-pin A-coded male straight | 5 m PUR halogen-free cable | 0.34 mm² conductor cross-section | 4 A current loading | 125 V AC / 125 V DC reference voltage | IP65 / IP66K / IP67 enclosure rating | Drag-chain and robot suitable | –25°C to +80°C operating temperature

Key Features:

• Original New SICK YF2A15-050UB5M2A15 cable (part no. 2096010)

• Double-ended cordset with straight M12 female and straight M12 male connectors, both 5-pin and A-coded

• 5-metre halogen-free PUR cable with black jacket, resistant to oils and lubricants

• Designed for drag-chain operation, with tested suitability for continuous flexing and robotic applications

• High bending cycle rating: 10,000,000 cycles

• Torsion resistance: 180°/1 m, with 2,000,000 torsion cycles

• Traversing speed up to 3 m/s, travelling distance 10 m, acceleration ≤ 10 m/s²

• Connector material TPU (black), locking nut made of nickel-plated zinc die-cast, seal material FKM

• Tightening torque: 0.6 Nm; width across flats: 13

• Cable diameter: 4.8 mm

• Rated impulse voltage: 1.5 kV; test voltage: 2,500 V AC

• Insulation resistance: 100 MΩ; specific transverse resistance: 30 mΩ

• Flame retardant according to UL 1581 (horizontal flame test), CSA FT2, IEC 60332-1, and IEC 60332-2-2

Applications:

• Connecting sensors and actuators to control systems in factory automation

• Drag-chain and robotic applications requiring continuous flexing and torsion

• Zones exposed to oils and lubricants

• Signal and power transmission in industrial machinery, packaging equipment, and material handling systems

Technical Specifications:

System Compatibility:

• Compatible with standard industrial sensors and actuators equipped with M12 5-pin A-coded connectors.

• Suitable for connection to control systems, I/O modules, and junction boxes with matching M12 interfaces.

• Designed for use in drag-chain, robotic, and oil-exposed environments.

• CE and UL approved for use in industrial automation systems.

Related Products:

• YF2A15-100UB5M2A15 (2096011) – 10 m version, same connector configuration and cable specifications

• YF2A15-020UB5M2A15 – 2 m version for shorter connection distances

• YF2A15-010UBSM2A15 (2096007) – 1 m version with straight female and male connectors

• YF2A15-150UBSM2A15 (2096171) – 15 m version for extended reach

• YF2A15-050UB5XLEAX – 5 m version with flying leads (open end) instead of male connector

• YF2A18-050UA5M2A18 (2096034) – 8-pin version for applications requiring additional conductors
