6AV2124-0MC01-0AX0 TP1200 Comfort 12" Touch HMI PROFINET | Siemens

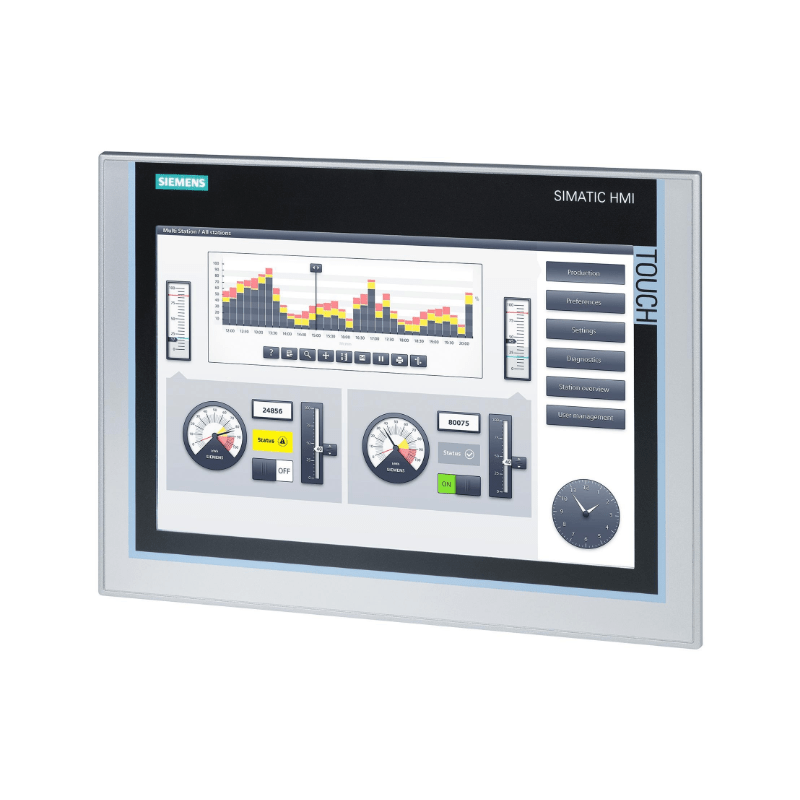

The Original New Siemens 6AV2124-0MC01-0AX0 SIMATIC HMI TP1200 Comfort is a high-performance operator panel designed for complex visualization and machine-level control tasks in industrial automation systems. Featuring a 12.1-inch widescreen TFT display with 16 million colors and analog-resistive touch operation, this panel delivers clear, detailed visualization for demanding HMI applications. Three communication interfaces — PROFINET (with 2-port switch), MPI/PROFIBUS DP, and RS422/485 — ensure flexible integration with SIMATIC S7 controllers and third-party systems. Configurable from WinCC Comfort V11 within the TIA Portal engineering framework.

Core Engineering Highlights:
12.1" widescreen TFT display | 1280 x 800 resolution | 16 million colors | Analog-resistive touch | PROFINET (2-port switch) + MPI/PROFIBUS DP + RS422/485 | 12 MB configuration memory | Windows CE 6.0 | 80,000 h LED backlight | 24V DC | 0°C to +50°C operating | IP65 front protection

Key Features:

• Original New Siemens 6AV2124-0MC01-0AX0 panel

• 12.1-inch widescreen TFT display with LED backlighting

• 1280 x 800 pixel resolution (WXGA)

• 16,777,216 colors for brilliant, detailed visualization

• Analog-resistive touch screen with onscreen numeric and alphanumeric keyboards

• 40 touch buttons configurable as S7 input I/O

• PROFINET interface with integrated 2-port switch

• MPI/PROFIBUS DP interface (12 Mbps)

• RS422/485 combined interface

• 2 x USB 2.0 ports (type A)

• 1 x USB Mini-B port (5-pole)

• 2 x SD card slots for project backup and data logging

• 12 MB configuration memory for complex projects

• X86 processor for high-performance operation

• 80,000 h LED backlight MTBF at 25°C, dimmable 0-100%

• IP65 protection on front for harsh industrial environments

• IP20 rear protection

• 24V DC power supply (19.2–28.8V range)

• 20W typical power consumption, 850mA current draw

• Real-time hardware clock with 6-week backup

• Configurable from WinCC Comfort V11 (TIA Portal)

• Speaker built-in

• Portrait and landscape mounting supported

• Maximum permissible inclination without external ventilation: 35°

Applications:

• Complex machine-level visualization and operator control

• Production line monitoring and data management

• Process control and supervisory applications

• Packaging machinery and material handling systems

• OEM machine automation and system integration

• Multi-interface control applications requiring PROFINET, PROFIBUS, and RS422/485 connectivity

• Large-scale HMI projects requiring 12 MB configuration memory

• Portrait or landscape mounting in space-constrained panels

Technical Specifications:

System Compatibility:

• Siemens SIMATIC S7-1200 controllers (via PROFINET)

• SIMATIC S7-1500 controllers (via PROFINET)

• SIMATIC S7-300 / S7-400 controllers (via PROFINET or PROFIBUS DP)

• Third-party controllers supporting PROFINET, PROFIBUS DP, or Modbus TCP/IP

• TIA Portal engineering framework (WinCC Comfort V11 or higher)

• USB peripherals (keyboard, mouse, memory stick)

• SD cards for project backup and data logging

Typical System Architecture:
24V DC Power Supply
↓
6AV2124-0MC01-0AX0 TP1200 Comfort HMI Panel (Front Panel Mount)
│
├── PROFINET Interface (2-port switch) → S7-1200 / S7-1500 / S7-300 / S7-400
├── MPI/PROFIBUS DP Interface → PROFIBUS Network
├── RS422/485 Interface → Serial Devices
├── USB Host (2x) → Keyboard / Mouse / Memory Stick
├── SD Card Slots (2x) → Project Backup / Data Logging
│
↓
TIA Portal Engineering (WinCC Comfort V11 or higher)
↓
Complex Machine / Process Visualization and Control

Related Products:

• 6AV2124-0GC01-0AX0 – TP700 Comfort (7" display)

• 6AV2124-0JC01-0AX0 – TP900 Comfort (9" display)

• 6AV2124-0MC01-0AX0 – TP1200 Comfort (12" display, current model)

• 6AV2124-0QC02-0AX1 – TP1500 Comfort (15" display, higher performance)

• 6AV2124-0XC02-0AX1 – TP2200 Comfort (22" display)

• 6AV2124-0MC24-1AX0 – TP1200 Comfort Pro (expandable, support arm mounting)

• 6AV6643-0CD01-1AX1 – MP 277 10" Touch (legacy replacement consideration)

• 6ES7972-0BB52-0XA0 – PROFIBUS connector for MPI/PROFIBUS DP interface

• 6AV6671-5AE00-0AX0 – SD card for HMI data storage

• 6AV6671-5AE10-0AX0 – SD card for HMI data storage (higher capacity)
