6AV2124-0QC02-0AX1 TP1500 Comfort 15" Touch HMI PROFINET/DP | Siemens

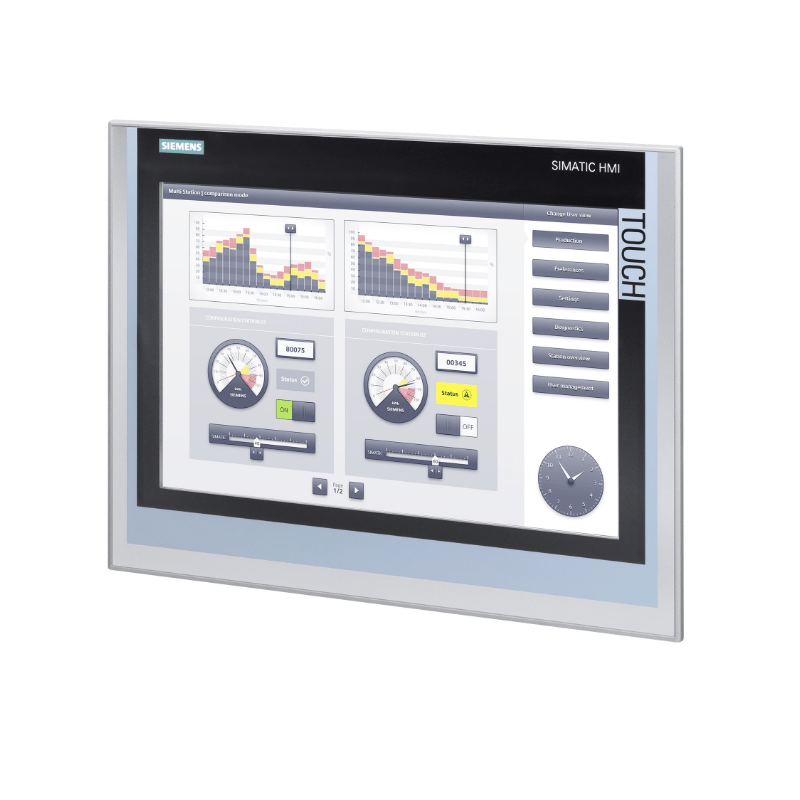

The Original New Siemens 6AV2124-0QC02-0AX1 SIMATIC HMI TP1500 Comfort is a high-performance operator panel designed for complex visualization and machine-level control in industrial automation systems. Featuring a 15.4‑inch widescreen TFT display with 16 million colors and analog-resistive touch operation, this panel delivers brilliant, detailed visualization for demanding HMI applications. With PROFINET (2‑port switch), MPI/PROFIBUS DP, and USB interfaces, it ensures flexible integration with SIMATIC S7 controllers, third-party systems, and peripheral devices. Equipped with an X86 processor and 24 MB configuration memory, it is configurable from WinCC Comfort V14 SP1 with HSP.

Core Engineering Highlights:
15.4" widescreen TFT display | 1280 x 800 resolution | 16 million colors | Analog-resistive touch | PROFINET (2‑port switch) + MPI/PROFIBUS DP + 2x USB + 2x SD card slots | 24 MB configuration memory | X86 processor | 24V DC | 41 W typical power consumption | 1.7 A current consumption | 80,000 h LED backlight | Ambient temperature up to 50°C (55°C with restrictions) | IP65 front protection | 24 MB configuration memory | Windows Embedded Compact 2013

Key Features:

• Original New Siemens 6AV2124-0QC02-0AX1 panel

• 15.4‑inch widescreen TFT display with LED backlighting

• 1280 x 800 pixel resolution (WXGA)

• 16,777,216 colors for brilliant, detailed visualization

• Analog-resistive touch screen with onscreen numeric and alphanumeric keyboards

• 40 touch buttons configurable as S7 input I/O

• PROFINET interface with integrated 2‑port switch

• MPI/PROFIBUS DP interface (RS 422/485 combined)

• 2 x USB 2.0 ports (type A)

• 2 x SD card slots for project backup and data logging

• 24 MB configuration memory for complex projects

• X86 processor for high-performance operation

• 80,000 h LED backlight MTBF at 25°C, dimmable 0-100%

• IP65 protection on front for harsh industrial environments

• IP20 rear protection

• 24V DC power supply (19.2–28.8V range)

• 41 W typical power consumption, 1.7 A current draw

• Real-time hardware clock with 6‑week backup

• Configurable from WinCC Comfort V14 SP1 with HSP

• Built‑in speaker

• Portrait and landscape mounting supported

• Maximum permissible inclination without external ventilation: 35°

• Media Redundancy Protocol (MRP) support

Applications:

• Complex machine-level visualization and operator control

• Production line monitoring and data management

• Process control and supervisory applications

• Packaging machinery and material handling systems

• OEM machine automation and system integration

• Multi-interface control applications requiring PROFINET, PROFIBUS DP, and USB connectivity

• Large-scale HMI projects requiring 24 MB configuration memory

• Portrait or landscape mounting in space-constrained panels

Technical Specifications:

System Compatibility:

• Siemens SIMATIC S7-1200 controllers (via PROFINET)

• SIMATIC S7-1500 controllers (via PROFINET)

• SIMATIC S7-300 / S7-400 controllers (via PROFINET or PROFIBUS DP)

• Third-party controllers supporting PROFINET, PROFIBUS DP, or MODBUS

• TIA Portal engineering framework (WinCC Comfort V14 SP1 with HSP, or higher)

• USB peripherals (keyboard, mouse, memory stick)

• SD cards for project backup and data logging

Typical System Architecture:
24V DC Power Supply
↓
6AV2124-0QC02-0AX1 TP1500 Comfort HMI Panel (Front Panel Mount)
│
├── PROFINET Interface (2‑port switch) → S7-1200 / S7-1500 / S7-300 / S7-400
├── MPI/PROFIBUS DP Interface → PROFIBUS Network
├── USB Host (2x) → Keyboard / Mouse / Memory Stick
├── SD Card Slots (2x) → Project Backup / Data Logging
│
↓
TIA Portal Engineering (WinCC Comfort V14 SP1 with HSP or higher)
↓
Complex Machine / Process Visualization and Control

Related Products:

• 6AV2124-0QC02-0AX0 – TP1500 Comfort (previous version, Windows CE 6.0, configurable from WinCC Comfort V11 SP2)

• 6AV2124-0XC02-0AX1 – TP2200 Comfort (22" display, same series)

• 6AV2124-0MC01-0AX0 – TP1200 Comfort (12" display)

• 6AV2124-0JC01-0AX0 – TP900 Comfort (9" display)

• 6AV2181-8XP00-0AX0 – SIMATIC SD memory card 2GB

• WinCC Comfort V14 SP1 – Configuration software (with HSP for this panel)

• ProSave – Backup and recovery software for Comfort Panels

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens, SIMATIC, and TIA Portal are trademarks of Siemens AG.
