6AV6643-0CD01-1AX1 SIMATIC MP 277 10" Touch Multi Panel Spare Part | Siemens

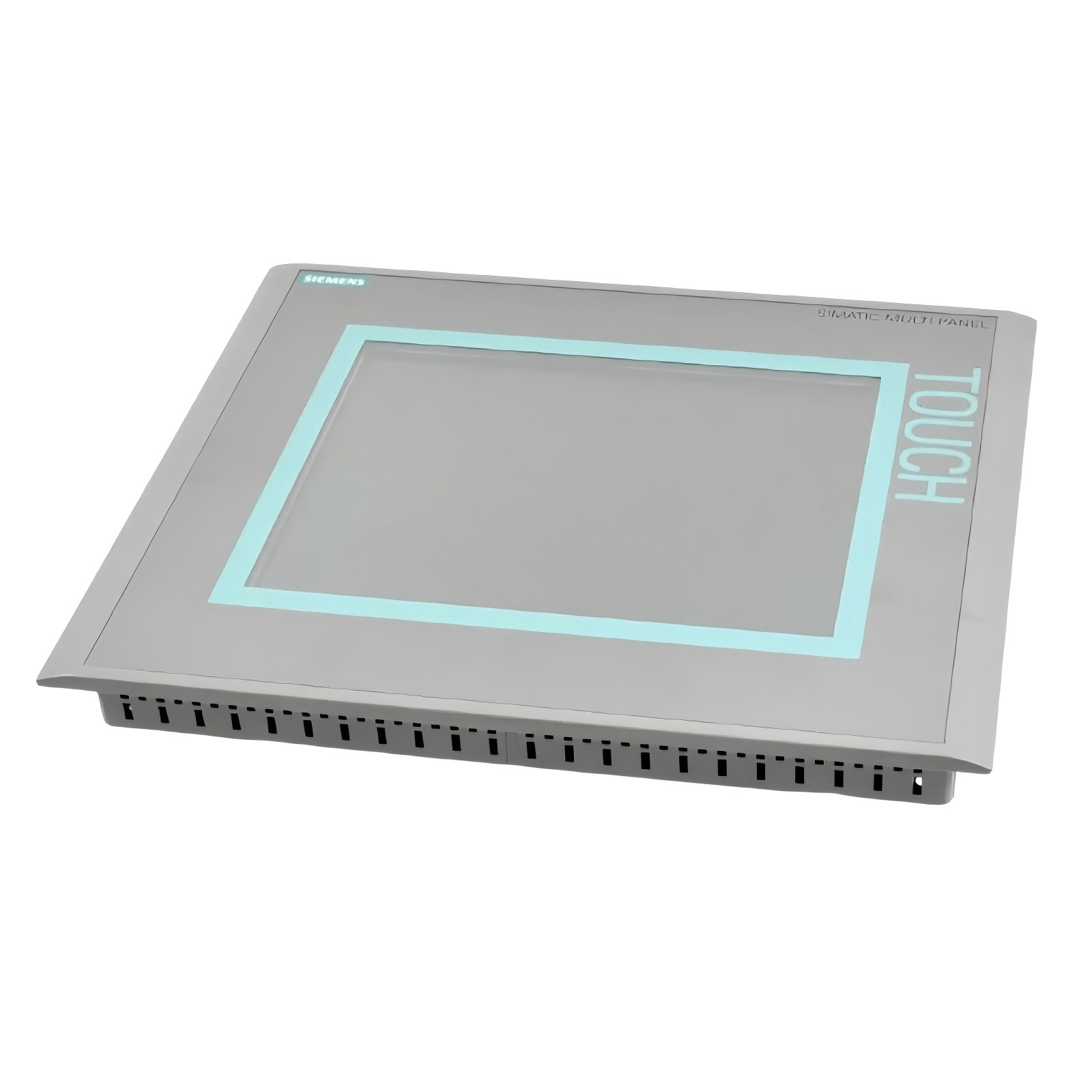

The Original New Siemens 6AV6643-0CD01-1AX1 SIMATIC MP 277 10" Touch Multi Panel is a high-performance operator interface designed for machine-level monitoring and control in industrial automation systems. Featuring a 10.4-inch TFT color display with 65,536 colors and analog resistive touch technology, this panel provides clear, responsive visualization for complex HMI applications.

This product is discontinued as a new part and is available as a spare part for maintaining existing systems. Configured via WinCC flexible 2005 Standard SP1 or higher. The MP 277 supports extensive communication options including PROFINET, MPI/PROFIBUS DP, and USB interfaces, enabling seamless integration with SIMATIC S7 controllers and legacy automation networks.

Core Engineering Highlights:
10.4" TFT color display | 640 x 480 pixels | 65,536 colors | Analog resistive touchscreen | 6 MB user memory | 128 MB RAM | ARM processor | Windows CE operating system | PROFINET (RJ45) + MPI/PROFIBUS DP (RS485) + 2x USB | IP65 front / IP20 rear | 24V DC | 0°C to +50°C operating

Key Features:

• Original New Siemens 6AV6643-0CD01-1AX1 panel

• 10.4-inch TFT color display with 50,000 h backlight MTBF

• 640 x 480 pixel resolution (VGA)

• 65,536 colors for clear, detailed visualization

• Analog resistive touchscreen for reliable operation

• ARM processor with 6 MB user memory and 128 MB RAM

• Windows CE operating system

• 1 x PROFINET interface (RJ45) for modern network integration

• 1 x MPI/PROFIBUS DP interface (RS485) for legacy system connectivity

• 2 x USB ports for peripheral connectivity (mouse, keyboard, barcode reader)

• 1 x SD/MMC card slot (up to 128 MB) for data storage and project backup

• IP65 front protection for dust-tight and water-jet resistant operation

• IP20 rear protection

• 24V DC power supply (20.4–28.8V range)

• Non‑volatile alarm buffer for critical process information retention

• Vertical mounting with maximum 35° inclination

Applications:

• Machine-level operator interface and control

• Production line monitoring and data visualization

• Process control and supervisory applications

• Legacy system maintenance and spare part replacement

• OEM equipment requiring 10-inch HMI with multi-protocol support

• Retrofit and upgrade of existing MP 277 installations

Product Status:

• Discontinued as new part as of January 1, 2015

• Available as a spare part for maintaining existing systems

• Price may deviate from new part

• Further information under SIMATIC entry ID: 109486162

• Recommended replacement: TP1200 Comfort (6AV2124-0MC01-0AX0)

Technical Specifications:

Display:

Memory & Processor:

Interfaces:

Power Supply:

Environmental & Physical:

System Compatibility:

• Siemens SIMATIC S7-200, S7-300, S7-400 controllers

• SIMATIC S7-1200 controllers via PROFINET

• MPI/PROFIBUS DP networks

• WinCC flexible 2005 Standard SP1 or higher

• TIA Portal (with appropriate HSP)

• ProSave for backup and recovery

Typical System Architecture:
24V DC Power Supply
↓
6AV6643-0CD01-1AX1 MP 277 10" Touch Multi Panel
│
├── PROFINET Interface (RJ45) → S7-1200 / S7-1500 / S7-300 / S7-400
├── MPI/PROFIBUS DP Interface (RS485) → Legacy S7 Controllers
├── USB (2x) → Keyboard / Mouse / Barcode Scanner
├── SD/MMC Card Slot → Project Backup / Data Storage
│
↓
WinCC flexible 2005 Standard SP1 (Configuration Software)
↓
Machine / Process Visualization and Control

Related Products:

• 6AV2124-0MC01-0AX0 – TP1200 Comfort (recommended replacement for new installations)

• 6AV6643-0CB01-1AX1 – MP 277 8" Key (similar series, smaller display)

• 6AV6643-0CD01-1AX2 – MP 277 10" Touch (variant with different configuration)

• 6AV6643-0CD01-1AX0 – MP 277 10" Touch (earlier version)

• ProSave – Backup and recovery software for MP 277 panels

• 6AV6671-5AE00-0AX0 – SD card for HMI data storage

• WinCC flexible 2005 SP1 – Configuration software (required for programming)
