6EP1334-3BA10 SITOP PSU200M 24V/10A Power Supply 240W | Siemens

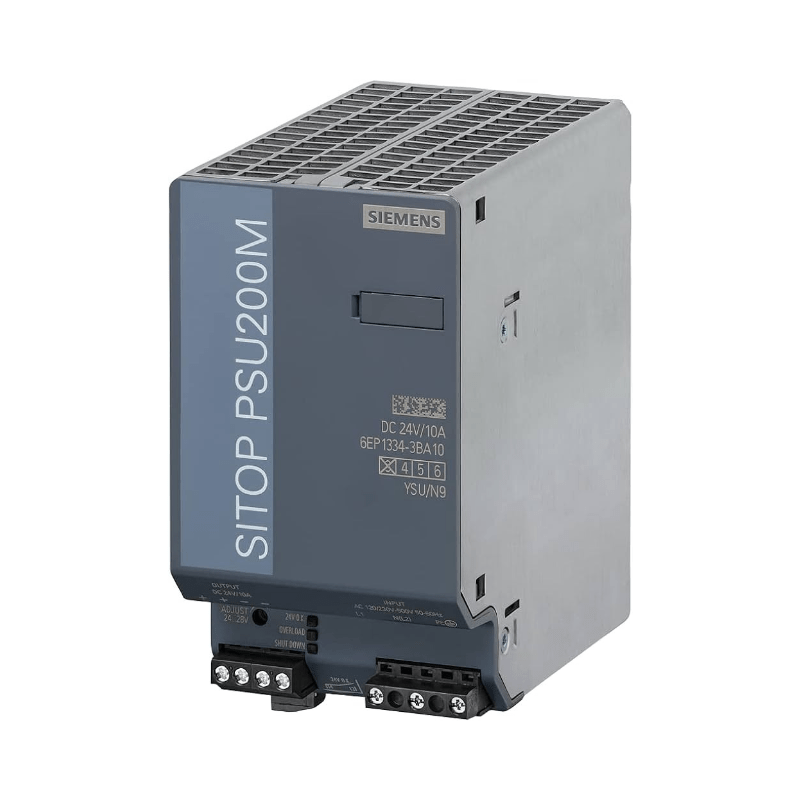

The Original New Siemens 6EP1334-3BA10 SITOP PSU200M 24V/10A Power Supply is a high-efficiency, stabilized DIN rail power supply designed for demanding industrial automation and machine-building applications. It delivers 10A at 24V DC (240W) from a versatile AC input range, supporting single‑phase and two‑phase operation from 85–264V AC or 176–550V AC. Featuring a 91% efficiency rate and Power Boost function (up to 3× rated current for short periods), this power supply ensures reliable system start‑up and energy‑saving operation in a compact metal enclosure. The SITOP modular single‑phase and two‑phase power supplies are technology power supplies for demanding solutions and provide maximum functionality for use in complex plants and machines.

Core Engineering Highlights:
24V DC / 10A output (240W) | 85–264V AC / 176–550V AC ultra‑wide input | 91% efficiency | Power Boost: 3× rated current for short periods | 1.5× rated current for brief overload | Adjustable output voltage 24–28.8V | Selectable overload response (constant current or latching shutdown) | 3 LED status indicators | 70 x 125 x 121 mm | –25°C to +70°C operating | IP20 | DIN rail mountable

Key Features:

• Original New Siemens 6EP1334-3BA10 power supply

• Wide‑range AC input: single‑phase 85–264V AC or two‑phase 176–550V AC for global compatibility

• 10A continuous output at 24V DC, providing 240W of reliable power

• Adjustable output voltage from 24V to 28.8V via potentiometer

• Power Boost function delivers up to 3× rated current for short periods to trip protective devices

• 1.5× rated current for brief functional overload

• 91% high efficiency reduces energy consumption and heat buildup

• Selectable overload response: constant current with automatic restart or latching shutdown

• 3 LED indicators for operating status: green (OK), yellow (overload), red (fault)

• Screw‑type connection terminals for secure wiring

• Compact metal housing: 70 x 125 x 121 mm (W x H x D)

• IP20 protection rating for cabinet installation

• DIN rail mounting (compatible with DIN EN 60715 standard)

• Short‑circuit, overload, overvoltage, and overtemperature protection

• CE, UL, CB, ABS certified

• 0.8 kg weight

Applications:

• PLC power supply for SIMATIC S7‑1200, S7‑1500, S7‑300 systems

• 24V DC power distribution for ET 200SP and ET 200MP I/O systems

• Sensor and actuator power supply in factory automation

• Control cabinet power distribution

• OEM equipment and machine building

• Process control and industrial automation systems

Technical Specifications:

• Catalog Number: 6EP1334-3BA10

• Product Family: SITOP PSU200M

• Input Voltage: AC 85–264V (single‑phase) / 176–550V (two‑phase)

• Input Frequency: 47–63 Hz

• Output Voltage: 24V DC (adjustable 24–28.8V)

• Output Current: 10A continuous

• Output Power: 240W

• Efficiency: 91% typical

• Power Loss: Approx. 22W

• Short‑term Overload: 30A (Power Boost, 3× rated current)

• Brief Functional Overload: 15A (1.5× rated current)

• Overload Response: Selectable (constant current with auto‑restart / latching shutdown)

• Ripple: < 150 mV

• Adjustment Range: 24–28.8V DC

• Line Regulation: 0.1%

• Load Regulation: 0.1%

• Protection: Short‑circuit, overload, overvoltage (≤35V), overtemperature

• Connection: Screw‑type terminals

• Mounting: DIN rail (35mm, EN 60715)

• Protection Rating: IP20

• Dimensions (W x H x D): 70 x 125 x 121 mm

• Weight: Approx. 0.8 kg

• Ambient Temperature (Operation): –25°C to +70°C

• Storage Temperature: –40°C to +85°C

• Certifications: CE, UL, CB, ABS

• Country of Origin: Romania

• EAN: 4025515152880

System Compatibility:

• Siemens SIMATIC S7‑1200, S7‑1500, S7‑300, S7‑400 controllers

• ET 200SP, ET 200MP distributed I/O systems

• All 24V DC industrial automation devices

• SITOP buffer, DC‑UPS, redundancy, and selectivity modules

• DIN rail mounting systems (35mm)

Typical System Architecture:
AC Mains Supply (85–264V AC / 176–550V AC)
↓
6EP1334-3BA10 SITOP PSU200M Power Supply (70mm width)
│
├── 24V DC / 10A Output → Control Cabinet Power Distribution
├── Power Boost (3× rated current) → High Inrush Current Loads
├── Adjustable Voltage (24–28.8V) → System Optimization
├── 3 LED Status Indicators → Green/OK, Yellow/Overload, Red/Fault
│
↓
PLC Systems (S7‑1200 / S7‑1500 / ET 200SP)
↓
I/O Modules, Sensors, Actuators, HMI Panels

Related Products:

• 6EP1333-3BA10 – SITOP PSU200M 24V/5A version (lower current)

• 6EP1334-3BA10 – SITOP PSU200M 24V/10A (current model)

• 6EP1336-3BA10 – SITOP PSU200M 24V/20A version (higher current)

• 6EP1334-2BA20 – SITOP PSU200M 24V/10A (alternative version)

• SITOP SEL1400 – Redundancy module for parallel operation

• SITOP CNX8600 – Buffering module for short‑term power failures

• SITOP PSE200U – Selective monitoring module for load protection
