6EP3437-8SB00-0AY0 SITOP PSU8200 24V/40A 3AC Power Supply 960W | Siemens

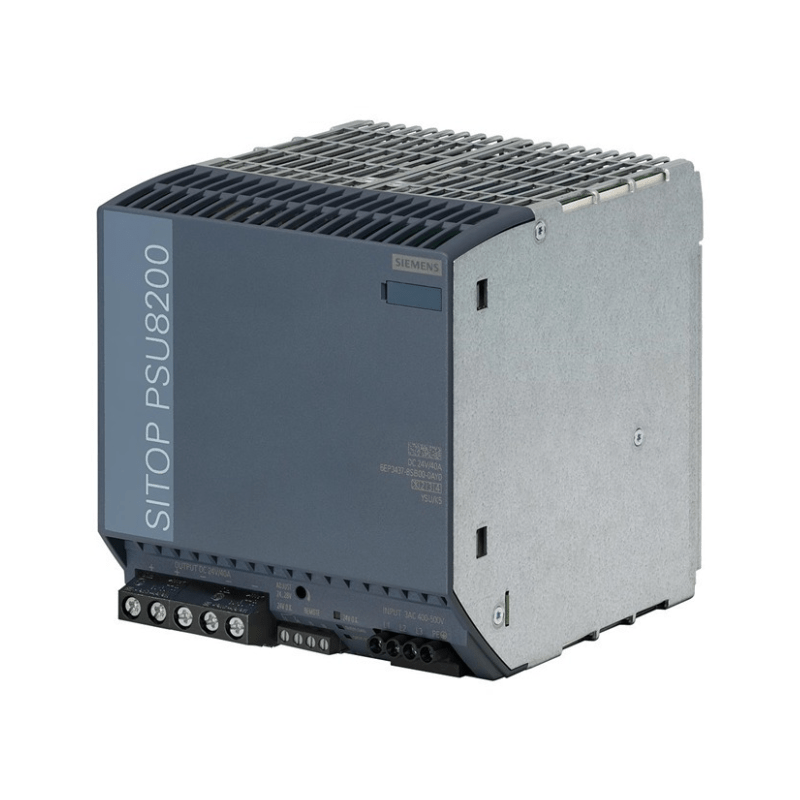

The Original New Siemens 6EP3437-8SB00-0AY0 SITOP PSU8200 is a high-performance 3-phase stabilized power supply designed for complex industrial plants and machinery. It delivers a robust 40A at 24V DC with a wide-range 400-500V 3AC input, making it suitable for demanding automation and process control applications. The PSU8200 features Power Boost technology that briefly delivers up to three times the rated current, ensuring reliable system start-up even under heavy loads. With a high efficiency of approximately 94%, it minimizes power loss and heat generation, while the compact metal housing saves valuable cabinet space. This unit is designed for sophisticated solutions and offers maximum functionality for use in complex plants and machines.

Core Engineering Highlights:
3-phase 400-500V AC wide-range input | 24V DC / 40A output (960W) | 94% efficiency | Power Boost (3x rated current for short periods) | Adjustable output voltage 24-28V | 10ms buffering time at 400V input | IP20 protection | 135 x 145 x 150 mm (W x H x D) | 3.3 kg weight | Screw-type connection | DIN rail mountable

Key Features:

• Original New Siemens 6EP3437-8SB00-0AY0 power supply

• 3-phase AC wide-range input: 400-500V (operating range 320-575V) for global compatibility and tolerance of large voltage fluctuations

• 40A continuous output current at 24V DC, providing 960W of reliable power

• Adjustable output voltage from 24V to 28V (max. 960W) for system optimization

• Power Boost function delivers up to three times the rated current for short periods to start loads with high inrush current

• Selectable overload response: constant current with automatic restart or latching shutdown

• High efficiency of approx. 94% reduces energy consumption and heat generation

• Screw-type connection terminals for secure and reliable wiring

• IP20 protection rating for cabinet installation

• Compact metal housing saves space in control cabinets

• DIN rail mounting for easy installation

• Short-circuit proof and stabilized output

• CE, cULus certified, RoHS compliant (since 10.03.09)

Applications:

• Complex industrial plants and machinery

• Automation systems and control panels

• Process control and manufacturing equipment

• High-power 24V DC distribution systems

• Systems requiring high inrush current capability

• OEM equipment and machine building

• Replacement or upgrade of existing SITOP power supplies

Technical Specifications:

Circuit Breaker Protection:

• Required: 3-pole connected miniature circuit breaker 10-16A, characteristic C

System Compatibility:

• Siemens SITOP PSU8200 series

• SIMATIC S7-1200, S7-1500, S7-300, S7-400 controllers

• ET 200SP, ET 200MP distributed I/O systems

• All 24V DC industrial automation devices

• DIN rail mounting systems

Typical System Architecture:
3AC 400-500V Mains Supply
↓
6EP3437-8SB00-0AY0 SITOP PSU8200 Power Supply (135mm width)
│
├── 24V DC / 40A Output → Control Cabinet Power Distribution
├── Power Boost → High Inrush Current Loads (motors, contactors)
├── Adjustable Voltage (24-28V) → System Optimization
│
↓
PLC Systems (S7-1200 / S7-1500 / ET 200SP)
↓
I/O Modules, Sensors, Actuators, HMI Panels

Related Products:

• 6EP3436-8SB00-0AY0 – SITOP PSU8200 24V/20A version (lower current)

• 6EP1437-3BA10 – SITOP modular power supply (alternative series)

• SITOP SEL1400 – Redundancy module for parallel operation

• SITOP CNX8600 – Buffering module for short-term power failures

• SITOP PSE200U – Selective monitoring module for load protection

• 3RV2011-1DA10 – Circuit breaker (recommended protection for 40A unit)
