6ES7132-6BD20-0BA0 ET 200SP DQ 4x24V DC/2A Standard | Siemens

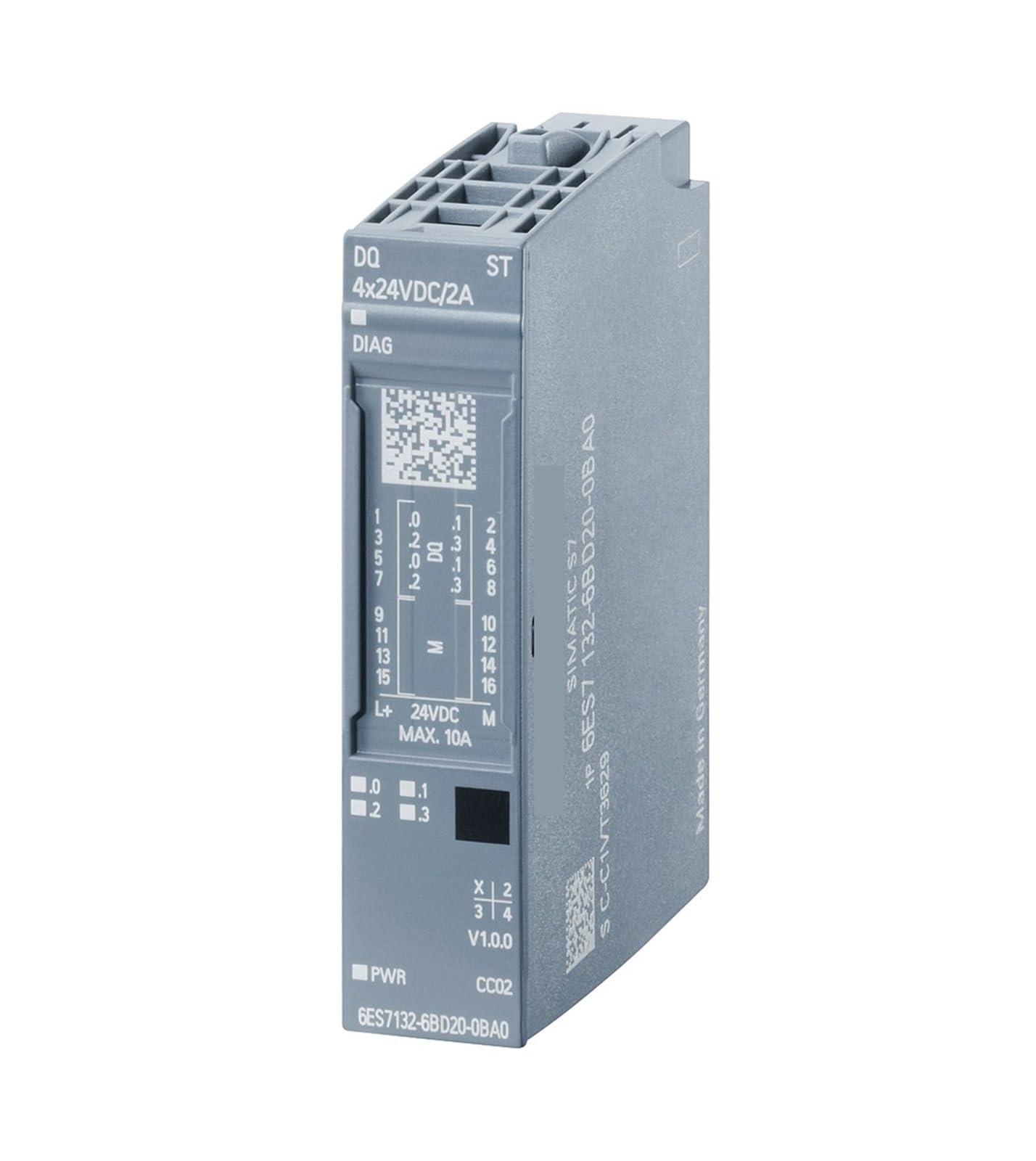

The Original New Siemens 6ES7132-6BD20-0BA0 SIMATIC ET 200SP Digital Output Module is a 4‑channel high‑current digital output module for distributed I/O systems in industrial automation. Part of the ET 200SP family, this Standard module provides 4 sourcing outputs (PNP, current‑sourcing) at 24V DC / 2A per channel for direct control of high‑power actuators, contactors, and solenoids. Featuring a compact 15 mm width, comprehensive diagnostics (short‑circuit, open‑circuit, supply voltage), and support for BU type A0 with colour code CC02, it is ideal for space‑constrained control cabinets requiring high‑current output capability.

Core Engineering Highlights:
4-channel 24V DC sourcing outputs (PNP) | 2A per channel | Short‑circuit protection (2.8–5.2A threshold) | Open‑circuit detection | Diagnostics: short‑circuit, open‑circuit, supply voltage | 15 mm width | BU type A0 compatible | Colour code CC02 | 24V DC nominal (19.2–28.8V range) | 60 mA max current consumption | 1 W typical power loss | IP20 protection | –30°C to +60°C operating (horizontal) | Output delay: 50 µs (0→1) / 100 µs (1→0)

Key Features:

• Original New Siemens 6ES7132-6BD20-0BA0 module

• 4 digital output channels (sourcing, PNP, current‑sourcing)

• 2A per channel output current for high‑power actuator control

• Output type according to IEC 61131, type 2

• Short‑circuit protection with electronic response threshold: 2.8–5.2A

• Open‑circuit detection for reliable diagnostics

• Module diagnostics: short‑circuit, open‑circuit, supply voltage monitoring

• Suitable for BU type A0 base units (1‑wire, 2‑wire, 3‑wire, and 4‑wire connection variants)

• Colour code CC02 for visual identification

• I&M data support (I&M0 to I&M3)

• Fast switching: 50 µs (0→1) / 100 µs (1→0) with resistive load

• Supports redundant control of a load (parallel switching of two outputs)

• Reverse polarity protection

• 15 mm width for high‑density mounting

• DIN rail mounting, IP20 protection

• Firmware upgradeable (V1.1.5, FW update possible)

• Engineering via TIA Portal V11 SP2 / V13 or higher

• Active product lifecycle

• Pack quantity: 1 unit

Applications:

• High‑current actuator control for contactors, solenoids, and valves

• Motor starters and brake control

• Indicator lamp and signal device control

• Machine automation and control panel I/O expansion

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Factory automation and process control systems

• High‑current output applications requiring 2A per channel capability

Technical Specifications:

Engineering & Configuration:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• ET 200SP interface modules (IM155‑6PN, IM155‑6MF, etc.)

• SIMATIC S7‑1200, S7‑1500, S7‑300, S7‑400 controllers

• TIA Portal engineering framework (V11 SP2 / V13 or higher)

• STEP 7 V5.5 SP3 or higher

• PROFINET and PROFIBUS networks

• BU type A0 base units

Typical System Architecture:
ET 200SP Interface Module (e.g., IM155‑6PN)
↓
6ES7132-6BD20-0BA0 Digital Output Module (4 channels, 15 mm width)
│
├── 4 x 2A Output Channels → High‑Power Actuators (Contactors, Solenoids, Valves)
├── Short‑Circuit Protection (2.8–5.2A threshold) → Reliable Fault Protection
├── Open‑Circuit Detection → Diagnostic Monitoring
│
↓
Additional ET 200SP I/O Modules (digital, analog, safety, technology)
↓
PROFINET / PROFIBUS Network → SIMATIC Controller

Related Products:

• 6ES7132-6BD20-2BA0 – Same module, pack quantity: 10 units

• 6ES7132-6BD21-0CA0 – Similar module, different configuration

• 6ES7132-6BF00-0BA0 – DQ 8x24V DC/0.5A ST (8‑channel, lower current)

• 6ES7131-6BF01-0BA0 – DI 8x24V DC Standard (digital input counterpart)

• 6ES7193-6BP00-0BA0 – BaseUnit BU15-P16+A0+2B (BU type A0)

• 6ES7193-6BP20-0BA0 – BaseUnit BU15-P16+A10+2B (BU type A0 with AUX terminals)

• 6AG1132-6BD20-2BA0 – SIPLUS ET 200SP DQ 4x24VDC/2A ST (conformal coated, extended temperature)
