6ES7132-6BF01-0AA0 ET 200SP DQ 8x24V DC/0.5A Basic | Siemens

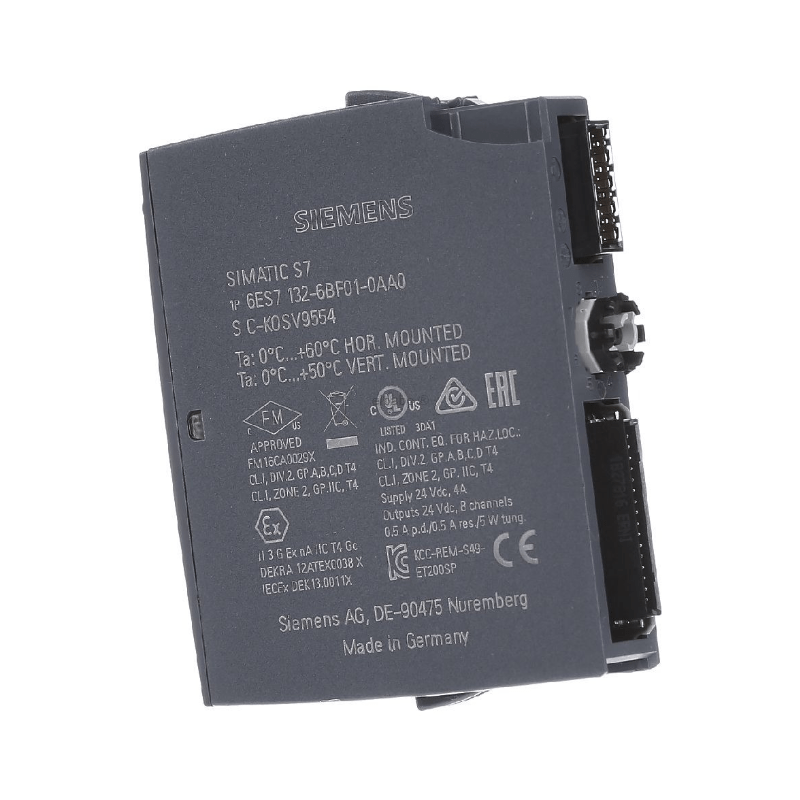

The Original New Siemens 6ES7132-6BF01-0AA0 SIMATIC ET 200SP Digital Output Module is an 8-channel digital output module for distributed I/O systems. Part of the ET 200SP family, this Basic module provides 8 sourcing outputs (PNP, P‑switching) at 24V DC / 0.5A per channel for reliable actuator control. Featuring a compact 15 mm width, substitute value output functionality, and module diagnostics for supply voltage, it is ideal for space‑constrained control cabinets requiring dependable output control.

Core Engineering Highlights:
8-channel 24V DC sourcing outputs (PNP) | 0.5A per channel | Configurable substitute value output | Diagnostics: supply voltage | 15 mm width | BU type A0 compatible | Colour code CC02 | 24V DC nominal (19.2–28.8V range) | 45 mA max current consumption (no load) | 1W typical power loss | IP20 protection | –30°C to +60°C operating (horizontal) | Multi‑hot swapping | TIA Portal V14 or higher

Key Features:

• Original New Siemens 6ES7132-6BF01-0AA0 module

• 8 digital output channels (sourcing, PNP, P‑switching)

• Output type according to IEC 61131

• Short‑circuit protection

• Substitute value output – maintains predefined output states in case of faults

• Suitable for BU type A0 base units

• Colour code CC02 for visual identification

• I&M data support (I&M0 to I&M3)

• Multi‑hot swapping for online module replacement

• Reverse polarity protection

• 15 mm width for high‑density mounting

• IP20 protection rating for indoor use

• Engineering via TIA Portal V14 or higher / STEP 7 V5.5 SP3 or higher

• Active product lifecycle

Applications:

• Actuator control for solenoid valves, relays, and contactors

• Indicator lamp and signal device control

• Machine automation and control panel I/O expansion

• Conveyor and material handling systems

• Packaging machinery and assembly lines

• Factory automation and process control systems

• High‑density output applications requiring diagnostics

Technical Specifications:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• ET 200SP interface modules (IM155‑6PN, IM155‑6MF, etc.)

• SIMATIC S7‑1200, S7‑1500, S7‑300, S7‑400 controllers

• TIA Portal engineering framework (V14 or higher)

• STEP 7 V5.5 SP3 or higher

• PROFINET and PROFIBUS networks

• BU type A0 base units

Typical System Architecture:
ET 200SP Interface Module (e.g., IM155‑6PN)
↓
6ES7132-6BF01-0AA0 Digital Output Module (8 channels, 15 mm width)
↓
Additional ET 200SP I/O Modules (digital, analog, safety, technology)
↓
Field Devices (Solenoid Valves, Relays, Contactors, Indicator Lamps)
↓
PROFINET / PROFIBUS Network → SIMATIC Controller

Related Products:

• 6ES7132-6BF00-0AA0 – DQ 8x24V DC/0.5A ST (Standard version, previous model)

• 6ES7132-6BF61-0AA0 – DQ 8x24V DC/0.5A SINK BA (sinking version)

• 6ES7132-6BH00-0AA0 – DQ 16x24V DC/0.5A BA (16-channel version)

• 6ES7132-6BH01-0BA0 – DQ 16x24V DC/0.5A ST (16-channel Standard version)

• 6ES7131-6BF01-0BA0 – DI 8x24V DC Standard (digital input counterpart)

• 6ES7193-6BP00-0BA0 – BaseUnit BU15-P16+A0+2B (BU type A0)

• 6ES7193-6BP20-0BA0 – BaseUnit BU15-P16+A10+2B (BU type A0 with AUX terminals)

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens, SIMATIC, ET 200SP, and TIA Portal are trademarks of Siemens AG.
