6ES7134-6HD01-0BA1 ET 200SP AI 4xU/I 2-Wire Standard 4AI | Siemens

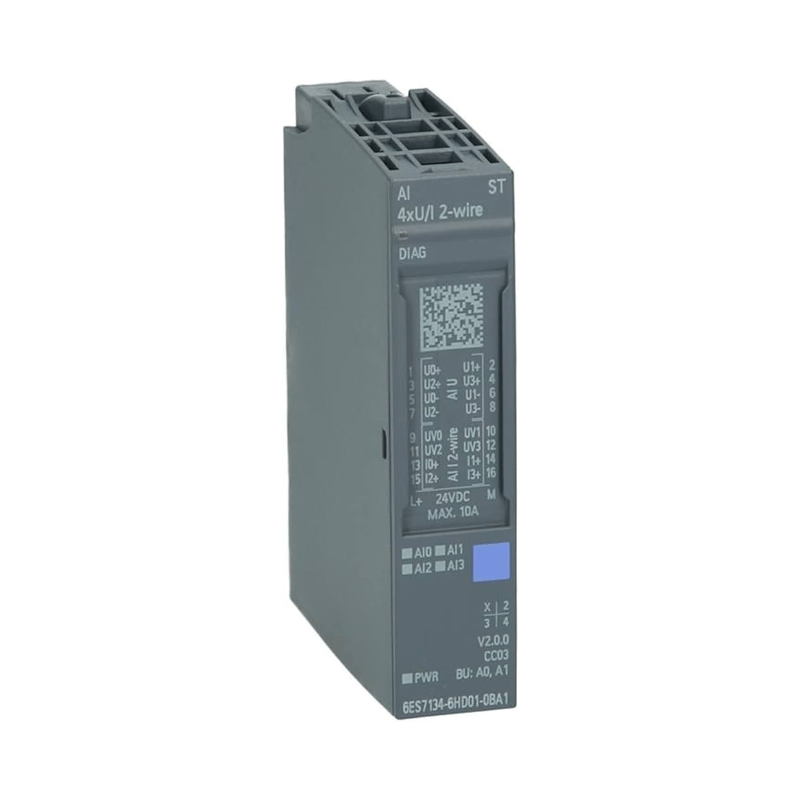

The Original New Siemens 6ES7134-6HD01-0BA1 SIMATIC ET 200SP Analog Input Module is a 4-channel analog input module for the ET 200SP distributed I/O system, designed for high-precision signal acquisition from 2-wire voltage and current sensors. Each channel supports configurable voltage (±10V, 0-10V, 1-5V, ±5V) or current (0-20mA, 4-20mA) signals with 16-bit resolution and ±0.3% accuracy. The module provides integrated module diagnostics, value status (QI), and supports up to 50 mA short-circuit protected encoder supply per channel for loop-powered transmitters. Suitable for BU type A0 and A1 with color code CC03, it enables reliable analog measurement in factory automation and process control applications.

Core Engineering Highlights:
4 analog input channels (differential) | Voltage: ±10V, 0-10V, 1-5V, ±5V | Current: 0-20mA, 4-20mA | 16-bit resolution | ±0.3% accuracy | 24V DC encoder supply (20 mA continuous, 50 mA for <10s) | Module diagnostics | Value status (QI) | BU type A0, A1 | Color code CC03 | 8 byte address space | 0.85W power loss | IP20 | –30°C to +60°C operating temperature

Key Features:

• Original New Siemens 6ES7134-6HD01-0BA1 module

• 4 differential analog input channels for 2-wire sensors

• Voltage input ranges: ±10V (16-bit incl. sign), 0-10V (15-bit), 1-5V (15-bit), ±5V (16-bit incl. sign)

• Current input ranges: 0-20mA (15-bit), 4-20mA (15-bit)

• 16-bit resolution with ±0.3% accuracy

• 24V encoder supply per channel: 20 mA continuous, 50 mA for <10s

• Integrated module diagnostics for fault detection

• Value status (QI) for each channel

• Short-circuit protected encoder supply

• 100 Ω input resistance for current inputs (+ approx. 0.7V diode forward voltage)

• 120 kΩ input resistance for voltage inputs

• Reverse polarity protection on power supply

• I&M data support (I&M0 to I&M3) for identification and maintenance

• Suitable for BU type A0 and A1 with color code CC03

• Firmware updatable

• Mechanical coding element (Type A) for secure module identification

• CE, UL, CSA, FM, RCM, KC, Marine approved

• Packing unit: 1 piece

Applications:

• Analog signal acquisition from 2-wire voltage and current sensors

• Pressure, flow, level, and temperature measurement with 4-20mA transmitters

• Machine automation and process control applications

• Factory automation distributed I/O systems

• OEM equipment requiring high-precision analog input

• Loop-powered transmitter integration (2-wire devices)

Technical Specifications:

Supply Voltage:

Current & Power:

Analog Inputs:

Input Ranges - Voltage:

Input Ranges - Current:

Address Space:

Cable Length:

Engineering:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• BU type A0 or A1 BaseUnit (e.g., 6ES7193-6BP00-0DA0, 6ES7193-6BP20-0DA0)

• ET 200SP Interface Modules (IM 155-6 PN, etc.)

• S7‑1200, S7‑1500, S7‑300, S7‑400 as PROFINET IO controller

• TIA Portal engineering framework (STEP 7 V14 or higher)

• STEP 7 V5.6 and higher (with GSD file)

Typical System Architecture:
ET 200SP Interface Module (e.g., IM 155-6 PN)
↓
BU Type A0 / A1 BaseUnit
↓
6ES7134-6HD01-0BA1 AI 4xU/I 2-Wire Standard Module
│
├── Channel 0: 4-20mA Pressure Transmitter (2-wire loop-powered)
├── Channel 1: 0-10V Level Sensor
├── Channel 2: ±10V Position Sensor
├── Channel 3: 4-20mA Flow Meter (2-wire)
│
↓
TIA Portal Configuration (V14 or higher)
↓
Process Value Monitoring via PROFINET

Related Products:

• 6ES7193-6BP00-0DA0 – BaseUnit BU15-P16+A0+2D, type A0

• 6ES7193-6BP20-0DA0 – BaseUnit BU15-P16+A10+2D, type A0

• 6ES7134-6HD01-0BA1 – AI 4xU/I 2-wire ST (current model)

• 6ES7134-6HD00-0BA1 – Predecessor version

• 6ES7134-6GD00-0BA1 – AI 4x I 2-/4-wire standard (current input only)

• 6ES7134-6HB00-0DA1 – AI 2xU/I 2-/4-wire High Speed

• 6ES7134-6JF00-0CA1 – AI 8xRTD/TC High Feature (temperature inputs)

• SIPLUS ET 200SP AI 4xU/I 2-wire ST – Extreme temperature version (–40°C to +70°C) with conformal coating
