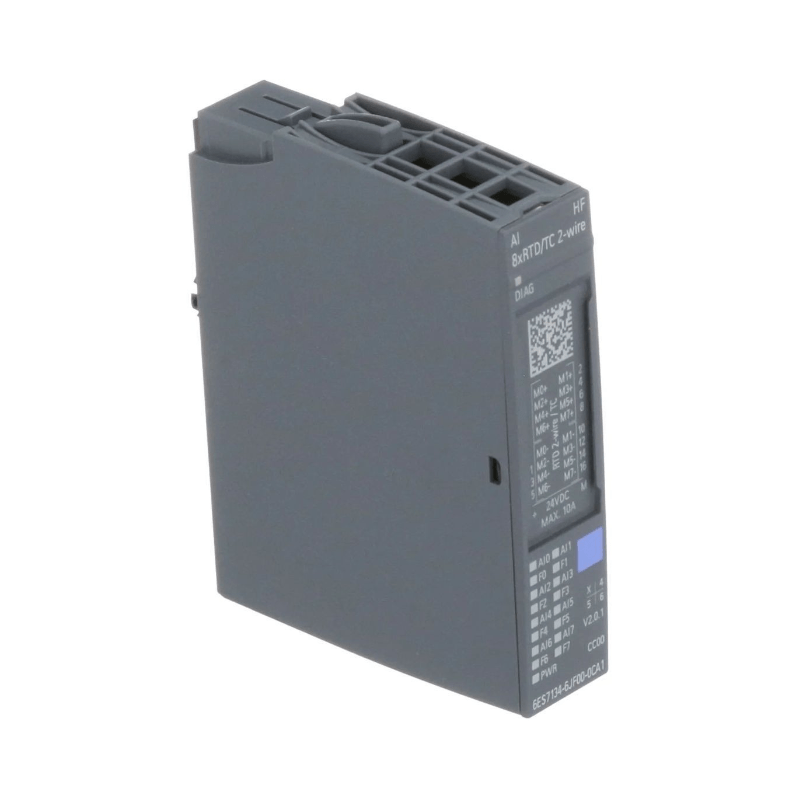

6ES7134-6JF00-0CA1 ET 200SP AI 8xRTD/TC 2-Wire HF 8AI | Siemens

The Original New Siemens 6ES7134-6JF00-0CA1 SIMATIC ET 200SP Analog Input Module is an 8‑channel high‑feature (HF) analog input module designed for high‑precision temperature measurement in distributed I/O systems. Supporting both resistance thermometers (RTD) and thermocouples (TC) with 2‑wire connection, it delivers 16‑bit resolution with ±0.1% accuracy and per‑channel diagnostics. The module is suitable for BU type A0 and A1 with color code CC00. It is ideal for multi‑zone temperature monitoring in industrial automation, process control, and machine building applications. Part of the ET 200SP distributed I/O system, it seamlessly integrates with PROFINET and PROFIBUS networks via SIMATIC S7‑1500, S7‑1200, and other IO controllers.

Core Engineering Highlights:
8 analog inputs for RTD/TC (2‑wire) | 16‑bit resolution incl. sign | ±0.1% accuracy | Supports thermocouples (B, C, E, J, K, L, N, R, S, T, U, TXK/TXK(L) GOST) and RTDs (Pt100, Pt1000, Ni100, Ni1000, Cu10) | 2 mA constant measurement current | Channel diagnostics | BU type A0, A1 | Color code CC00 | 24V DC | 35 mA max current consumption | 0.75 W power loss | 16 byte address space + QI | IP20 | –30°C to +60°C operating temperature | Firmware updatable | TIA Portal V16 / V17 / V18 configurable

Key Features:

• Original New Siemens 6ES7134-6JF00-0CA1 module

• 8 analog input channels for 2‑wire RTD and thermocouple sensors

• 16‑bit resolution including sign for high‑precision measurement

• ±0.1% accuracy for reliable temperature acquisition

• Supports a wide range of thermocouple types: B, C, E, J, K, L, N, R, S, T, U, TXK/TXK(L) GOST

• Supports RTD sensors: Pt100, Pt1000, Ni100, Ni1000, Cu10

• Voltage input ranges: ±1V, ±250mV, ±80mV, ±50mV

• Per‑channel diagnostics for fault detection and troubleshooting

• 2 mA constant measurement current for resistance‑type transmitters

• Scalable measuring range for flexible configuration

• Configurable interference frequency suppression: 16.6 / 50 / 60 Hz

• Integrated I&M data support (I&M0 to I&M3) for identification and maintenance

• Suitable for BU type A0 and A1 with color code CC00

• Reverse polarity protection on power supply

• Firmware updatable

• Mechanical coding element (Type A) for secure module identification

• Configuration in RUN (CiR) – reparameterization and calibration possible in RUN

• CE, UL, CSA, FM, RCM, KC, Marine approved

Applications:

• Multi‑zone temperature monitoring in industrial furnaces and ovens

• Process temperature measurement with thermocouples and RTDs

• Machine condition monitoring (bearings, windings, hydraulic systems)

• HVAC and building automation temperature sensing

• Food and beverage processing temperature control

• Pharmaceutical and chemical process temperature monitoring

• OEM equipment requiring high‑precision temperature input

• Factory automation distributed I/O systems with ET 200SP

Technical Specifications:

Supply Voltage:

Current & Power:

Analog Inputs:

Input Ranges – Thermocouples:

Input Ranges – RTD:

Input Ranges – Voltage:

Address Space:

Cable Length:

Physical & Environmental:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• BU type A0 or A1 BaseUnit (e.g., 6ES7193-6BP00-0DA0, 6ES7193-6BP20-0DA0)

• ET 200SP Interface Modules (IM 155-6 PN, IM 155-6 DP)

• S7‑1500, S7‑1200, S7‑300, S7‑400 as PROFINET/PROFIBUS IO controller

• TIA Portal engineering framework: V16, V17, V18 (HSP required for earlier versions)

• STEP 7 V5.5 SP3 / SP4 (with GSD file)

• PCS 7 V8.1 SP1

• PROFIBUS GSD: Revision 3 and 5 and higher

• PROFINET GSD: GSDML V2.35

Typical System Architecture:
ET 200SP Interface Module (e.g., IM 155-6 PN)
↓
BU Type A0 / A1 BaseUnit
↓
6ES7134-6JF00-0CA1 AI 8xRTD/TC 2-Wire HF Module
│
├── Channel 0: Thermocouple Type K (2-wire)
├── Channel 1: Pt100 RTD (2-wire)
├── Channel 2: Thermocouple Type J (2-wire)
├── Channel 3: Ni1000 RTD (2-wire)
├── Channel 4-7: Additional RTD/TC sensors (2-wire)
│
↓
TIA Portal Configuration (V16 / V17 / V18)
↓
High-Precision Temperature Monitoring via PROFINET / PROFIBUS

Related Products:

• 6ES7193-6BP00-0DA0 – BaseUnit BU15-P16+A0+2D, type A0

• 6ES7193-6BP20-0DA0 – BaseUnit BU15-P16+A10+2D, type A0

• 6ES7134-6JD00-0CA1 – AI 4xRTD/TC 2/3/4-wire HF (4 channels, supports 2/3/4-wire RTD)

• 6ES7134-6GD00-0BA1 – AI 4xI 2-/4-wire Standard (4 current inputs)

• 6ES7134-6HB00-0DA1 – AI 2xU/I High Speed (2 high-speed analog inputs)

• 6ES7134-6PA00-0BD0 – AI Energy Meter

• SIPLUS ET 200SP AI 8xRTD/TC 2-wire HF – Extreme temperature version (–40°C to +70°C) with conformal coating

PLC ERA is an independent industrial automation distributor supplying 100% genuine Original New products through established global supply channels. Siemens and SIMATIC are trademarks of Siemens AG.
