6ES7136-6BA00-0CA0 ET 200SP F-DI 8x24V DC HF Failsafe Input SIL3/PL e | Siemens

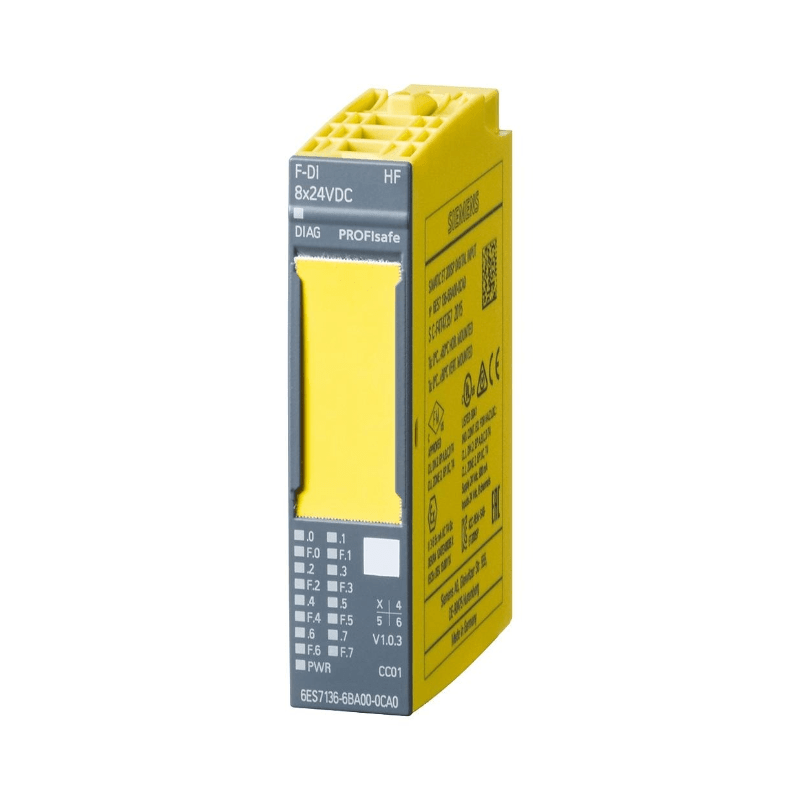

The Original New Siemens 6ES7136-6BA00-0CA0 SIMATIC ET 200SP F-DI 8x24V DC HF is a high-feature failsafe digital input module designed for safety-related distributed I/O applications. Part of the ET 200SP family, this module provides 8 configurable sinking inputs for 24V DC signals (PNP, P-reading), certified up to PL e (ISO 13849-1) and SIL 3 (IEC 61508). Featuring a compact 15 mm width, per-channel diagnostics, integrated sensor supply with short-circuit protection, and PROFIsafe communication, it is ideal for safety-critical applications including emergency stop systems, light curtains, and safety door monitoring.

Core Engineering Highlights:
8-channel 24V DC failsafe sinking inputs (PNP, P-reading) | PL e (ISO 13849-1) / SIL 3 (IEC 61508) | PROFIsafe communication | 8 sensor power outputs with short-circuit protection (800 mA total, 300 mA per channel max) | Configurable input delay 0.4–20 ms | 15 mm width | BU type A0 compatible | Colour code CC01 | 24V DC nominal (19.2–28.8V range) | 75 mA rated current consumption | 2 W typical power loss | IP20 protection | –30°C to +60°C operating (horizontal)

Key Features:

• Original New Siemens 6ES7136-6BA00-0CA0 module

• 8 failsafe digital input channels (sinking, PNP, P-reading)

• Certified safety integrity: SIL 3 (IEC 61508), PL e (ISO 13849-1)

• PROFIsafe communication protocol for fail-safe data exchange

• Input characteristic curve type 1 per IEC 61131

• Configurable input delay: 0.4 to 20 ms (per channel)

• 8 integrated sensor power outputs — 24V encoder supply with electronic short-circuit protection (response threshold 0.7A to 1.8A)

• Per-channel sensor supply current: 300 mA max; total module: 800 mA max

• Suitable for BU type A0 base units

• Colour code CC01 for visual identification

• I&M data support (I&M0 to I&M3)

• 15 mm width for high-density mounting

• DIN rail mounting, IP20 protection

• Reverse polarity protection

• Diagnostic LED indicators: RUN (green), ERROR (red), PWR (green), per-channel status (green), per-channel diagnostics (red)

• Engineering via TIA Portal V12 or higher / STEP 7 V5.5 SP3 or higher

• Active product lifecycle (commercialized)

Applications:

• Emergency stop (E‑Stop) and safety shutdown systems

• Safety gate and protective door monitoring

• Light curtain and safety sensor interfaces (with 1oo1 or 1oo2 evaluation)

• Robot cell safety zone monitoring

• Safety-critical machine control requiring SIL 3 / PL e integrity

• Conveyor and material handling safety systems

• Industrial machinery safety interlock circuits

Technical Specifications:

Safety Ratings:

Power Supply:

Encoder Supply:

Digital Inputs:

Address Space:

Diagnostics & Indication:

Physical & Environmental:

Engineering & Configuration:

System Compatibility:

• Siemens SIMATIC ET 200SP distributed I/O system

• ET 200SP interface modules (IM155-6PN, IM155-6MF, etc.) with PROFIsafe support

• PROFIsafe communication protocol

• SIMATIC S7-1200F, S7-1500F, S7-300F, S7-400F failsafe controllers

• TIA Portal engineering framework (V12 or higher)

• STEP 7 V5.5 SP3 or higher

• BU type A0 base units

Typical System Architecture:
ET 200SP Interface Module (e.g., IM155-6PN)
↓
6ES7136-6BA00-0CA0 F-DI 8x24V DC HF Module (15 mm width)
│
├── 8 x 24V DC Failsafe Inputs (PNP, P-reading)
│ ├── 1oo1 or 1oo2 sensor evaluation
│ └── Configurable input delay (0.4–20 ms)
├── 8 x 24V Sensor Power Outputs (300 mA/channel, 800 mA total)
│ └── Electronic Short-Circuit Protection (0.7A–1.8A threshold)
├── PROFIsafe Communication → Failsafe Controller
├── Per-Channel Diagnostics → Status / Fault LEDs
│
↓
PROFINET Network with PROFIsafe → SIMATIC F-Controller (S7-1500F / S7-1200F)

Related Products:

• 6ES7136-6BA01-0CA0 – F-DI 8x24V DC HF (successor version)

• 6ES7136-6DB00-0CA0 – F-DQ 4x24V DC/2A PM HF (failsafe output counterpart)

• 6ES7136-6DC00-0CA0 – F-DQ 4x24V DC/2A PP HF (failsafe output counterpart)

• 6ES7193-6BP00-0BA0 – BaseUnit BU15-P16+A0+2B (BU type A0)

• 6ES7193-6BP20-0BA0 – BaseUnit BU15-P16+A10+2B (BU type A0 with AUX terminals)

• 6AG1136-6BA00-7CA0 – SIPLUS ET 200SP F-DI 8x24V DC HF (conformal coated, extended temperature)
